Laser Line Polarizing Beamsplitter Cube | SIMTRUM Photonics Store

Products / Optics /Beamsplitters /Beamsplitter Cube /Laser Line Polarizing Beamsplitter Cube /

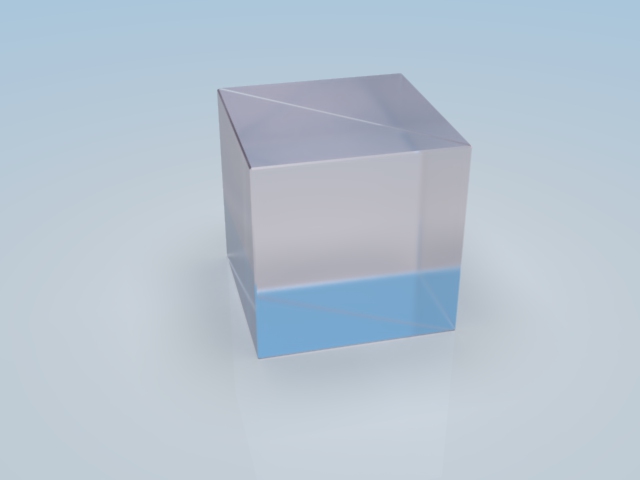

Laser Line Polarizing Beamsplitter Cube

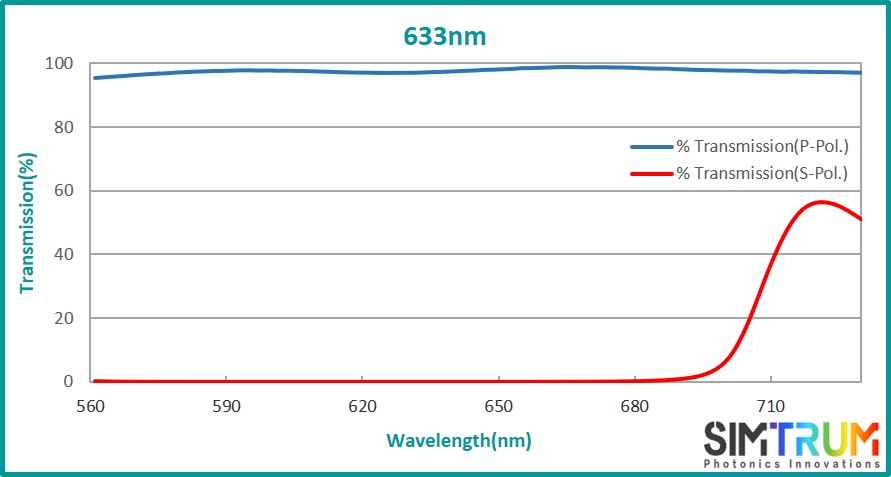

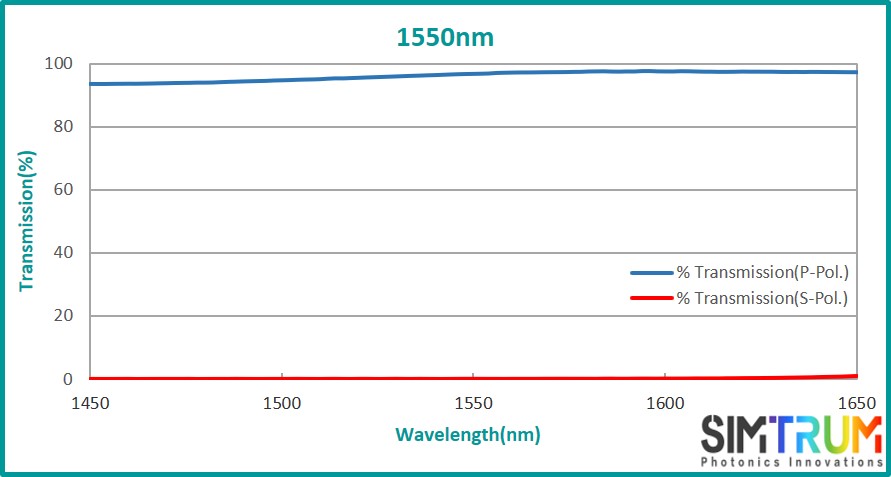

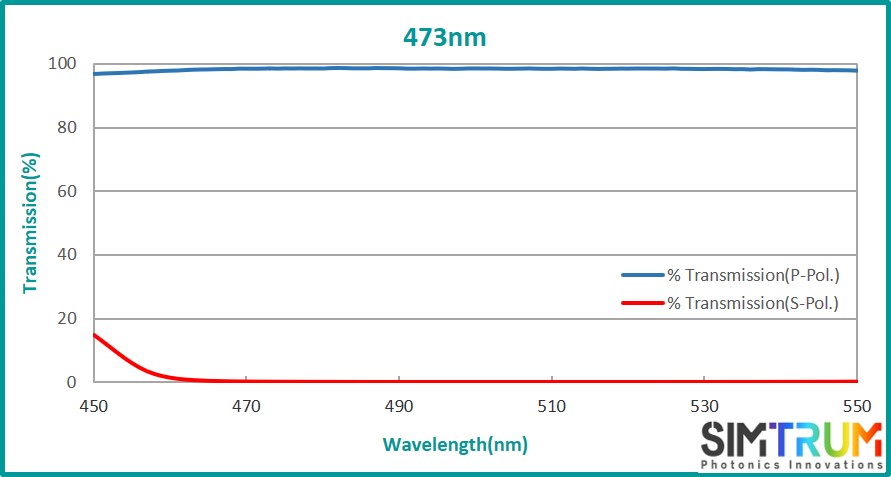

Overview Coating Graph Order Now!

Laser Line Polarizing Beamsplitter Cube, Beamsplitter Cube www.simtrum.com

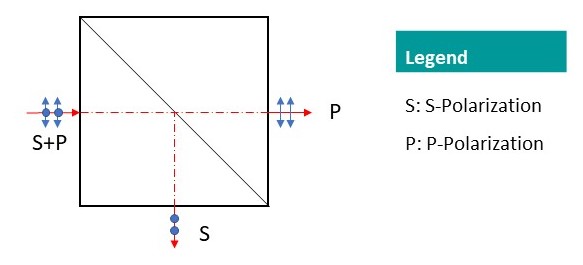

Laser Line Polarization Beamsplitter Cube is used to cut off laser beams of a targeted wavelength. As it is a polarizing beamsplitter, the polarization of the outgoing beams remains the same when the incoming beam is a varied polarized light. Being partial-reflective coated mirrors, but often used with the incident of angle at 45°, cube beam splitters consist of a thin cube of optical glass with a different type of coatings.


BK7 is the most common optical glass used in high-quality optical components as it is a hard glass that can withstand a variety of physical and chemical exposure. Relatively scratch and chemical resistant, it has a low bubble and inclusion content, therefore making it an ideal choice for precision lenses. It is the ideal choice for general purpose visual and NIR applications as it has excellent transmission.


General Specifications

Material

BK 7

Type

Laser Line Polarization Beamsplitter Cube

Dimensional Tolerance(mm)

±0.2

Surface Quality

40/20

Clear Aperture

>90%

Surface Flatness

<λ/4@633nm

Transmitted Beam Deviation(arcmin)

<3

Reflected Beam Deviation(arcmin)

<3

Angle of Incidence(degree)

0

Extinction Ratio

Tp/Ts>1000:1

Chamfer

0.5mmx45°

Damage Threshold(pulsed)

7.5J/cm²(10ns 10Hz)

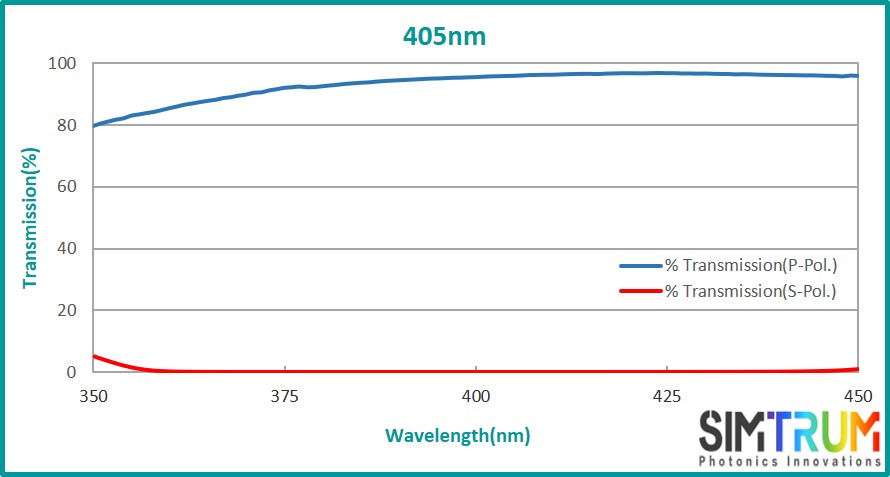

Laser Line Polarization Beamsplitter Cube@405nmLaser Line Polarization Beamsplitter Cube@473nm

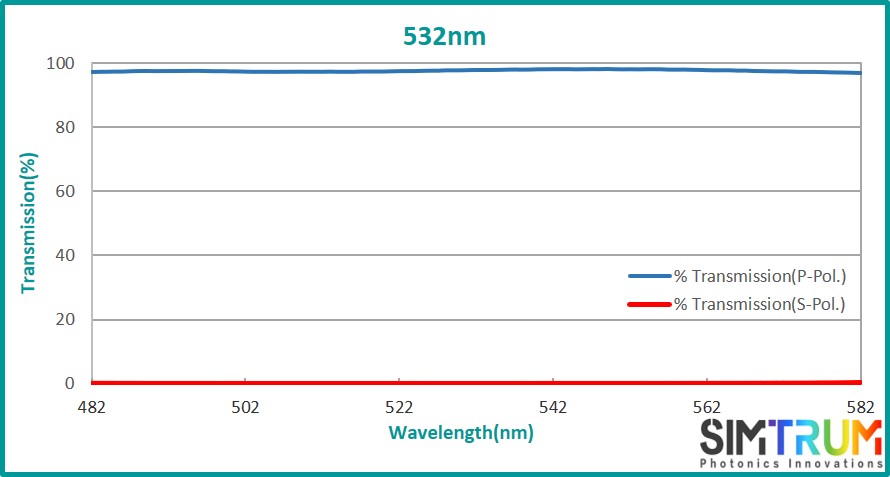

Laser Line Polarization Beamsplitter Cube@532nmLaser Line Polarization Beamsplitter Cube@633nm

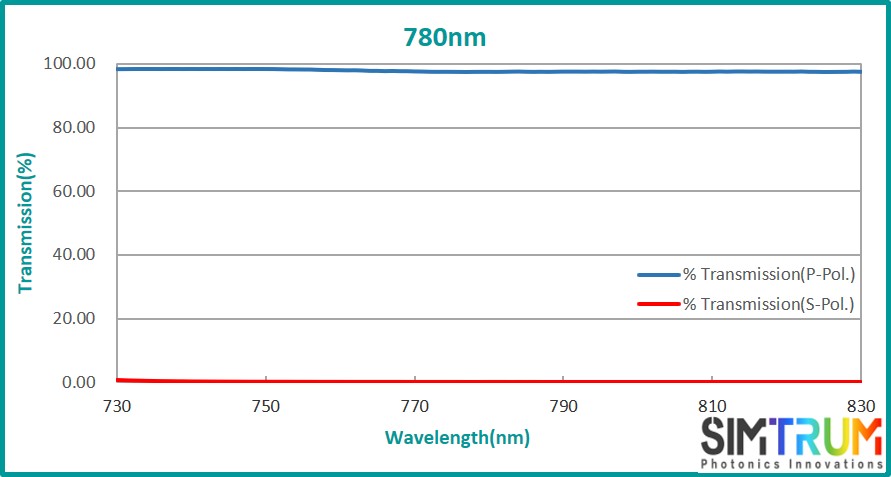

Laser Line Polarization Beamsplitter Cube@780nmLaser Line Polarization Beamsplitter Cube@866nm

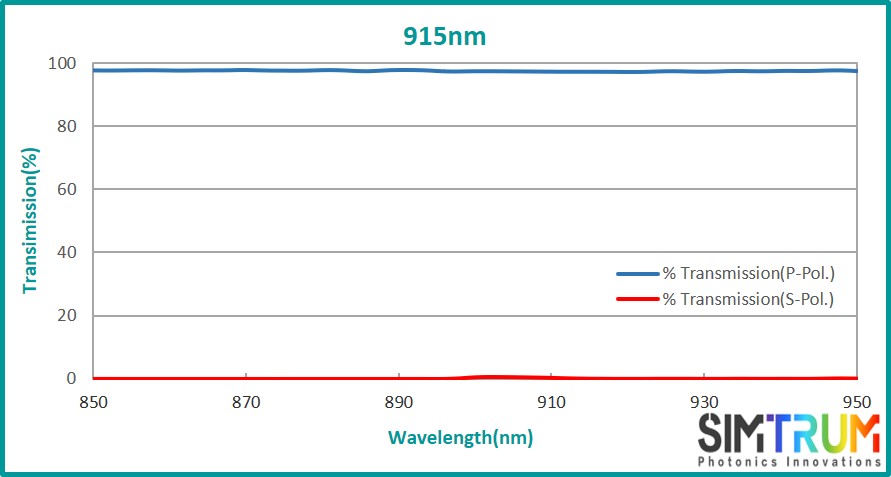

Laser Line Polarization Beamsplitter Cube@915nm9Laser Line Polarization Beamsplitter Cube@980nm

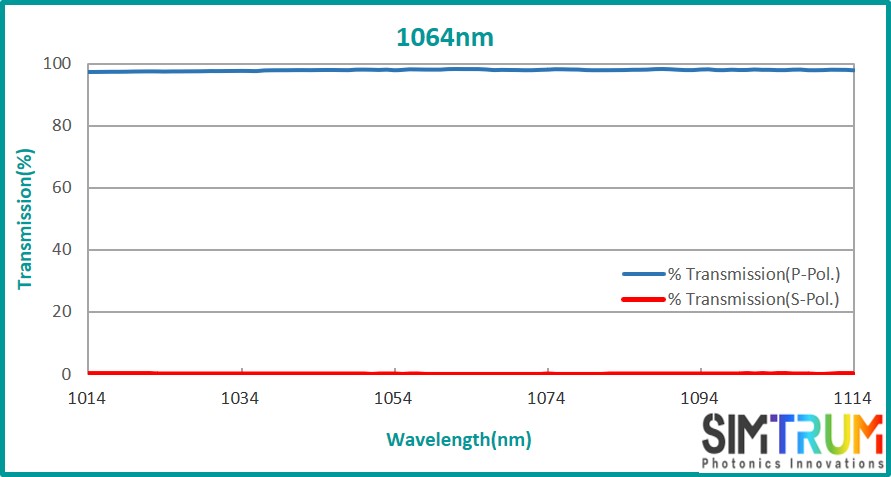

Laser Line Polarization Beamsplitter Cube@1064nmLaser Line Polarization Beamsplitter Cube@1550nm



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Dimension (A=B=C) (mm)

Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Extinction Ratio Wavelength (nm) Dimension (A=B=C) (mm) Availability Reference Price
(USD)
BK7-LPBSC-10-1064
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 1064nm 		Tp/Ts>1000:1106410 In Stock Request for quote
BK7-LPBSC-10-1550
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 1550nm 		Tp/Ts>1000:1155010 In Stock Request for quote
BK7-LPBSC-10-405
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 405nm 		Tp/Ts>1000:140510 In Stock Request for quote
BK7-LPBSC-10-473
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 473nm 		Tp/Ts>1000:147310 In Stock Request for quote
BK7-LPBSC-10-532
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 532nm 		Tp/Ts>1000:153210 In Stock Request for quote
BK7-LPBSC-10-633
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 633nm 		Tp/Ts>1000:163310 In Stock Request for quote
BK7-LPBSC-10-780
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 780nm 		Tp/Ts>1000:178010 In Stock Request for quote
BK7-LPBSC-10-860
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 866nm 		Tp/Ts>1000:186610 In Stock Request for quote
BK7-LPBSC-10-915
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 915nm 		Tp/Ts>1000:191510 In Stock Request for quote
BK7-LPBSC-10-980
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=10mm, Coating: Ravg < 0.5% @ 980nm 		Tp/Ts>1000:198010 In Stock Request for quote
BK7-LPBSC-12.7-1064
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 1064nm 		Tp/Ts>1000:1106412.7 In Stock Request for quote
BK7-LPBSC-12.7-1550
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 1550nm 		Tp/Ts>1000:1155012.7 In Stock Request for quote
BK7-LPBSC-12.7-405
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 405nm 		Tp/Ts>1000:140512.7 In Stock Request for quote
BK7-LPBSC-12.7-473
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 473nm 		Tp/Ts>1000:147312.7 In Stock Request for quote
BK7-LPBSC-12.7-532
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 532nm 		Tp/Ts>1000:153212.7 In Stock Request for quote
BK7-LPBSC-12.7-633
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 633nm 		Tp/Ts>1000:163312.7 In Stock Request for quote
BK7-LPBSC-12.7-780
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 780nm 		Tp/Ts>1000:178012.7 In Stock Request for quote
BK7-LPBSC-12.7-860
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 866nm 		Tp/Ts>1000:186612.7 In Stock Request for quote
BK7-LPBSC-12.7-915
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 915nm 		Tp/Ts>1000:191512.7 In Stock Request for quote
BK7-LPBSC-12.7-980
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% @ 980nm 		Tp/Ts>1000:198012.7 In Stock Request for quote
BK7-LPBSC-20-1064
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 1064nm 		Tp/Ts>1000:1106420 In Stock Request for quote
BK7-LPBSC-20-1550
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 1550nm 		Tp/Ts>1000:1155020 2-3 Weeks Request for quote
BK7-LPBSC-20-405
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 405nm 		Tp/Ts>1000:140520 2-3 Weeks Request for quote
BK7-LPBSC-20-473
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 473nm 		Tp/Ts>1000:147320 2-3 Weeks Request for quote
BK7-LPBSC-20-532
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 532nm 		Tp/Ts>1000:153220 2-3 Weeks Request for quote
BK7-LPBSC-20-633
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 633nm 		Tp/Ts>1000:163320 2-3 Weeks Request for quote
BK7-LPBSC-20-780
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 780nm 		Tp/Ts>1000:178020 2-3 Weeks Request for quote
BK7-LPBSC-20-860
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 866nm 		Tp/Ts>1000:186620 2-3 Weeks Request for quote
BK7-LPBSC-20-915
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 915nm 		Tp/Ts>1000:191520 2-3 Weeks Request for quote
BK7-LPBSC-20-980
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=20mm, Coating: Ravg < 0.5% @ 980nm 		Tp/Ts>1000:198020 2-3 Weeks Request for quote
BK7-LPBSC-25.4-1064
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 1064nm 		Tp/Ts>1000:1106425.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-1550
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 1550nm 		Tp/Ts>1000:1155025.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-405
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 405nm 		Tp/Ts>1000:140525.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-473
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 473nm 		Tp/Ts>1000:147325.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-532
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 532nm 		Tp/Ts>1000:153225.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-633
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 633nm 		Tp/Ts>1000:163325.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-780
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 780nm 		Tp/Ts>1000:178025.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-860
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 866nm 		Tp/Ts>1000:186625.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-915
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 915nm 		Tp/Ts>1000:191525.4 2-3 Weeks Request for quote
BK7-LPBSC-25.4-980
BK7, Laser Line Pol Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% @ 980nm 		Tp/Ts>1000:198025.4 2-3 Weeks Request for quote
BK7-LPBSC-5-1310
BK7, Laser Line Pol Beamsplitter Cube, Dimensions=5mm, Coating: Ravg < 0.5% @ 1310nm 		Tp/Ts>1000:113105 2-3 Weeks Request for quote

BK7-LPBSC-5-1310 - Parameter

Type
Laser Line Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1310nm

Wavelength (nm)
1310

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
5

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-980 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 980nm

Wavelength (nm)
980

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-915 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 915nm

Wavelength (nm)
915

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-860 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 866nm

Wavelength (nm)
866

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-780 - Parameter

Type
Laser Line Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-633 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-532 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-473 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 473nm

Wavelength (nm)
473

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-405 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 405nm

Wavelength (nm)
405

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-1550 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1550nm

Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-25.4-1064 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1064nm

Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Reflected Beam Deviation (arcmin)
<3

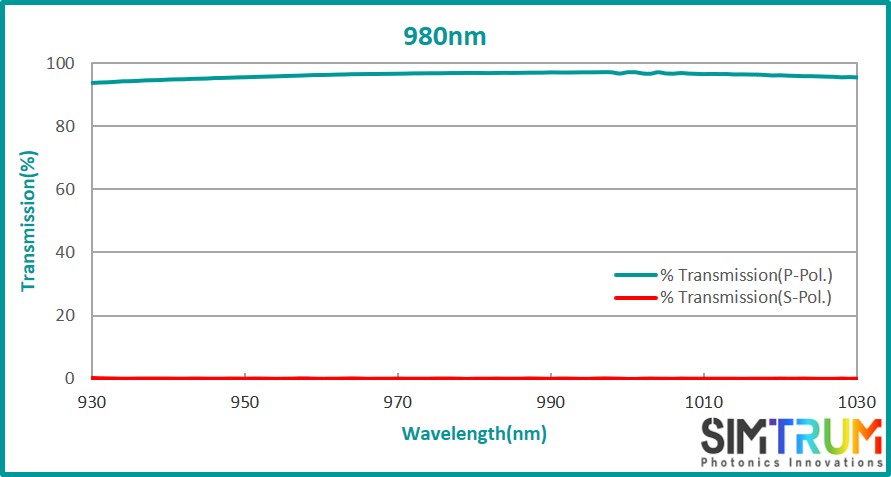

BK7-LPBSC-20-980 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 980nm

Wavelength (nm)
980

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-915 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 915nm

Wavelength (nm)
915

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

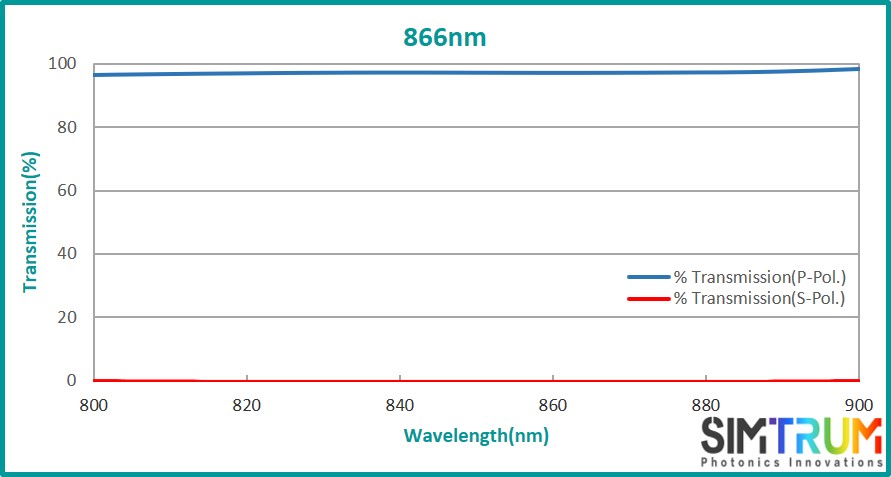

BK7-LPBSC-20-860 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 866nm

Wavelength (nm)
866

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-780 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-633 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-532 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-473 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 473nm

Wavelength (nm)
473

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-405 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 405nm

Wavelength (nm)
405

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-1550 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1550nm

Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-20-1064 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1064nm

Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-980 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 980nm

Wavelength (nm)
980

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-915 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 915nm

Wavelength (nm)
915

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-860 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 866nm

Wavelength (nm)
866

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-780 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-633 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-532 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-473 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 473nm

Wavelength (nm)
473

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-405 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 405nm

Wavelength (nm)
405

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-1550 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1550nm

Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-12.7-1064 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1064nm

Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-980 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 980nm

Wavelength (nm)
980

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-915 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 915nm

Wavelength (nm)
915

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-860 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 866nm

Wavelength (nm)
866

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-780 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-633 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-532 - Parameter

Type
Laser Line Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-473 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 473nm

Wavelength (nm)
473

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-405 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 405nm

Wavelength (nm)
405

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-1550 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1550nm

Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-10-1064 - Parameter

Type
Laser Line Polarization Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1064nm

Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Reflected Beam Deviation (arcmin)
<3

BK7-LPBSC-5-1310 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-980 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-915 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-860 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-780 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-633 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-532 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-473 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-405 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-1550 - Download

Download

Download

Download

Download

BK7-LPBSC-25.4-1064 - Download

Download

Download

Download

Download

BK7-LPBSC-20-980 - Download

Download

Download

Download

Download

BK7-LPBSC-20-915 - Download

Download

Download

Download

Download

BK7-LPBSC-20-860 - Download

Download

Download

Download

Download

BK7-LPBSC-20-780 - Download

Download

Download

Download

Download

BK7-LPBSC-20-633 - Download

Download

Download

Download

Download

BK7-LPBSC-20-532 - Download

Download

Download

Download

Download

BK7-LPBSC-20-473 - Download

Download

Download

Download

Download

BK7-LPBSC-20-405 - Download

Download

Download

Download

Download

BK7-LPBSC-20-1550 - Download

Download

Download

Download

Download

BK7-LPBSC-20-1064 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-980 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-915 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-860 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-780 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-633 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-532 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-473 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-405 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-1550 - Download

Download

Download

Download

Download

BK7-LPBSC-12.7-1064 - Download

Download

Download

Download

Download

BK7-LPBSC-10-980 - Download

Download

Download

Download

Download

BK7-LPBSC-10-915 - Download

Download

Download

Download

Download

BK7-LPBSC-10-860 - Download

Download

Download

Download

Download

BK7-LPBSC-10-780 - Download

Download

Download

Download

Download

BK7-LPBSC-10-633 - Download

Download

Download

Download

Download

BK7-LPBSC-10-532 - Download

Download

Download

Download

Download

BK7-LPBSC-10-473 - Download

Download

Download

Download

Download

BK7-LPBSC-10-405 - Download

Download

Download

Download

Download

BK7-LPBSC-10-1550 - Download

Download

Download

Download

Download

BK7-LPBSC-10-1064 - Download

Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
