Phase Modulators

Phase Modulators

Modulator for laser interference, frequency stabilization, atomic cooling and other precision optical systems.

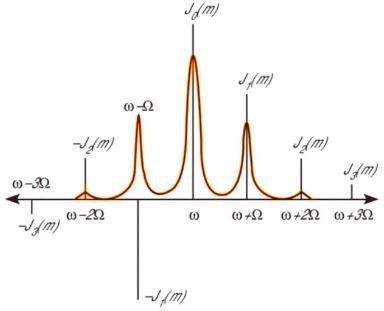

A phase modulator is a modulation device developed based on the electro-optic effect and high-frequency resonator theory, which can phase modulate polarized light. It is often used in precision optics systems such as laser interference, optical frequency combs, laser frequency stabilization, atomic cooling, and the quantum state controlling. When an electrical signal of a specific frequency is injected into the high-frequency resonant cavity, the electromagnetic wave will be continuously reflected in the cavity to form a standing wave, resulting in electromagnetic resonance. The electro-optic crystal produces a birefringence effect under the action of electromagnetic resonance, which eventually leads to the phase change of the light. Our modulators use a variety of electro-optical crystals such as MLN, DKDP, KTP, LT, etc. The wavelength covers 350-3000 nm, the frequency covers 1-4 GHz, and the modulation depth is up to 2 π rad.





Applications

Laser frequency stabilization

Laser interference

Optical frequency comb

Atomic cooling

Quantum state control
















Product specifications and Brochures

Product Brochure Link:


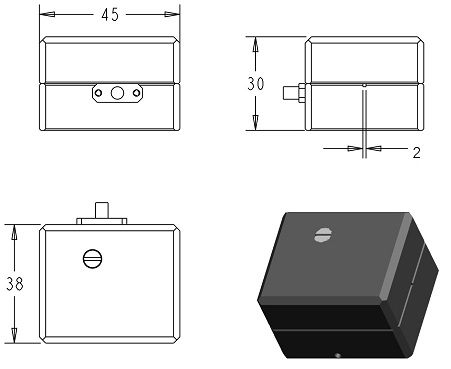

General Specifications
Interaction MaterialMLN / KDP / DKDP
Operating Wavelength280 ~ 960 nm
PolarizationLinear, horizontal
Transmission> 98% ~ 99.2%
Active Aperture*2 mm / 3mm
Center Frequency (Fc)132 kHz ~ 3.07 GHz
Max Modulation Depth1  πrad ~ 1.5  πrad
Shell MaterialAluminium alloy
CoolingConduction-cooled

*   The beam diameter is recommended to be less than 70% of the clear aperture.


Ordering Information

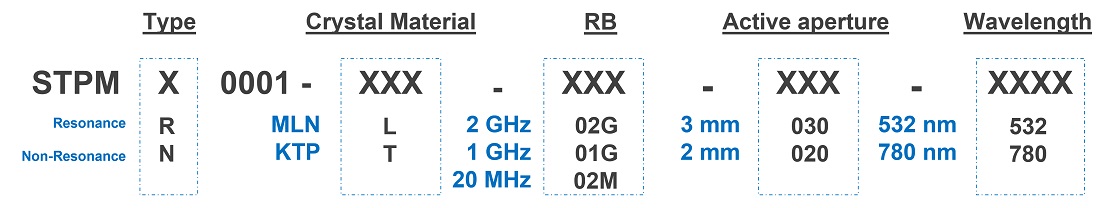

Product CodeWavelengthActive Aperture*Operating FrequencyOptical MaterialMAX Modulation DepthCooling
STPMR0001-L03G-030-780780 nm3 mm2.5 GHzMLN1 πradConduction-cooled
STPMR0002-K01G-030-280280 nm3 mm1.2 GHzKDP1 πradConduction-cooled
STPMR0003-L02G-020-532532 nm2 mm1.8 GHzMLN1 πradConduction-cooled
STPMR0012-L03G-030-935935 nm3 mm3.07 GHzMLN1.5 πradConduction-cooled
STPMR0005-L02G-020-370370 nm2 mm1.75 GHzMLN1.5 πradConduction-cooled
STPMR0013-L02M-030-780780 nm3 mm25 MHzMLN1.2 πradConduction-cooled
STPMN0003-L00M-030-461461 nm3 mm132 kHzMLN1 πradConduction-cooled
STPMR0017-L02M-030-650650 nm2 mm20 MHzMLN1.3 πradConduction-cooled
STPMR0006-D20M-030-355355 nm3 mm20 MHzDKDP1 πradConduction-cooled
STPMR0007-L42M-030-355960 nm3 mm42 MHzMLN1 πradConduction-cooled
STPMR0014-L02M-030-420420 nm2 mm25 MHzMLN1.4 πradConduction-cooled

*   The beam diameter is recommended to be less than 70% of the clear aperture.



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.
