Polymer Integrating Spheres SP20/ SP50/ SP100 | SIMTRUM Photonics Store

Products / Light Analysis /Optical Power Meter (Photodiode) /Integrating Spheres (10mm-100mm) /High Power Polymer Integrating Spheres (20-100mm) /
High Power Polymer Integrating Spheres (20-100mm)
Overview Selection Guide Related Product Order Now!

Product Brochure: Integrating-sphere_Polymer_Engl

Modal Selection Guide


SP20SP50SP100

High Power Handling

 up to 500mW (CW with internal photodiode)

 or 20W (CW with external photodiode)

up to 5W (CW with internal photodiode)

or 40W (CW with external photodiode)

up to 20W (CW with internal photodiode)

or 100W (CW with external photodiode)

High Power Density

 100W/cm² 100W/cm² 100W/cm²

Input Port Diameter

 - 12.5mm 25mm

Sphere Diameter

 20mm 50mm
 100mm
Compatibility

with OPM150 or OPM500 optical power monitors

via optical fiber or photodiode

with OPM150 or OPM500 power meters via optical fibre or photodiode

use with OPM150 or OPM500 power meters via optical fibre or photodiode

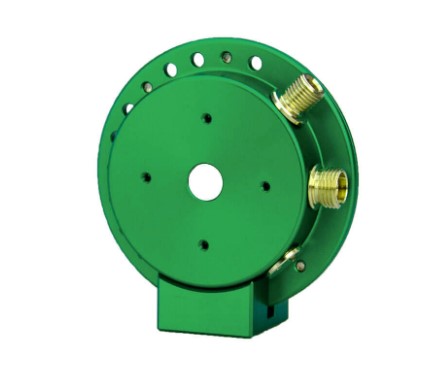

The Polymer Integrating Spheres SP20

designed for high power measurements, as it enables the monitoring of power fluctuations on a time scale of µs (for comparison thermopiles: 1s at best), very advantageous e.g., when setting up high power CW lasers.It is also machined from solid material – not coated to allow perfect measuring of laser power in the visible to NIR. Our polymer integrating spheres are machined from solid material – not coated. The robust devices are perfect for measuring laser power in the visible to NIR. We offer a wide range of sizes from 10mm to 100mm. The smaller sizes are compatible with our OPM150 series of power meters. Just plug it in to your USB port and start measuring!


Specifications

-Reflective material: Ultrawhite polymer

-Sphere diameter: 20mm

-Cooling: Convection

-SMA and FC fibre ports, photodiode ports

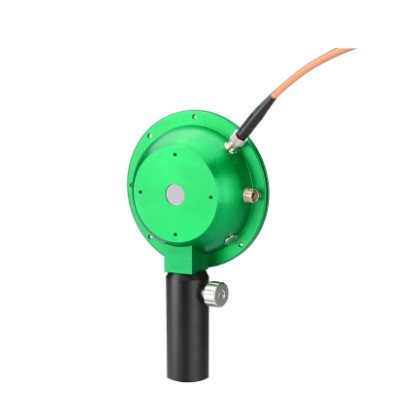

The Polymer Integrating Spheres SP50

is designed to enable the monitoring of power fluctuations on a time scale of µs (for comparison thermopiles: 1s at best),

very advantageous e.g. when setting up high power CW lasers. It is also machined from solid material – not coated to

allow perfect measuring of laser power in the visible to NIR. Our polymer integrating spheres are machined from solid

material – not coated. The robust devices are perfect for measuring laser power in the visible to NIR. We offer a wide

range of sizes from 10mm to 100mm. The smaller sizes are compatible with our OPM150 series of power meters. Just

plug it in to your USB port and start measuring!


Specifications

-Reflective material: Ultrawhite polymer

-Sphere diameter: 50mm  |  Input port diameter: 12.5mm | Max. power: 5W

-Cooling: Convection

-SMA fibre port  -FC fibre port  -Photodiode port

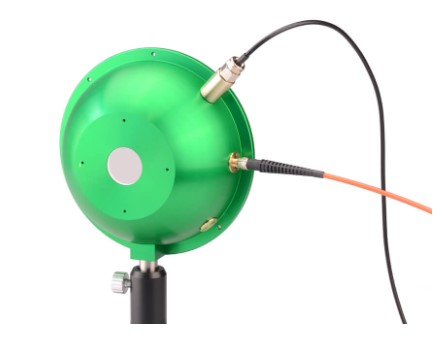

The Polymer Integrating Spheres SP100

is designed to enable the monitoring of power fluctuations on a time scale of µs (for comparison thermopiles: 1s at best), very advantageous e.g. when setting up high power CW lasers. It is also machined from solid material – not coated to allow perfect measuring of laser power in the visible to NIR. Our polymer integrating spheres are machined from solid material – not coated. The robust devices are perfect for measuring laser power in the visible to NIR. We offer a wide range of sizes from 10mm to 100mm. The smaller sizes are compatible with our OPM150 series of power meters. Just plug it in to your USB port and start measuring!


Specifications

-Reflective material: Ultrawhite polymer

-Sphere diameter: 100mm |  Input port diameter: 25mm  | Max. power: 20W

-Cooling: Convection

-SMA and FC fibre ports, photodiode ports


*The 50mm and 100mm spheres have modular ports with choice of SMA and FC fibre receptacles or photodiode. These spheres may be calibrated upon request.



The high reflectivity and lambertian diffusivity of the polymer we use ensures wide band efficiency over the

full range of 250-2500nm. These integrating spheres can be used for optical power measurement as well

as beam homogenization for accurate spectral analysis. The 100mm sphere exhibits a homogeneity of

better than 1% at the 25mm port when illuminated through the side (fibre) ports. The 10mm and 20mm

spheres feature an integrated photodiode (choice of UV-Silicon, VIS-enhanced InGaAs or Germanium) for

optical power measurement, as well as an SMA fibre port for auxiliary functions such as spectral analysis.

Both outputs are located on the back side of the device. Both of these spheres are calibrated and are

compatible with our OPM150 series of optical power meter.




Model Selection Guide


Product ImageOrder CodeΦInputWavelengthPower
OPM150SP20UVS7250nm – 1100nmup to 500mW
OPM150SP20G800nm – 1550nmup to 500mW
OPM150SP20VIGA400nm – 1600nmup to 500mW
OPM150SP20x2.0IGA800nm – 2000nmup to 500mW
OPM150SP20x2.2IGA1000nm – 2200nmup to 500mW
OPM15SP50UVS12.5250nm – 1100nmup to 5W
OPM15SP50G800nm – 1550nmup to 5W
OPM15SP50VIGA400nm – 1600nmup to 5W
OPM15SP50x2.0IGA800nm – 2000nmup to 5W
OPM15SP50x2.2IGA1000nm – 2200nmup to 5W
OPM15SP100UVS25250nm – 1100nmup to 20W
OPM15SP100G800nm – 1550nmup to 20W
OPM15SP100VIGA400nm – 1600nmup to 20W
OPM15SP100x2.0IGA800nm – 2000nmup to 20W
OPM15SP100x2.2IGA1000nm – 2200nmup to 20W



Product Brochure:

OPM150_Console. PDF  | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF



PolymerGold
ModelP10P20SP20SP50/100G25G65G100L
Inner Diameter10mm20mm20mm50mm/100mm25mm65mm100mm
Input Port Diameter3,5mm7mm




Max Power handling<50mW200mW500mW-20W5W-100Wup to 100W (CW)up to 400W (CW)up to 5kW (CW)
Wavelength range200-2500nm200-2500nm200-2500nm200-2500nm 650nm – 20µm 650nm – 20µm 650nm – 20µm



Choose the Power Sensor based on wavelength Click here

SIMTRUM offers two types of sensor head Free beam and Fiber coupled, Wtih various diode materials allow measurement from 250nm to 2500nm. Silicon sensor wavelength range covers 250nm -110nm , Gemanium sensor wavelength range covers 800nm-1500nm, InGaAs sensor wavelength range covers 400-2500nm. The calibration file of each head is stored into its connector. Thus, changing wavelength range is as simple as swapping heads.



Optical Density Filter Choice

We offer caliberated attenuation filters which extend the range of free beam heads by up to three orders of magnitude. Power range cover from 1nW to 300mW



For High Power sensing combime sensor with integrating sphere. Click here

We offer integrating sphere which can extend your high power measurement from 2uW to 100W.With a response time tof 100us and sampling rates up to 600S/s, there is much more to see than with a thermopile sensor. And no thermal drift to worry about either!



Match Power Meter Console Click Here

Input

OPM 150

OPM 200

OPM 500

Detector Heads

Free Beam / Fibre Heads

Fibre Heads

USB Port

Yes

No

Yes

Output

Digital & Analogue

Analogue

Digital & Analogue

Power Range

nW - kW

µW - mW

pW - mW

Accuracy

± 4

± 5

Reproducibility

± 1

± 0.5

Linearity

± 0.2



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OPM 150 Power Meter Console 12mA
Max Current 12 mA Measurement bandwidth: 10kHz , Interfaces: USB, Compatible with full range power meter sensor 		In Stock $360 - 450
OPM 150 Power Meter Console 4mA
Max Current 4 mA Measurement bandwidth: 100kHz , Interfaces: USB, Compatible with full range power meter sensor 		In Stock $370 - 480
OPM150SP20UVS
High Power Polymer Integrating Spheres (20-100mm), 20mm Polymer, Wavelength 250nm - 1100nm, power up to 500mW 		4-6 Weeks $850 - 999
OPM150SP20G
High Power Polymer Integrating Spheres (20-100mm), 20mm Polymer, Wavelength 800nm - 1550nm, power up to 500mW 		4-6 Weeks $940 - 1110
OPM150SP20VIGA
High Power Polymer Integrating Spheres (20-100mm), 20mm Polymer, Wavelength 400nm - 1600nm, power up to 500mW 		4-6 Weeks $980 - 1150
OPM150SP20x2.0IGA
High Power Polymer Integrating Spheres (20-100mm), 20mm Polymer, Wavelength 800nm - 2000nm, power up to 500mW 		4-6 Weeks $1140 - 1350
OPM150SP20x2.2IGA
High Power Polymer Integrating Spheres (20-100mm), 20mm Polymer, Wavelength 1000nm - 2200nm, power up to 500mW 		4-6 Weeks $1140 - 1350
OPM150SP50UVS
High Power Polymer Integrating Spheres (20-100mm), 50mm Polymer, Wavelength 250nm - 1100nm, power up to 5w 		4-6 Weeks $1190 - 1400
OPM150SP50G
High Power Polymer Integrating Spheres (20-100mm), 50mm Polymer, Wavelength 800nm - 1550nm, power up to 5w 		4-6 Weeks $1280 - 1500
OPM150SP50VIGA
High Power Polymer Integrating Spheres (20-100mm), 50mm Polymer, Wavelength 400nm - 1600nm, power up to 5W 		4-6 Weeks $1320 - 1550
OPM150SP50x2.0IGA
High Power Polymer Integrating Spheres (20-100mm), 50mm Polymer, Wavelength 800nm - 2000nm, power up to 5W 		4-6 Weeks $1480 - 1740
OPM150SP50x2.2IGA
High Power Polymer Integrating Spheres (20-100mm), 50mm Polymer, Wavelength 1000nm - 2200nm, power up to 5W 		4-6 Weeks $1480 - 1740
OPM150SP100UVS
High Power Polymer Integrating Spheres (20-100mm), 100mm Polymer, Wavelength 250nm - 1100nm, power up to 20W 		4-6 Weeks $1750 - 2050
OPM150SP100G
High Power Polymer Integrating Spheres (20-100mm), 100mm Polymer, Wavelength 800nm - 1550nm, power up to 20W 		4-6 Weeks $1840 - 2160
OPM150SP100VIGA
High Power Polymer Integrating Spheres (20-100mm), 100mm Polymer, Wavelength 400nm - 1600nm, power up to 20W 		4-6 Weeks $1850 - 2180
OPM150SP100x2.0IGA
High Power Polymer Integrating Spheres (20-100mm), 100mm Polymer, Wavelength 800nm - 2000nm, power up to 20W 		4-6 Weeks $2040 - 2400
OPM150SP100x2.2IGA
High Power Polymer Integrating Spheres (20-100mm), 100mm Polymer, Wavelength 1000nm - 2200nm, power up to 20W 		4-6 Weeks $2080 - 2450

OPM150SP100x2.2IGA - Parameter

OPM150SP100x2.0IGA - Parameter

OPM150SP100VIGA - Parameter

OPM150SP100G - Parameter

OPM150SP100UVS - Parameter

OPM150SP50x2.2IGA - Parameter

OPM150SP50x2.0IGA - Parameter

OPM150SP50VIGA - Parameter

OPM150SP50G - Parameter

OPM150SP50UVS - Parameter

OPM150SP20x2.2IGA - Parameter

OPM150SP20x2.0IGA - Parameter

OPM150SP20VIGA - Parameter

OPM150SP20G - Parameter

OPM150SP20UVS - Parameter

Universal Port Adapter for SP50 - Parameter

SMA-Adapter for SP100 - Parameter

SMA-Adapter for SP50 and G65 - Parameter

SMA-Adapter for P10 and P20 - Parameter

FC-Adapter for SP100 - Parameter

FC-Adapter for SP50 and G65 - Parameter

FC-Adapter For P10 and P20 - Parameter

OPM 150 Power Meter Console 4mA  - Parameter

OPM 150 Power Meter Console 12mA  - Parameter

OPM150SP100x2.2IGA - Download

OPM150SP100x2.0IGA - Download

OPM150SP100VIGA - Download

OPM150SP100G - Download

OPM150SP100UVS - Download

OPM150SP50x2.2IGA - Download

OPM150SP50x2.0IGA - Download

OPM150SP50VIGA - Download

OPM150SP50G - Download

OPM150SP50UVS - Download

OPM150SP20x2.2IGA - Download

OPM150SP20x2.0IGA - Download

OPM150SP20VIGA - Download

OPM150SP20G - Download

OPM150SP20UVS - Download

Universal Port Adapter for SP50 - Download

Download

SMA-Adapter for SP100 - Download

SMA-Adapter for SP50 and G65 - Download

SMA-Adapter for P10 and P20 - Download

FC-Adapter for SP100 - Download

FC-Adapter for SP50 and G65 - Download

FC-Adapter For P10 and P20 - Download

OPM 150 Power Meter Console 4mA  - Download

Download

Download

OPM 150 Power Meter Console 12mA  - Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
FC-Adapter For P10 and P20
FC-Adapter For P10 and P20 Integrating Sphere 		Contact Us Request for quote
FC-Adapter for SP50 and G65
The FC-Adapter for SP50 and G65 Integrating Sphere 		In Stock Request for quote
FC-Adapter for SP100
The FC-Adapter for SP100, G100 and G100L Integrating Sphere 		In Stock Request for quote
SMA-Adapter for P10 and P20
The SMA-Adapter for P10 and P20 Integrating Sphere 		In Stock Request for quote
SMA-Adapter for SP50 and G65
The SMA-Adapter for SP50 and G65 Integrating Sphere 		In Stock Request for quote
SMA-Adapter for SP100
The SMA-Adapter for SP100, G100 and G100L Integrating Sphere 		In Stock Request for quote
Universal Port Adapter for SP50
The Universal Port Adapter for SP50 Integrating Sphere 		In Stock Request for quote
