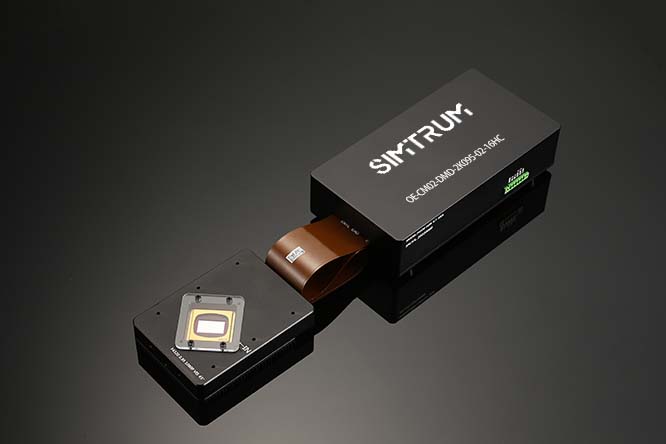

OE-DMD-HC5-160-756-1920-065

Products / Opto-Electronics /Spatial Light Modulator（SLM） /Digital Micromirror Device (DMD) / OE-DMD-HC5-160-756-1920-065 /

Wavelength Range: "DUV: 160-280 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 10941 Hz 8bit: 508.54 Hz", Storage Capacity: 2T/4T/8T, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm²

MODEL:OE-DMD-HC5-160-756-1920-065

4-6week Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
OE-DMD-HC6-160-756-2560-090
Wavelength Range: "DUV: 160-280 nm UV: 355-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 11764 Hz 8bit: 522.19 Hz", Storage Capacity: 2.5T/5T/10T, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC4-160-1080-1920-096
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1200, Target Size: 0.96 inch, Buffer Frame Rate: "1bit: 18518 Hz 8bit: 585.82 Hz", Storage Capacity: 3T/6T/12T, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC3-160-1080-1920-095
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1080, Target Size: 0.95 inch, Buffer Frame Rate: "1bit: 20746 Hz 8bit: 617.05 Hz", Storage Capacity: 3T/6T/12T, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC2-160-1368-1024-070
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 13.68 μm or 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.7 inch or 0.55 inch, Buffer Frame Rate: "1bit: 27995 Hz 8bit: 657.56 Hz", Storage Capacity: 2T/4T/8T, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HC1-160-1080-1280-065
Wavelength Range: "DUV: 160-280 nm VIS: 420-700 nm NIR: 800-2000 nm", Micromirror Size: 10.8 μm, Physical Resolution: 1280×800, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 11764 Hz 8bit: 522.19 Hz", Storage Capacity: 1T/2T/4T, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: 160W 		4-6week Request for quote
OE-DMD-HS6-160-756-2560-090
Wavelength Range: "DUV: 160-280 nm UV: 355-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 997 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS5-160-756-1920-065
Wavelength Range: "DUV: 160-280 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 17064 Hz 8bit: 940 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS4-160-1080-1920-096
Wavelength Range: "DUV: 160-280 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1200, Target Size: 0.96 inch, Buffer Frame Rate: "1bit: 18384 Hz 8bit: 1348 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS3-160-1080-1920-095
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 10.8 μm, Physical Resolution: 1920×1080, Target Size: 0.95 inch, Buffer Frame Rate: "1bit: 20120 Hz 8bit: 1422 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS2-160-1368-1024-070
Wavelength Range: "DUV: 160-280 nm UV: 363-420 nm VIS: 400-700 nm MIR: 3-5 μm LIR: 1-14 μm", Micromirror Size: 13.68 μm or 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.7 inch or 0.55 inch, Buffer Frame Rate: "1bit: 26867 Hz 8bit: 1683 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HS1-420-1080-1280-065
Wavelength Range: "VIS: 420-700 nm NIR: 800-2000 nm", Micromirror Size: 10.8 μm, Physical Resolution: 1280×800, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 1004 Hz", Storage Capacity: 128 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: 160W 		In Stock Request for quote
OE-DMD-SS6-363-756-2560-090
Wavelength Range: "UV: 363-420 nm VIS: 400-700 nm", Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 997 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS5-400-756-1920-065
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 17064 Hz 8bit: 940 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS4-400-1080-1920-096
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 10.8 μm, Physical Resolution: 1920×1200, Target Size: 0.96 inch, Buffer Frame Rate: "1bit: 18384 Hz 8bit: 1348 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS3-400-1080-1920-095
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 10.8 μm, Physical Resolution: 1920×1080, Target Size: 0.95 inch, Buffer Frame Rate: "1bit: 20120 Hz 8bit: 1422 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS2-400-1368-1024-070
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 13.68 μm or 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.7 inch or 0.55 inch, Buffer Frame Rate: "1bit: 26867 Hz 8bit: 1683 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-SS1-420-1080-1280-065
Wavelength Range: "VIS: 420-700 nm NIR: 800-2000 nm", Micromirror Size: 10.8 μm, Physical Resolution: 1280×800, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 11560 Hz 8bit: 1004 Hz", Storage Capacity: 64 Gb, Deflection Angle: ±12°, Fill Factor: 94%, Damage Threshold: 160W 		4-6week Request for quote
OE-DMD-HD6-420-540-1920-047
Wavelength Range: VIS: 420-700 nm, Micromirror Size: 5.4 μm, Physical Resolution: 1920×1080, Target Size: 0.47 inch, Buffer Frame Rate: "1bit: 2487 Hz 8bit: 437 Hz", Storage Capacity: 64 Mb, Deflection Angle: ±17°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD5-420-540-2716-067
Wavelength Range: VIS: 420-700 nm, Micromirror Size: 5.4 μm, Physical Resolution: 2716×1600, Target Size: 0.67 inch, Buffer Frame Rate: "1bit: 9523 Hz 8bit: 1190 Hz", Storage Capacity: 512 Mb, Deflection Angle: ±17.5°, Fill Factor: 93%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD4-420-540-2048-050
Wavelength Range: VIS: 420-700 nm, Micromirror Size: 5.4 μm, Physical Resolution: 2048×1200, Target Size: 0.5 inch, Buffer Frame Rate: "1bit: 16100 Hz 8bit: 2016 Hz 16bit: 1008 Hz", Storage Capacity: 512 Mb, Deflection Angle: ±17.5°, Fill Factor: 93%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD3-400-756-2560-090
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 7.56 μm, Physical Resolution: 2560×1600, Target Size: 0.9 inch, Buffer Frame Rate: "1bit: 9523 Hz 8bit: 1031 Hz", Storage Capacity: 512 Mb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD2-400-756-1920-065
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 7.56 μm, Physical Resolution: 1920×1080, Target Size: 0.65 inch, Buffer Frame Rate: "1bit: 9523 Hz 8bit: 247 Hz", Storage Capacity: 128 Mb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote
OE-DMD-HD1-400-1080-1024-055
Wavelength Range: VIS: 400-700 nm, Micromirror Size: 10.8 μm, Physical Resolution: 1024×768, Target Size: 0.55 inch, Buffer Frame Rate: "1bit: 1063 Hz 8bit: 266 Hz", Storage Capacity: 128 Mb, Deflection Angle: ±12°, Fill Factor: 92%, Damage Threshold: >20W/cm² 		4-6week Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product Specification

Model Wavelength Range Micromirror Size Physical Resolution Target Size Buffer Frame Rate Storage Capacity Deflection Angle Fill Factor Damage Threshold
OE-DMD-HD1-400-1080-1024-055 VIS: 400-700 nm 10.8 μm 1024×768 0.55 inch 1bit: 1063 Hz
8bit: 266 Hz		 128 Mb ±12° 92% >20W/cm²
OE-DMD-HD2-400-756-1920-065 VIS: 400-700 nm 7.56 μm 1920×1080 0.65 inch 1bit: 9523 Hz
8bit: 247 Hz		 128 Mb ±12° 92% >20W/cm²
OE-DMD-HD3-400-756-2560-090 VIS: 400-700 nm 7.56 μm 2560×1600 0.9 inch 1bit: 9523 Hz
8bit: 1031 Hz		 512 Mb ±12° 92% >20W/cm²
OE-DMD-HD4-420-540-2048-050 VIS: 420-700 nm 5.4 μm 2048×1200 0.5 inch 1bit: 16100 Hz
8bit: 2016 Hz
16bit: 1008 Hz		 512 Mb ±17.5° 93% >20W/cm²
OE-DMD-HD5-420-540-2716-067 VIS: 420-700 nm 5.4 μm 2716×1600 0.67 inch 1bit: 9523 Hz
8bit: 1190 Hz		 512 Mb ±17.5° 93% >20W/cm²
OE-DMD-HD6-420-540-1920-047 VIS: 420-700 nm 5.4 μm 1920×1080 0.47 inch 1bit: 2487 Hz
8bit: 437 Hz		 64 Mb ±17° 92% >20W/cm²
OE-DMD-SS1-420-1080-1280-065 VIS: 420-700 nm
NIR: 800-2000 nm		 10.8 μm 1280×800 0.65 inch 1bit: 11560 Hz
8bit: 1004 Hz		 64 Gb ±12° 94% 160W
OE-DMD-SS2-400-1368-1024-070 VIS: 400-700 nm 13.68 μm or 10.8 μm 1024×768 0.7 inch or 0.55 inch 1bit: 26867 Hz
8bit: 1683 Hz		 64 Gb ±12° 92% >20W/cm²
OE-DMD-SS3-400-1080-1920-095 VIS: 400-700 nm 10.8 μm 1920×1080 0.95 inch 1bit: 20120 Hz
8bit: 1422 Hz		 64 Gb ±12° 94% >20W/cm²
OE-DMD-SS4-400-1080-1920-096 VIS: 400-700 nm 10.8 μm 1920×1200 0.96 inch 1bit: 18384 Hz
8bit: 1348 Hz		 64 Gb ±12° 94% >20W/cm²
OE-DMD-SS5-400-756-1920-065 VIS: 400-700 nm 7.56 μm 1920×1080 0.65 inch 1bit: 17064 Hz
8bit: 940 Hz		 64 Gb ±12° 92% >20W/cm²
OE-DMD-SS6-363-756-2560-090 UV: 363-420 nm
VIS: 400-700 nm		 7.56 μm 2560×1600 0.9 inch 1bit: 11560 Hz
8bit: 997 Hz		 64 Gb ±12° 92% >20W/cm²
OE-DMD-HS1-420-1080-1280-065 VIS: 420-700 nm
NIR: 800-2000 nm		 10.8 μm 1280×800 0.65 inch 1bit: 11560 Hz
8bit: 1004 Hz		 128 Gb ±12° 94% 160W
OE-DMD-HS2-160-1368-1024-070 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 13.68 μm or 10.8 μm 1024×768 0.7 inch or 0.55 inch 1bit: 26867 Hz
8bit: 1683 Hz		 128 Gb ±12° 92% >20W/cm²
OE-DMD-HS3-160-1080-1920-095 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1080 0.95 inch 1bit: 20120 Hz
8bit: 1422 Hz		 128 Gb ±12° 94% >20W/cm²
OE-DMD-HS4-160-1080-1920-096 DUV: 160-280 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1200 0.96 inch 1bit: 18384 Hz
8bit: 1348 Hz		 128 Gb ±12° 94% >20W/cm²
OE-DMD-HS5-160-756-1920-065 DUV: 160-280 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 1920×1080 0.65 inch 1bit: 17064 Hz
8bit: 940 Hz		 128 Gb ±12° 92% >20W/cm²
OE-DMD-HS6-160-756-2560-090 DUV: 160-280 nm
UV: 355-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 2560×1600 0.9 inch 1bit: 11560 Hz
8bit: 997 Hz		 128 Gb ±12° 92% >20W/cm²
OE-DMD-HC1-160-1080-1280-065 DUV: 160-280 nm
VIS: 420-700 nm
NIR: 800-2000 nm		 10.8 μm 1280×800 0.65 inch 1bit: 11764 Hz
8bit: 522.19 Hz		 1T/2T/4T ±12° 94% 160W
OE-DMD-HC2-160-1368-1024-070 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 13.68 μm or 10.8 μm 1024×768 0.7 inch or 0.55 inch 1bit: 27995 Hz
8bit: 657.56 Hz		 2T/4T/8T ±12° 92% >20W/cm²
OE-DMD-HC3-160-1080-1920-095 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1080 0.95 inch 1bit: 20746 Hz
8bit: 617.05 Hz		 3T/6T/12T ±12° 94% >20W/cm²
OE-DMD-HC4-160-1080-1920-096 DUV: 160-280 nm
UV: 363-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 10.8 μm 1920×1200 0.96 inch 1bit: 18518 Hz
8bit: 585.82 Hz		 3T/6T/12T ±12° 94% >20W/cm²
OE-DMD-HC5-160-756-1920-065 DUV: 160-280 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 1920×1080 0.65 inch 1bit: 10941 Hz
8bit: 508.54 Hz		 2T/4T/8T ±12° 92% >20W/cm²
OE-DMD-HC6-160-756-2560-090 DUV: 160-280 nm
UV: 355-420 nm
VIS: 400-700 nm
MIR: 3-5 μm
LIR: 1-14 μm		 7.56 μm 2560×1600 0.9 inch 1bit: 11764 Hz
8bit: 522.19 Hz		 2.5T/5T/10T ±12° 92% >20W/cm²
