STPMS-LDTC-016/07-120,Double Magnification Bi-Telecentric Lens 0.16X & 0.7X, Max. sensor size 1''，Resolution 25.81/7.63 μm，Working Distance 120 mm

MODEL:STPMS-LDTC-016/07-120

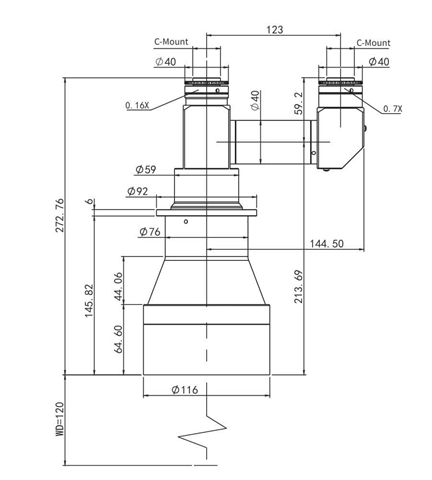

4-6 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPMS-DTC-0088/0176-120
STPMS-DTC-0088/0176-120,Double Magnification Bi-Telecentric Lens0.088X & 0.176X, Max. sensor size 1/1.8'' & 2/3''，Resolution 30.5 μm，Working Distance 120 mm 		4-6 weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications

Model STPMS-LDTC-016/07-120 STPMS-DTC-0088/0176-120
Magnification 0.16X 0.7X 0.088X 0.176X
FOV (MM X H X V) 1/3'' 30.0 x 22.5 6.9 x 5.1 54.5 x 40.9 27.3 x 20.5
FOV (MM X H X V) 1/2'' 40.0 x 30.0 9.1 x 6.9 72.7 x 54.5 36.4 x 27.3
FOV (MM X H X V) 1/1.8'' 44.7x33.5 10.2 x 7.7 81.2 x 60.9 40.6 x 30.5
FOV (MM X H X V) 2/3'' 55.0x41.3 12.6 x 9.4 Φ100 50.0x37.5
Working Distance (mm) 120 120
N.A. 0.013 0.044 0.011
F.No. 6.0 8 4.46 8.0
TV Distortion 0.02% 0.02% 0.05% 0.05%
DOF (mm) 19.23 1.30 16 7.2
Centre Mt@70lp/mm >60% >50% >76% >57%
Resolution (μm) 25.81 7.63 30.5 30.5
Max Sensor Size 1'' 1/1.8'' 2/3''
Object Side Telecentricity <0.02°(0.1°) <0.02°
Image Side Telecentricity <0.5° <0.3° ——
Mount C C
Working Temperature -10℃~+50℃ -10℃~+50℃

STPMS-DTC-0088/0176-120 - Parameter

STPMS-LDTC-016/07-120 - Parameter

STPMS-DTC-0088/0176-120 - Download

STPMS-LDTC-016/07-120 - Download
