Products / Optics /Vision Lens /Zoom Lens /Z125 Series Zoom Lens / STPM-Z125D-C /

STPM-Z125D-C，Type Detented with Coaxial llumination Zoom Lens，Optical Magnification Range 0.58X~7.5X，Working Distance 84±2mm，Zoom Control Manual Zoom

MODEL:STPM-Z125D-C

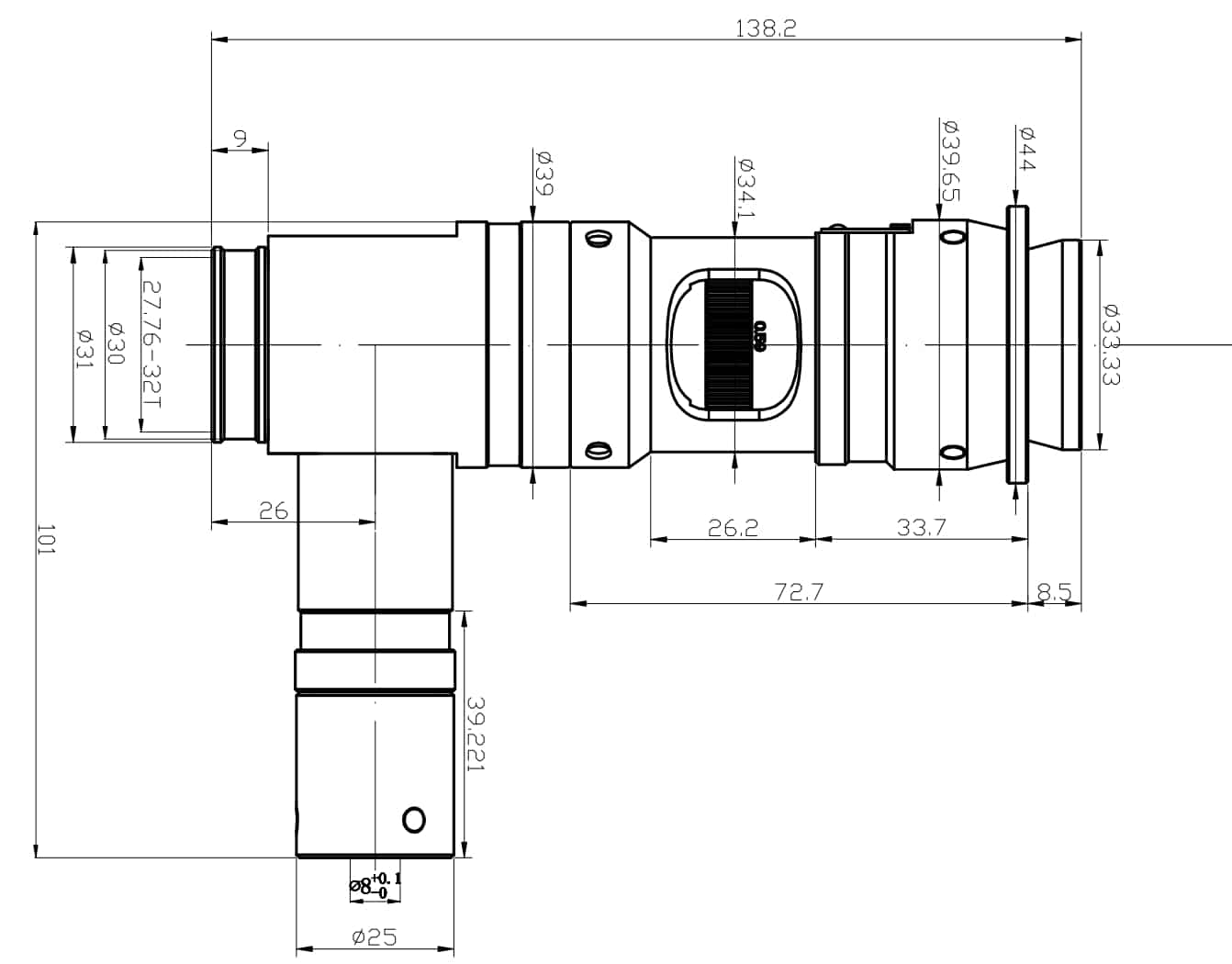

4-6 Weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Product specifications and Brochures

Product Brochure Link:

Model		STPM-Z125M				STPM-Z125M/C				STPM-Z125D-C				STPM-Z125D
Type		Detented Zoom Lens				Motorized With Coaxial lllumination				Detented with Coaxial llumination Zoom Lens				Detented Zoom Lens
Optical Magnification Range		0.58X~7.5X
Working Distance		84±2mm
Optical Magnification		0.58X	0.6X	1X	1.5X	2X	2.5X	3X	3.5X	4X	4.5X	5X	5.5X	6X	6.5X	7X	7.5X
Depth of View (mm)		2.75	2.67	0.95	0.43	0.27	0.2	0.15	0.12	0.1	0.081	0.073	0.066	0.061	0.056	0.052	0.05
N.A.		0.025	0.025	0.043	0.063	0.074	0.082	0.09	0.097	0.1	0.11	0.11	0.11	0.11	0.11	0.11	0.11
F .No.		12.5	12.5	11.85	11. 95	13.65	15.3	16.5	18.4	19.9	20.4	22.45	22.7	26.8	29.4	31.7	33.9
Resolution(um)		13	13	7.8	5.3	4.53	4.09	3.73	3.46	3.36	3.05	3.05	3.05	3.05	3.05	3.05	3.05
TV Distortion		0.050%	0.050%	0.002%	0.010%	0.020%	0.003%	0.020%	0.020%	0.018%	0.020%	0.010%	0.010%	0.001%	0.010%	0.005%	0.005%
Field of View(DxHxV) (mm)	Diagonal	18.97	18.33	11	7.33	5.5	4.4	3.67	3.14	2.75	2.44	2.2	2	1.83	1.69	1.57	1.47
	Horizontal	15.17	14.67	8.8	5.87	4.4	3.52	2.93	2.51	2.2	1.96	1.76	1.6	1.47	1.35	1.26	1.17
	vertical	11.38	11	6.6	4.4	3.3	2.64	2.2	1.89	1.65	1.47	1.32	1.2	1.1	1.02	0.94	0.88
Max.Sensor Size		2/3"
Mount		C-Mount
Zoom Control		Motorized Zoom								Manual Zoom

STPM-Z125D - Parameter

STPM-Z125D-C - Parameter

STPM-Z125M/C - Parameter

STPM-Z125M - Parameter

STPM-Z125D - Download

STPM-Z125D-C - Download

STPM-Z125M/C - Download

STPM-Z125M - Download
