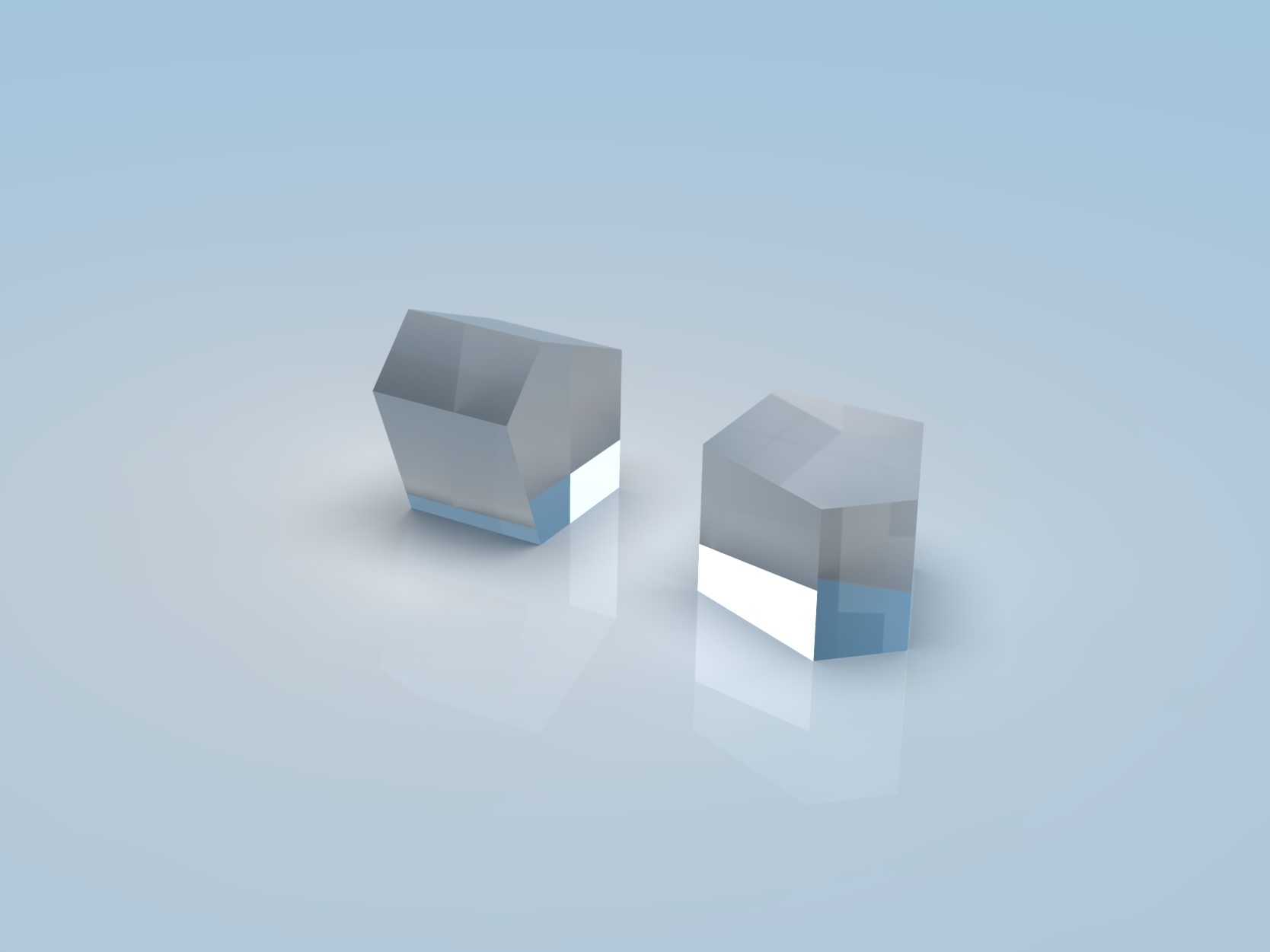

Penta Prism

Penta Prism, Prism www.simtrum.com

Penta Prism is a five-sided prism which features two important properties. Firstly, the images formed are neither inverted nor reversed while being deviated by 90 degrees. Secondly, it is a constant deflection device where all the transmitted rays are exactly deflected by 90 degrees. Any slight movement of the prisms would not adversely affect the right deflected angle. This feature makes the prisms useful in rangefinder as well as in viewfinders of single reflex cameras. The reflecting surfaces are typically enhanced aluminium-coated with a black paint overcoat for protection.


BK7 is the most common optical glass used in high-quality optical components as it is a hard glass that can withstand a variety of physical and chemical exposure. Relatively scratch and chemical resistant, it has a low bubble and inclusion content, therefore making it an ideal choice for precision lenses. It is the ideal choice for general purpose visual and NIR applications as it has excellent transmission.



General Specifications

Shape

Penta Prism

Material

BK7

Coating

Protected Aluminum reflective coating, Single Layer MgF2 AR coating at 550nm

Dimensional Tolerance(mm)

±0.2

Deviation Angle(degree)

90

Flatness

Reflection Surface: λ/4@633nm; Transmission Surface: λ/2@633nm

Surface Quality

40/20

Clear Aperture

>90%

Chamfer

0.5mmx45°

Damage Threshold(pulsed)

7.5 J/cm2 (10ns/10Hz)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.


Dimension A*h (mm)

Angle Tolerance


Search Reset
Compare Model Drawings & Specs Coating Angle Tolerance Dimension A*h (mm) Availability Price
(USD)
BK7-PP-30*30-PAL
BK7, Penta Prism, A*h= 30*30mm, Protected Aluminum Coating: R>87% @ 400-1200nm
R>87% @ 400-1200nm<3 arcmin30*30 2-3 Weeks $68.00
BK7-PP-40*40-Pal
BK7, Penta Prism, A*h= 40*40mm, Protected Aluminum Coating: R>87% @ 400-1200nm
R>87% @ 400-1200nm<3 arcmin40*40 2-3 Weeks $88.00
BK7-PP-7*6-PAL
BK7, Penta Prism, A*h= 7*6mm, Protected Aluminum Coating: R>87% @ 400-1200nm
R>87% @ 400-1200nm<30 arcsec7*6 2-3 Weeks $37.00
BK7-PP-10*10-PAL
BK7, Penta Prism, A*h= 10*10mm, Protected Aluminum Coating: R>87% @ 400-1200nm
R>87% @ 400-1200nm<30 arcsec10*10 2-3 Weeks $48.00
BK7-PP-20*20-PAL
BK7, Penta Prism, A*h= 20*20mm, Protected Aluminum Coating: R>87% @ 400-1200nm
R>87% @ 400-1200nm<30 arcsec20*20 2-3 Weeks $56.00
BK7-PP-25.4*25.4-PAL
BK7, Penta Prism, A*h= 25.4*25.4mm, Protected Aluminum Coating: R>87% @ 400-1200nm
R>87% @ 400-1200nm<30 arcsec25.4*25.4 2-3 Weeks $85.00

BK7-PP-25.4*25.4-PAL - Parameter

Type
Penta Prism

Material
BK7

Coating
R>87% @ 400-1200nm

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/4@633nm

Angle Tolerance
<30 arcsec

Dimension A*h (mm)
25.4*25.4

BK7-PP-20*20-PAL - Parameter

Type
Penta Prism

Material
BK7

Coating
R>87% @ 400-1200nm

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/4@633nm

Angle Tolerance
<30 arcsec

Dimension A*h (mm)
20*20

BK7-PP-10*10-PAL - Parameter

Type
Penta Prism

Material
BK7

Coating
R>87% @ 400-1200nm

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/4@633nm

Angle Tolerance
<30 arcsec

Dimension A*h (mm)
10*10

BK7-PP-7*6-PAL - Parameter

Type
Penta Prism

Material
BK7

Coating
R>87% @ 400-1200nm

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/4@633nm

Angle Tolerance
<30 arcsec

Dimension A*h (mm)
7*6

BK7-PP-40*40-Pal - Parameter

Type
Penta Prism

Material
BK7

Coating
R>87% @ 400-1200nm

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/4@633nm

Angle Tolerance
<3 arcmin

Dimension A*h (mm)
40*40

BK7-PP-30*30-PAL - Parameter

Type
Penta Prism

Material
BK7

Coating
R>87% @ 400-1200nm

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/4@633nm

Angle Tolerance
<3 arcmin

Dimension A*h (mm)
30*30

BK7-PP-25.4*25.4-PAL - Download

BK7-PP-20*20-PAL - Download

BK7-PP-10*10-PAL - Download

BK7-PP-7*6-PAL - Download

BK7-PP-40*40-Pal - Download

BK7-PP-30*30-PAL - Download
