Mid Infrared Wide Spectrum Tunable Laser (3-12μm) | SIMTRUM Photonics Store

CW IR Quantum Cascade Lasers(3-12μm)

Mid Infrared Wide Spectrum Tunable Laser – SuperTune QCL

SuperTune QCL is a wide spectrum continuous tunable laser customized for infrared spectrum and infrared optical instrument applications. Ultra high stability optomechanical design, combined with unique 3-12μm wide spectrum coverage and wide spectrum tuning capability make it the most cost-effective semiconductor infrared tunable light source in the market. The center wavelength of the series is customized at 4-5μm band, the average power of up to 20mW can be obtained.



SuperTune QCL has a built-in wavelength monitoring module and uses a high-performance motor to achieve fine wavelength adjustment, which can be used independently without relying on an infrared spectrometer. The laser can be used in infrared material characterization, spectroscopy and nonlinear optics. The operating wavelength is 4-5μm for customized requirements outside the M-band, please drop us an email at info@simtrum.com for professional Customized Systems/Solutions.









Features

Fast wavelength sweep

High spatial resolution

Excellent power stability

Diffraction limited beam

Turn-key system







Applications

Infrared spectroscopy

Device testing and measurement

Gas molecular detection

Infrared light scientific instrument

Infrared excitation light source

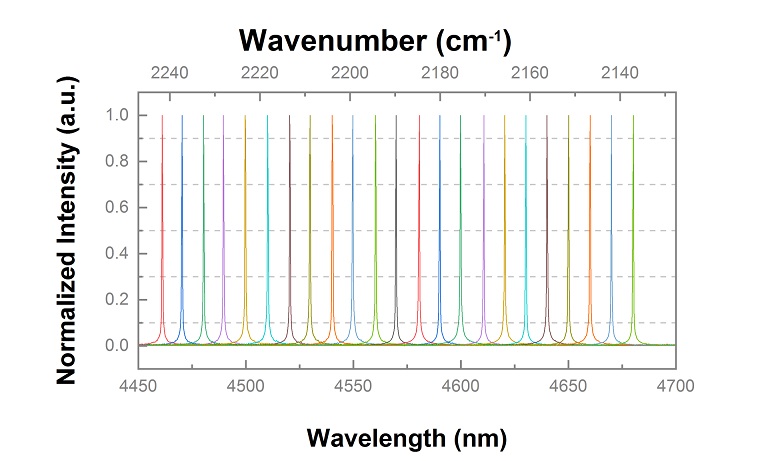

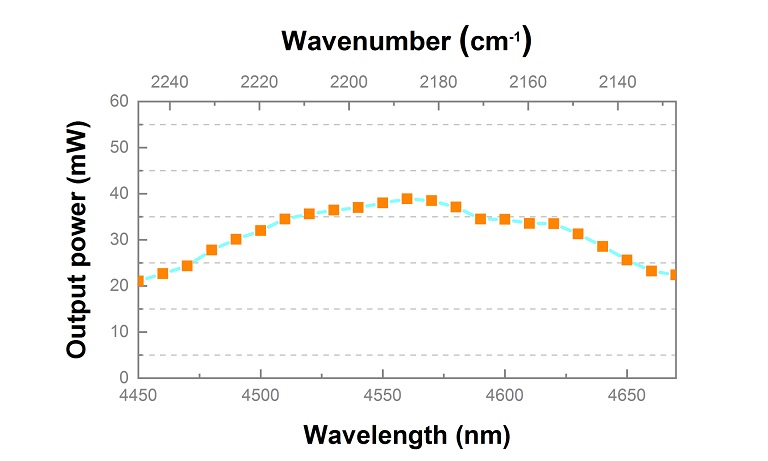

Output Spectrum Output Power



Product specifications and Brochures

Product Brochure Link:





Laser Parameters
Operating Wavelength nm 4-5 μm (3-12 μm customizable)
Output Bandwidth nm < 0.1 nm
Average Power mW 1 mW - 50mW depends on wavelength
Tuning Range nm >200 nm@4.55 μm
Beam Quality   M 2 < 1.5
Output Mode   Free space output
Electrical, Environmental and Mechanical Parameters
Supply Voltage VAC 100 - 240
Operational Temperature Range °C 15-35
Operational Humidity Range % 20-80 ( Non-condensing )
Weight Laser Head kg 17
Dimensions Laser Head mm (LxWxH) 436 x 260 x 146 mm
Cooling   Air Cooling

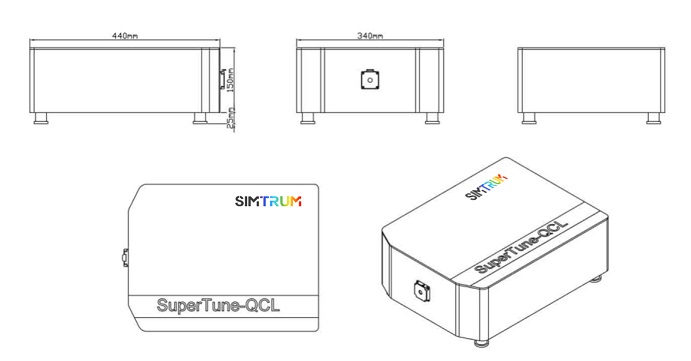

Machine Drawings




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for professional

Customized Systems/Solutions.





Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STQCL-4-5
CW IR Quantum Cascade Lasers(3-12μm), operating wavelength 4-5 μm, output bandwidth <0.1nm, average power >1mW, tuning rage >200nm @4.55μm
Contact Us Request for quote
STQCL-C
CW IR Quantum Cascade Lasers(3-12μm), operating wavelength customized( 3-12 μm), output bandwidth <0.1nm, average power >1mW, tuning rage >200nm @4.55μm
Contact Us Request for quote

STQCL-C - Parameter

STQCL-4-5 - Parameter

STQCL-C - Download

STQCL-4-5 - Download
