EDucation Kit (EDK) – JD955B

The JD955B EDucation Kit (EDK) is an LCoS, SLM-based system that provides in-depth, hands-on optical training via a series of ten experiments. Optics students and engineering professionals will be able to learn optics fundamentals quickly and easily with the EDK. The EDK is built around the 0.55″ JD5552 panel and has a 1920 x 1080 pixel resolution. The EDK includes a complete lab manual that covers phase, wavefront, and amplitude modulation, dispersion, holography, diffraction, interference, and additional topics. LabVIEW software with a rich GUI is included to guide the experiments and control the SLM hardware.

The EDK is a compact, flexible training solution designed to easily integrate into modern optical labs and cover a wide variety of key experiments.

Main Features

·        8-bit monochrome HDMI 1.4 input for 1080p, 60 Hz

·         Phase and amplitude (monochrome experiments)

·         LabVIEW-based GUI controls

·         Ten experiment lab manuals

·         Compact hardware package: 95 mm x 65 mm x 20 mm

·         Phase retardation of 2π @ 532 nm

·         Optical cage system for easy setup

·         Optical mount holes aligned to optical centre

·         Flexible, PC-driven optics lab hardware

·         Hands-on, dynamic experiments to learn optics fundamentals

·         Strong link between theory and lab results enhances student understanding

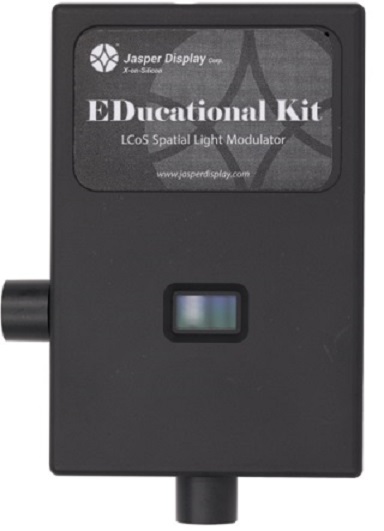

Figure 1. EDK SLM Hardware


Software

The included EDK Application software is a LabVIEW-based pattern generator for the experiments in the EDK Manual. Experiment descriptions, system diagrams, and plots provide clear guidance and feedback to the user so that they can better understand their goals and manipulate the equipment. Users can generate diffraction patterns for phase modulation and amplitude gratings for amplitude modulation. Pattern parameters are easily adjustable via a slider bar.

Optical Experiments

The EDK includes a manual that describes ten in-depth, step-by-step optical experiments targeted at advanced college-level learning and professional development.

The SLM hardware and provided software makes experiment set up and execution quick and easy.

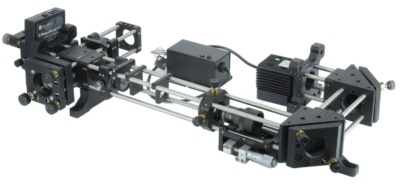

Figure 2. Optional Cage System

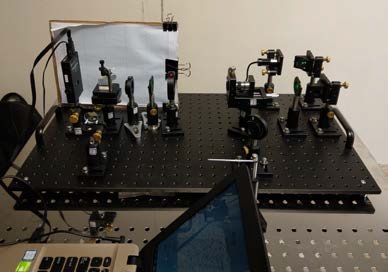

Figure 3. Optional Integrated System

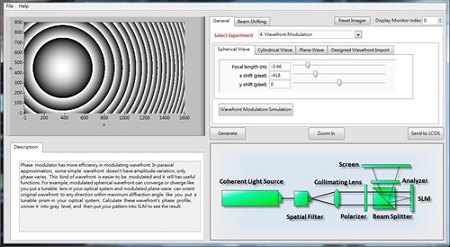

Figure 4. LabVIEW-based EDK Application Software



No.Experiments
1Pixelated Structure of SLM
2Amplitude Modulator
3Phase Modulator
4Wavefront Modulator
5Diffraction and Interference
6Michelson Interferometer
7Dispersion
8Signal Processing
9Talbot Image
10Phase-shifting Digital Holography

Table: Optical experiments list


Product Brochure: Education Kits

Specifications
Display TypeReflective LCoS
Resolution1920 x 1080
Active Area Diagonal0.55”
Active Area12.5 mm x 7.1 mm
Pixel Pitch6.4 μm
Readout Light Wavelength532 nm
Bit Depth8-bit (256 greyscale)
Input Frame Rate60 Hz
Phase Retardation2π @ 532 nm
Input Signal InterfaceHDMI 1.4
Power Supply Input120-240 V AC, 50-60 Hz
Power Supply Output12 V DC, 2 A
Size*¹95 mm x 65 mm x 20 mm
Mounting Taps Options*²M6 or 1/4”-20

Table 1: EDK Specifications
