Amplitude Modulator

SLM Research Kit 2K (ARK2K)

Amplitude Research Kit (ARK) – JD7555

The JD7555 is the Spatial Light Modulation Research Kit using JDC’s microdisplay panels for Amplitude/Monochrome applications.

Main Features


• Spatial Light Modulation for amplitude applications
• 8-bit monochrome with HDMI 1.4a standard addressing interface input
• Linear optical power modulations with 256 gray level scales
• SLM driver and panel in a single compact package
• Rich selections of panels and preconfigured for various application requirements
• Two mounting points aligned to optical center

Applications

• 3D AOI
• 3D Metrology
• 3D Scan
• Microscopy
• Maskless Lithography
• 3D Printing
• Structured Illumination Microscopy (SIM)

Figure 1. ARK SLM Hardware




Amplitude Research Kit (ARK) – JD7555N

The JD7555N is one Spatial Light Modulation Research Kit using JDC’s near infrared wavelength microdisplay panel for Amplitude/Monochrome applications.


Main Features

• Spatial Light Modulation for amplitude applications
• 8-bit monochrome with HDMI 1.4a standard addressing interface input
• Linear optical power modulations with 256 gray level scales
• SLM driver and panel in a single compact package
• Two mounting points aligned to optical center
• Plug and Display

Target Applications

• Laser Processing System


2K ARK outline dimensions



SLM Research Kit 2K (ARK4K)

Amplitude Research Kit (ARK) – JD7715

The Amplitude Research Kit is plug-and-play Spatial Light Modulator (SLM) hardware based on JDC’s 0.55″ LCoS panel. It is intended for amplitude/monochrome applications.

Main Features


• Spatial Light Modulation for amplitude applications
• 8-bit monochrome with HDMI 1.4a standard addressing interface input
• Linear optical power modulations with 256 gray level scales
• SLM driver and panel in a single compact package
• Rich selections of panels and preconfigured for various application requirements
• Two mounting points aligned to optical center

Applications

• 3D AOI
• 3D Metrology
• 3D Scan
• Microscopy
• Maskless Lithography
• 3D Printing
• Structured Illumination Microscopy (SIM)

Figure 1. ARK SLM hardware


Amplitude Research Kit (ARK) – JDN125N

The JDN125N is a 1.2” Amplitude Research Kit (ARK) for JD4124 microdisplay series at 1064 nm wavelength of 4094 x 2400 pixels. The JDN125N is ideal for near-infrared or 1064 nm wavelength monochrome applications.

Main Features


• Spatial Light Modulation for Amplitude applications
• 8-bit monochrome with HDMI 1.4 easy addressing interface input
• Linear optical power modulations with 256 gray level scales
• Plug-and-play display

Applications

• Laser Processing System
• Optical Tweezers
• Beam Shaping
• Super-resolution Optical Microscopy

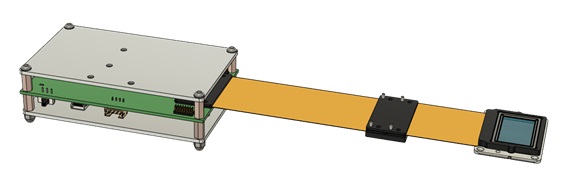

Figure 2. ARK 4K Hardware


4K ARK outline dimensions


Product Brochure: Amplitude Modulator

2K ARK

Model #JD7555JD7555N
Wavelength430 – 750 nm1000-1100 nm
Panel Response Time< 12 ms< 60 ms
Resolution1920 x 10801920 x 1080
Active Area Diagonal0.55″0.55″
Pixel Pitch6.4 μm6.4 μm
Input Frame Rate60 Hz60 Hz
Input Gray Levels8-bit (256)8-bit (256)
Display TypeReflective LCoSReflective LCoS
EnclosureKit, or No-box (optional)Kit, or No-box (optional)



ARK2K KitARK2K No-box0.55″ 2K LCoS Panel2K Driver Board


4K ARK

Model #JD7715JDN125N
Wavelength532 nm or 633 nm1000-1100 nm
Panel Response Time< 2.2 ms< 15 ms
Resolution4094 x 24004094 x 2400
Active Area Diagonal0.7″1.2″
Pixel Pitch3.74 μm6.4 μm
Input Frame Rate30 Hz30 Hz
Input Gray Levels8-bit (256)8-bit (256)
Display TypeReflective LCoSReflective LCoS
EnclosureKit, or No-box (optional)No-box


ARK4K KitARK4K No-box0.7″ 4K LCoS Panel

1.2″ 4K LCoS Panel4K Driver Board



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
OE-CM02-TSLM017-A
Resolution: 1024×768,Contrast: 400:1@532nm,Optical utilization: 28%@532nm,Response Time: ≤16.7ms,Spectral range: 420nm-1200nm,Drive power: 12V 2A
4-6week $7207.78
OE-CM02-TSLM023-A
Resolution: 1024×768,Contrast: 400:1@532nm,Optical utilization: 35%@532nm,Response Time: ≤16.7ms,Spectral range: 420nm-1200nm,Drive power: 16V 1A or 12V 2A
4-6week $3403.68
OE-CM02-TSLM038-A
Resolution: 1024×768,Contrast: 40:1@1064nm,Optical utilization: 9%@1064nm,Response Time: ≤16.7ms,Spectral range: 420nm-1200nm,Drive power: 16V 1A or 12V 2A
4-6week $2702.92
OE-CM02-TSLM07U-A
Resolution: 1920×1080,Contrast: 150:1@635nm,Optical utilization: 12%@635nm,Response Time: ≤16.7ms,Spectral range: 420nm-1200nm,Drive power: 24V 1A or 5V 1A
4-6week $7207.78
OE-CM02-TSLM07U-AX2
Resolution: 1920×1080,Contrast: 150:1@635nm,Optical utilization: 12%@635nm,Response Time: ≤6.67ms,Spectral range: 420nm-1200nm,Drive power: 24V 1A or 5V 1A
4-6week $15,616.87-19,521.08
OE-CM02-TSLM14U-A
Resolution: 2048×1536,Contrast: 100:1@532nm,Optical utilization: 6%@532nm,Response Time: ≤22.2ms,Spectral range: 420nm-1200nm,Drive power: 24V 1A
4-6week $9910.70
OE-CM02-TSLM16U-A
Resolution: 1920×1080,Contrast: 40:1@808nm,Optical utilization: 2%@635nm,Response Time: ≤16.7ms,Spectral range: 420nm-1200nm,Drive power: 24V 1A
4-6week Request for quote
OE-CM02-FSLM-2K39-A02
Resolution: 1920×1080,Contrast: 600:1@532nm,Optical utilization: 67%@532nm,Response Time: ≤2ms,Spectral range: 420nm-650nm,Drive power: 5V 2A
4-6week $10211.03
OE-CM02-FSLM-2K70-A02
Resolution: 1920×1080,Contrast: 1000:1@532nm,Optical utilization: 61%@532nm,Spectral range: 420nm-1100nm,Drive power: 5V 3A
4-6week $10211.03
OE-CM02-FSLM-2K73-A01
Resolution: 2048×2048,Contrast: 1000:1,Optical utilization: 85%,Response Time: ≤30ms,Spectral range: 350nm-420nm,Drive power: 12V 3A
4-6week $20,301.93-25,377.41
OE-CM02-FSLM-2K73-A02/03/04
Resolution: 2048×2048,Contrast: 70:1,Optical utilization: 80%±5%@1064nm,Response Time: ≤60ms,Spectral range: 420nm-1700nm,Drive power: 12V 3A
4-6week $20,301.93-25,377.41
OE-CM02-FSLM-4K55-A
Resolution: 3840×2160,Contrast: 1200:1,Optical utilization: 53%@532nm,Response Time: ≤4ms,Spectral range: 400nm-1550nm,Drive power: 5V 3A
4-6week $25,811.21-32,264.01
