FROG - Multi Shot
Overview Specification and Software Accessories and Add-Ons Related Products Request a Quotation

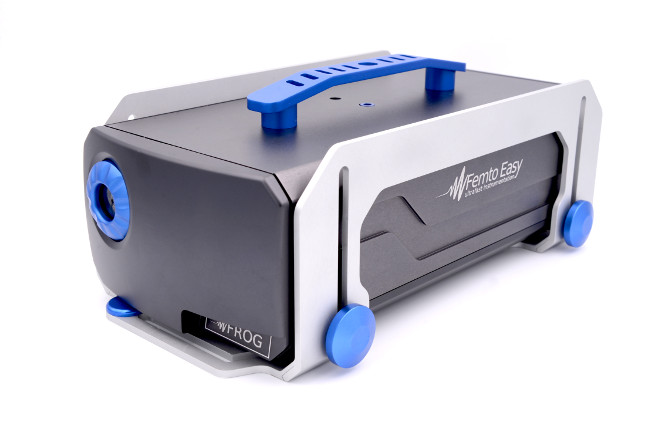

The Multi-Shot FROG(MS FROG) series

MS-FROG stands for Multi-Shot Frequency Resolved Optical Gating. The MS-FROG is based on second harmonic

generation, making it reliable and compact. It has been specially developed for laser sources with sub-nJ pulse energy.

 It allows the measurement of pulses from 4 fs to 80 ps. The high scan speed allows real-time operations for

measurement and optimization. The MS-FROG-SP allows the measurement of both ultrashort and long pulses thanks

to its resolution of 50 attoseconds in fine scan mode. Our MS-FROG integrates in-house built spectrometers specially

developed for FROG measurements. They guarantee high spectral resolution and the best performances for the

application of pulse characterization. Also they are fully configurable according to your laser specifications. On top of

that, our proprietary algorithm allows to extract information from each recorded spectra instantaneously, leading to real

time reconstruction of your pulses! Like every Femto Easy product, the MS-FROG is easy to install and use.





Key features

◆ User-friendly: no calibration and no tweaking necessary

◆ Versatile: instant-swap of spectrometer for different wavelength ranges

◆ Large pulse duration measurement range (from 4 fs to 80 ps)

◆ User-friendly and powerful software

◆ High sensitivity (sub-nJ pulse)

◆ Resolution of 50 as in fine scan mode


Options

⬫ Additional MISS spectrometer

⬫ Low energy

⬫ Phase matching

⬫ Few cycle pulse extension

⬫ Fiber input connector

⬫ Low repetition rate

⬫ Additional crystals



General Specifications

Download the specification sheet here: frog_multi_msfrog

MS-FROG models

MS-FROG

MS-FROG-SP

MS-FROG-LP

MS-FROG-SLP

Pulse   duration range

min

50 fs

5 fs

100 fs

25 fs

max

40 ps

40 ps

80 ps

80 ps

Fine   scan mode range

not applicable

5 - 50 fs

not applicable

25 - 500 fs

Accessible   spectral range (nm)

500 - 20001

Spectral   Window Δλ (nm)

From 200 to 700 1

Minimum   temporal Resolution

6.7 fs

standard : 6.7 fs

13.4 fs

standard : 13.4 fs

fine scan : 0.1 fs

fine scan : 0.2 fs

Scan   speed

> 65 ps/s

standard : > 65 ps/s

> 130 ps/s

standard : > 130 ps/s

fine scan : > 50 fs/s

fine scan : > 500 fs/s

Input   pulse repetition rate

100 Hz to GHz 2

Min   input pulse energy 3

1   MHz

50 pJ

10 nJ

50 pJ

1 nJ

100   MHz

5 pJ

1 nJ

5 pJ

100 pJ

Input   polarization

linear vertical

Detection

CMOS 12 Bits - 3 Mpx - 72 dB

PC   Interface

USB 3.1

Beam   height (mm)

69 - 148

Dimensions   (mm)

326 x 194 x 129

1 Effective spectral bandwidth to be defined within the accessible spectral range according to customer’s requirements. Additional spectrometers can be provided to address different spectral windows.

2 Low repetition rate available as an option.

3 Those values give an order of magnitude. The exact sensitivity depends on many parameters (pulse duration, beam profile, wavelength…)

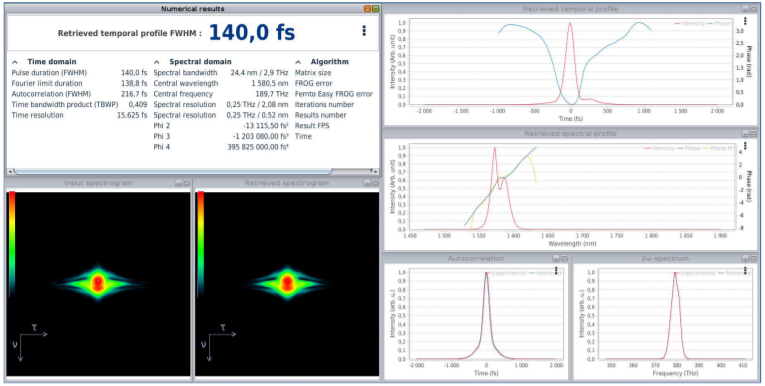

Software Interface

Supporting software and drivers for this product is available.

  • Live extraction of shot to shot pulse properties: temporal profile intensity and phase, fundamental spectrum and phase, Chirp, Third-order dispersion...

  • Several algorithms (including the Ptychographic Iterative Engine) are combined to enhance the reconstruction speed and quality

  • Enhanced background & hot pixels treatment, for optimum dynamic and signal to noise ratio

  • Client / Server interface, allowing remote control through network

  • All data exportable into most common formats



Accessories and Add-Ons

The following Accesories and Add-Ons are available on request.


Option

Description

Additional crystals

The   default MS-FROG configuration includes one crystal. To extend the wavelength   range of the device, additional plug&play crystals can be ordered and   swapped within the system in seconds

Additional MISS spectrometer

The   default MS-FROG configuration includes one imaging spectrometer MISS. To   extend the wavelength range of the device, additional plug&play MISS   spectrometers can be ordered and swapped within the system in seconds

Fiber input connector

Plug&play   collimation module with fiber connector. Can be mounted on the MS-FROG to   easily switch the input from free-space to fiber. No alignment required.

Low energy

Internal   module to increase the sensitivity of the MS-FROG when the laser power is too   weak

Low repetition rate

Synchronization   mode to be used when the laser repetition rate is low. Mandatory for 100 Hz   and lower, recommended from below 500 Hz

Phase matching

Default   MS-FROG configuration works for a given central wavelength. Phase matching   allows tuning the SHG crystal to measure different central wavelengths with   the best SNR



FROG Frequency-resolved Optical Gating

Model typeSingle-ShotMulti-Shot
Single-shotAccumulated multi-shot
Use caseSingle-pulse measurement, Shot-to-Shot measurementExtremely low energy pulses down to 5 pJ
Pulse duration rangeShort and mid-long pulsesShort and long pulses from 4 fs to 80 ps
Min pulse duration4 fs4 fs
Max pulse duration10 ps80 ps
Input Repetition RateSingle-Shot to GHz100 Hz to GHz
Spectral range (nm)480 - 2100500 - 2100
Spectral Window Δλ (nm)300 - 540200 - 700



Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Email Quotations

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 1 working days.


Local Same Day Service

-Singapore Main office:  Call us at +65 6996 0391 Office Hours: 9am - 6pm (+8GMT)
-China Shanghai Main office：Call us at +86 1500085 3620. Office Hours: 9am - 6pm (+8GMT)
For Other Internation sales office  click here.


Spectroscopy & Microscopy Solution

Check our solution page Spectroscopy Solutions | Microscopy Solutions


Scan Speed


Search Reset
Compare Model Drawings & Specs Min Pulse Duration Range (fs) Scan Speed Max Pulse Duration Range (ps) Min Temporal Resolution (fs) Availability Reference Price
(USD)
MS-FROG
 50> 65 ps/s406.7 4-6 Weeks Request for quote
MS-FROG-SP M
 5standard : > 65 ps/s fine scan : > 50 fs/s40standard : 6.7 fine scan : 0.1 4-6 Weeks Request for quote
MS-FROG-LP
 100> 130 ps/s8013.4 4-6 Weeks Request for quote
MS-FROG-SLP
 25standard : > 130 fine scan : > 500 80standard : 13.4 fine scan : 0.2 4-6 Weeks Request for quote

MS-FROG-SLP - Parameter

Spectral Range (nm)
500 - 2000

PC Interface
USB 3.1

Min Pulse Duration Range (fs)
25

Scan Speed
standard : > 130 fine scan : > 500

Input Pulse Rep Rate
100 Hz to GHz

Input Polarization
Linear Vertical

Detection
CMOS 12 Bits – 3 Mpx – 72 dB

Beam Height (mm)
69 - 148

Dimensions (mm)
326 x 194 x 129

Spectral Window Δλ (nm)
200 to 700

Min Input Pulse Energy (1MHz)
1 nJ

Max Pulse Duration Range (ps)
80

Min Temporal Resolution (fs)
standard : 13.4 fine scan : 0.2

Min Input Pulse Energy (100MHz)
100 pJ

Fine Scan Mode Range(fs)
25 – 500

MS-FROG-LP - Parameter

Spectral Range (nm)
500 - 2000

PC Interface
USB 3.1

Min Pulse Duration Range (fs)
100

Scan Speed
> 130 ps/s

Input Pulse Rep Rate
100 Hz to GHz

Input Polarization
Linear Vertical

Detection
CMOS 12 Bits – 3 Mpx – 72 dB

Beam Height (mm)
69 - 148

Dimensions (mm)
326 x 194 x 129

Spectral Window Δλ (nm)
200 to 700

Min Input Pulse Energy (1MHz)
500 pJ

Max Pulse Duration Range (ps)
80

Min Temporal Resolution (fs)
13.4

Min Input Pulse Energy (100MHz)
50 pJ

Fine Scan Mode Range(fs)
n/a

MS-FROG-SP M - Parameter

Spectral Range (nm)
500 - 2000

PC Interface
USB 3.1

Min Pulse Duration Range (fs)
5

Scan Speed
standard : > 65 ps/s fine scan : > 50 fs/s

Input Pulse Rep Rate
100 Hz to GHz

Input Polarization
Linear Vertical

Detection
CMOS 12 Bits – 3 Mpx – 72 dB

Beam Height (mm)
69 - 148

Dimensions (mm)
326 x 194 x 129

Spectral Window Δλ (nm)
200 to 700

Min Input Pulse Energy (1MHz)
10 nJ

Max Pulse Duration Range (ps)
40

Min Temporal Resolution (fs)
standard : 6.7 fine scan : 0.1

Min Input Pulse Energy (100MHz)
1 nJ

Fine Scan Mode Range(fs)
5 – 50

MS-FROG - Parameter

Spectral Range (nm)
500 - 2000

PC Interface
USB 3.1

Min Pulse Duration Range (fs)
50

Scan Speed
> 65 ps/s

Input Pulse Rep Rate
100 Hz to GHz

Input Polarization
Linear Vertical

Detection
CMOS 12 Bits – 3 Mpx – 72 dB

Beam Height (mm)
69 - 148

Dimensions (mm)
326 x 194 x 129

Spectral Window Δλ (nm)
200 to 700

Min Input Pulse Energy (1MHz)
500 pJ

Max Pulse Duration Range (ps)
40

Min Temporal Resolution (fs)
6.7

Min Input Pulse Energy (100MHz)
50 pJ

Fine Scan Mode Range(fs)
n/a

MS-FROG-SLP - Download

Download

MS-FROG-LP - Download

Download

MS-FROG-SP M - Download

Download

MS-FROG - Download

Download
