CM Series Monochromator/Spectrograph
Digikröm CM Series Specification Sheet Downloads & Drivers Features CM Series Accessories Request a Quotation

The Digikröm CM Series is a one-eighth meter, Czerny-Turner type monochromator/spectrograph. This Series is made up of a group of products: The CM110/112 Monochromator and the CMSP110/112 spectrometer. The focal lengths of both the Monochromator and Spectrometer offered is  110mm. Unlike other small devices that provide only one optical orientation, the Digikröm CM/CMSP 110 can accommodate both a straight through and a right-angle orientation from the source. For more information on right angle orientation, download the manual or open the Features tab.

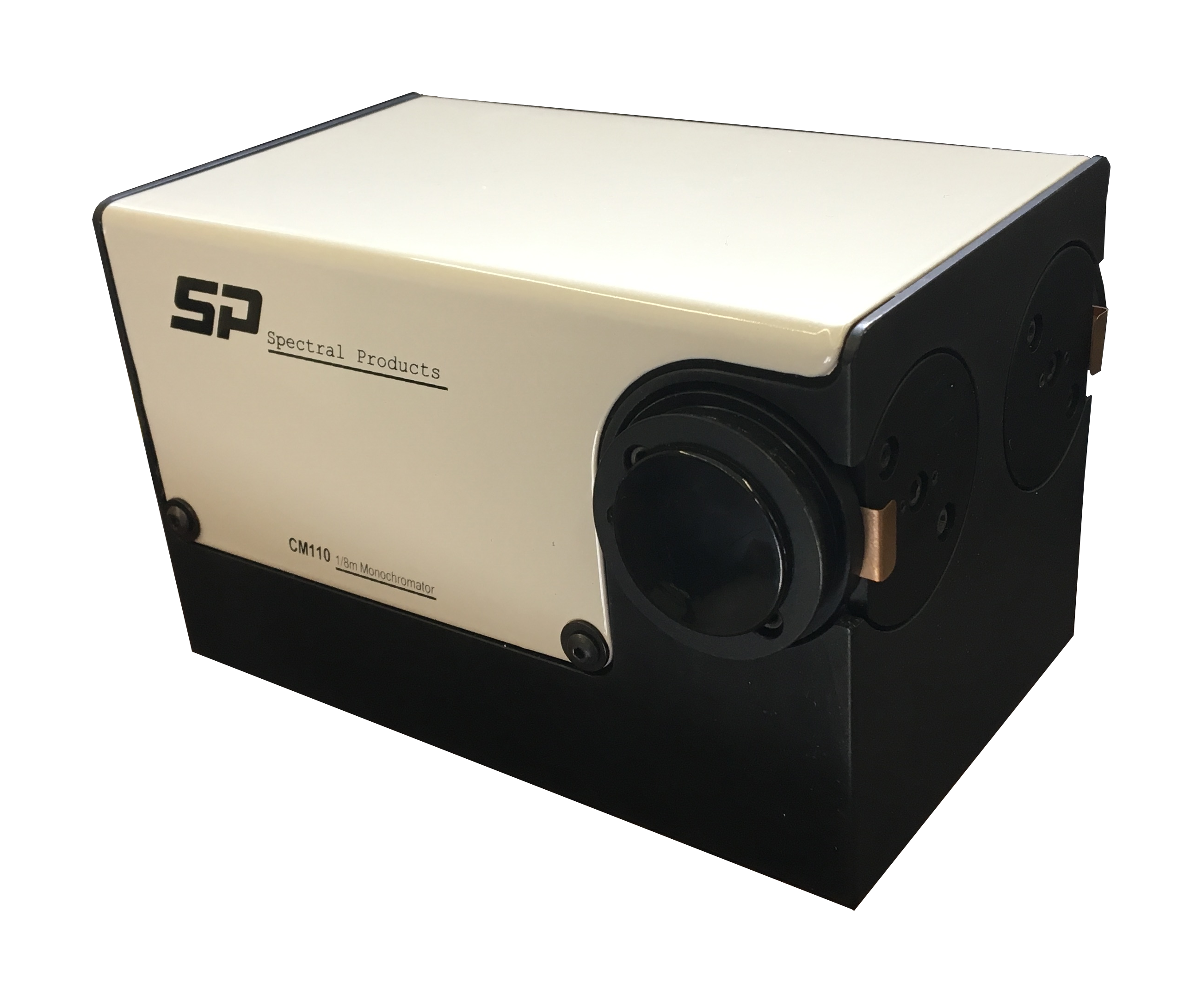

 CM Monochromator 110 / CM Spectrometer 110

Single piece base construction, direct grating drive, and anti-backlash gearing ensure the unit is rugged and stable enough for demanding applications. Loaded with SP Optics and able to hold two high quality gratings, the CM110 is optimal for spectrometry in the UV to IR spectra with the necessary optics available.

Visit the Specification Sheet Tab for details on performance and resolution.

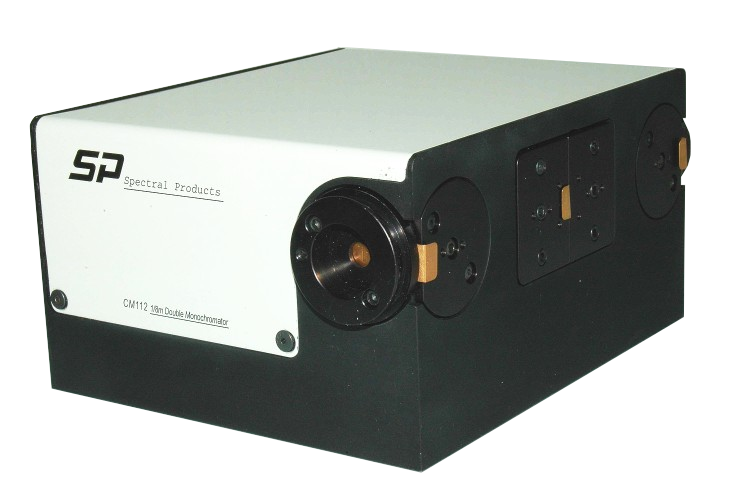

CM Monochromator 112 / CM Spectrographer 112 - Double Series Monochromator

The CM112 are two single monochromators in series. The exit slit of the first monochromator is the entrance slit of the second. The two monochromators act as a double filter with the rejection of stray light being almost the square of the single monochromator value. As an additive instrument, the first grating spreads the spectrum over an angular range while the second grating then doubles this dispersion, achieving twice the resolution of a single 1/8m monochromator. As a subtractive instrument, the first monochromator selects a bandpass wihle the second monochromator then removes the temporal and angular aberrations introduced by the angular spectral dispersion in the first monochromator.


The CM112 supercedes ordinary monochromators with its second substractive monochromator which can recombine multiple wavelenghts in the bandpass and instead of creating multiple, overlapping images, it creates a clear image. Also, its subtractive dispersion mode can also utilize its second monochromator to equalize the optical path lengths such that broadening is reduced to a minimum.

Visit the Specification Sheet for details on performance and resolution.

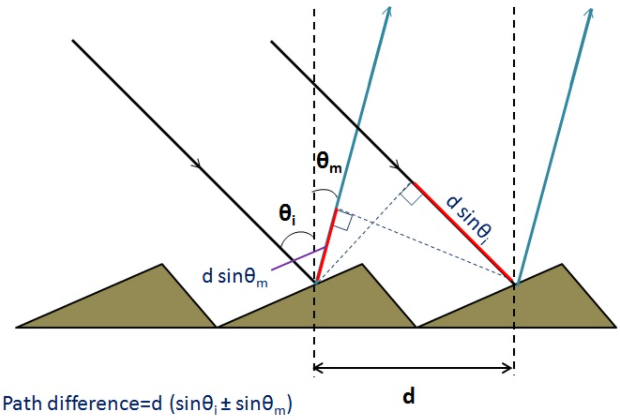

Grating - Resolution Calculation

Please inquire for Grating-Resolution Calculation. Web Calculator coming soon.



Gratings and Optical Resolutions

Gratings are to be orderd along with CM112 and CM110 allowing users to order their desired grating to meet their needs.

Click here to view gratings.


Operation and Use

Each Digikröm contains its own microprocessor, it is controlled via a standard serial port (RS232), IEEE-488 port (GPIB) option, or with SP's hand-held controller option. This compatibility allows your computer, for example, to make automatic adjustments of bandwidth through motorized slits, to select gratings, choose scan speeds and to store your changes in memory. This versatility is intrinsic to the instrument.

See the Downloads & Drivers Tab for available drivers.


General Specifications

*Terminology guide available at the bottom of the page.

Model

CM110

CM112

Operational Wavelength

Operational   from UV to IR range with corresponding optics.

Design

Czerny-Turner: Dual Grating Turrets

Double cascaded Czerny-Turner: Dual Grating Turrets

Focal Length

110mm   each section

f/#

3.9

Beam Path

Standard:   Straight through.

On   Request: Right angle.

Wavelength Drive

Worm and wheel with   micro-processor control   and anti-backlash gearing

Dual worm and wheel   with   micro-processor control and anti-backlash gearing

Wavelength Precision

0.2nm (with 1200gv/mm   grating)

0.1nm   (Additive)

0.2nm (Subtractive)

Wavelength Accuracy

±0.2nm   (with 1200gv/mm grating)

±0.3nm   (Additive)

±0.6nm (Subtractive)

Slewing Speed

>100nm/s

Stray light

<10-5

<10-9

Slits

Standard   set includes: 0.125mm, 0.15mm,   0.3mm, 0.6mm, 1.2mm & 2.4mm x 4.0mm.

For other sizes, please Contact us.

Max Resolution

Please Inquire for grating - resolution        calculation. Web Calculator Coming Soon!

<0.5nm(Additive)

<1nm(Subtractive)

~1nm   (with 120gv/mm grating and 0.15mm slit)

Band Pass

~1nm   (with 1200gv/mm grating and 0.15mm slit)

Gratings

1-2 gratings (30x30mm) must be purchased. See   Gratings (CM)   page.

Click here to view Gratings.

2 or 4 gratings (30x30mm) must be purchased. See     Gratings (CM) page*

Click here to view   Gratings.

Software

Demonstration   control program and LabView   Driver included

Power

UL   Listed 110 / 220V power pack

Interface

Standard:   RS232

Weight

1.15     kg

2.3kg

Warranty

1     Year

Accessories

·           Handheld control   module with function keys   and display for local control.

·           RS232 to USB interface   cables

·           Gold optics

See accessories for more options. Click here for   accessories.


Schematic




















Terminology Guide

Wavelength Precision

It is the ability of the device to return to the same wavelength. The measured wavelength by the equipment should not drift over the range provided.

Wavelength Accuracy

It is a measure of the deviation of the wavelength when the standard wavelength is measured. You would expect the vaue of the wavelength to be the standard value with the deviation everytime you take a measurement.

Wavelength Resolution

It is the the ability of the instrument to differentiate between different wavelength of light.

Slewing speed

It is the rate which the wavelength is being read.

Band pass

The range of frequencies or wavelengths that can pass through the slits.




Software Downloads:

Manual:


CM110/112 User Manual






Software



image.png CM110_Demo_Labview2012_2018_Source.zip







image.png CM110/112 Demo Labview 2012 Executable







image.png CM110/112 Labview Executable Demo








image.png CM110/112 Labview Demo Source Code







image.pngCM110/112 Labview GPIB Executable Demo




image.pngCM110/112 Labview GPIB Source Code




image.pngLabview Runtime Engine


NOTE: please install the Labview Runtime Engine and Labview Full Visa (the latest version), if your computer doesn't have any of these.






image.pngLabview VISA








CM110/112 Visual Basic Executable Demo





CM110/112 Visual Basic Demo Source Code




Learn C++ from Scratch: The Complete Guide for BeginnersCM110/112 Visual C++ Executable Demo




Learn C++ from Scratch: The Complete Guide for BeginnersCM110/112 Visual C++ Source Demo



Monochromator Full CD Software Installation




CM/CMSP110

§  Compact size (5.25 x 3.25 x 3.25   inches)   & Connection to   computer via RS 232 interface.

§  Scans in both directions. Programmable in Angstrom, nanometres, microns,  wavenumbers, or eV.

§  Double-grating turrets allows for broad  spectral range coverage.

§  User can change slit independently

§  May be factory configured as a monochromator or a spectrograph

§  Monochromator can also be factory configured for right angle or straight through beam path.



Application

Suitable for fluorescence, radiometry, process control, colorimetry, tuneable   filtering, Raman   spectroscopy, among others;



CM/CMSP112

§  Compact   Size (5.25   x   6.25 x 3.25 inches) & Connection to computer   via   RS 232 interface.

§  Scans in both directions. Programmable in Angstrom, nanometres, microns,  wavenumbers, or eV.

§  Dual double-grating turrets with automatic grating change allows for broad spectral range coverage.

§  May be factory configured as a monochromator or a spectrograph

§  Monochromator can also be factory configured for right angle or straight through beam path.


Application

Subtractive dispersion mode minimizes image distortion and   pulse spread, with sub-picosecond residual broadening of regular   monochromators.

Additive mode gives increased dispersion and low stray light for Raman fluorescence studies



Services Provided

            Changing of Gratings

            For change of grating services, Please Contact Us.





            Converting to a Spectrograph

            The CM series products can be converted to be used as spectrograph mode when using a CCD camera. This unit has significant design differences, such as a different focusing mirror and exit port adapter.

            Contact us for a quote on converting your CM110/112 to a CMSpectral Products110/112 or vice versa.



Operation - Key Operational Highlights
Information from the Features page is with reference to the Manual of the CM Series available in the Downloads Tab.

§  Changing Slits

§  Optical Path Configuration






CM Accessories

Part N/O

ITEM

Description

CM1201

Controller:   Handheld control module

Handheld   control module: 2 Line x 20 character   LCD display.
Allows local operation of CM110/CM112 monochromators and CMSP 110/112 spectrographs

AB202

Filter   Mount

Single   filter carrier that mounts directly   between CM unit and accessories

IR110

IR   coating for internal optics

For   use with CM110. Infrared (gold) coatings on CM110 mirrors.
  Enhances transmission by up to 40% between 600 - 1100nm.

(Not   suitable for work below 600nm)

IR112

IR   coating for internal optics

For   use with CM112. Infrared (gold) coatings   on CM112 mirrors.
  Enhances transmission by up to 80% between 600 - 1100nm.

Special   Slit     Sizes

Special   Slit Size

CMFS   010 Pair: 10µm slits

CMFS   020 Pair: 20µm slits
  CMFS 025 Pair: 25µm slits
  CMFS 050 Pair: 50µm slits

MCL-100

Collimator: Universal   Output Conditioner

An   output module designed to work with both CM   and DK model   monochromators. The adjustable position of the internal lens   allows   the user to condense or collimate for UV to NIR wavelengths.

Click here to access and purchase from the Accessories Page.


Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.


Stray Light

Design


Search Reset
Compare Model Drawings & Specs Design Wavelength Precision (nm) Wavelength Accuracy (nm) Stray Light Availability Price
(USD)
CM110
1/8 meter Compact Monochromator 		Czerny-Turner: Dual Grating Turrets0.2±0.2<10-5 In Stock Request for quote
CMSP110
1/8 meter Compact Spectrograph 		Czerny-Turner: Dual Grating Turrets0.2±0.2<10-5 In Stock Request for quote
CM112
Double 1/8 meter Compact Monochromator 		Double Cascaded Czerny-Turner: Dual Grating Turrets0.1±0.3<10-9 In Stock Request for quote
CMSP112
Double 1/8 meter Compact Spectrograph 		Double Cascaded Czerny-Turner: Dual Grating Turrets0.1±0.3<10-9 In Stock Request for quote

CMSP112 - Parameter

Focal Length (mm)
110

Resolution
<0.5 - 1 nm

Design
Double Cascaded Czerny-Turner: Dual Grating Turrets

Wavelength Precision (nm)
0.1

Wavelength Accuracy (nm)
±0.3

Slewing Speed (nm/s)
>100

Stray Light
<10-9

Slits (mm)
0.125 - 4.0

Bandpass (nm)
1nm

CM112 - Parameter

Focal Length (mm)
110

Resolution
<0.5 - 1 nm

Design
Double Cascaded Czerny-Turner: Dual Grating Turrets

Wavelength Precision (nm)
0.1

Wavelength Accuracy (nm)
±0.3

Slewing Speed (nm/s)
>100

Stray Light
<10-9

Slits (mm)
0.125 - 4.0

Bandpass (nm)
1nm

CMSP110 - Parameter

Focal Length (mm)
110

Resolution
<0.5 - 1 nm

Design
Czerny-Turner: Dual Grating Turrets

Wavelength Precision (nm)
0.2

Wavelength Accuracy (nm)
±0.2

Slewing Speed (nm/s)
>100

Stray Light
<10-5

Slits (mm)
0.125 - 4.0

Bandpass (nm)
1nm

CM110 - Parameter

Focal Length (mm)
110

Resolution
<0.5 - 1 nm

Design
Czerny-Turner: Dual Grating Turrets

Wavelength Precision (nm)
0.2

Wavelength Accuracy (nm)
±0.2

Slewing Speed (nm/s)
>100

Stray Light
<10-5

Slits (mm)
0.125 - 4.0

Bandpass (nm)
1nm
