Products / Optics /Prisms /Porro Prism /UVFS Porro Prism /
UVFS Porro Prism
Overview Coating Graph Demo

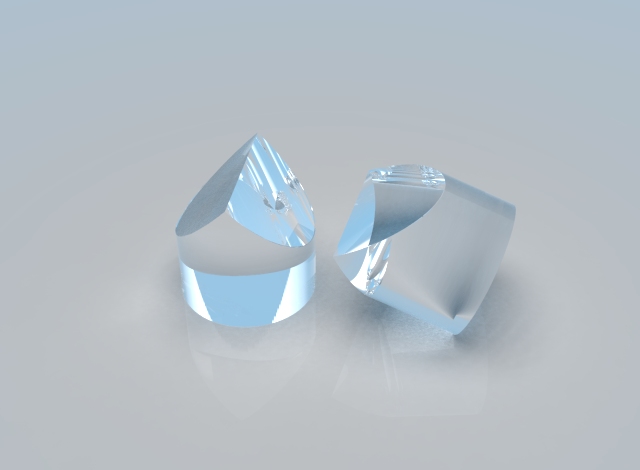

UVFS Porro Prism, Prism www.simtrum.com

Porro Prism is used to alter the orientation of an image through the use of reflection. Incoming light beam enters the face of the prism, reflected along the roof surface through total internal reflection twice before the light beam exits through the same surface parallel to the incoming light beam. An image traveling through a Porro prism is rotated by 180° but not inverted.


Fused Silica is made with materials of high purity, making it ideal for UV or higher energy applications as it is transparent over a wider range of wavelengths. It is scratch resistant and has low thermal expansion coefficient alongside good optical qualities. For high-energy applications, the extreme purity of fused silica eliminates

microscopic defect sites that could lead to laser damage. Has

excellent transmission in the UV dimension.


General Specifications

Shape

Porro Prism

Material

UVFS

Diameter(mm)

12.7

Dimensional Tolerance(mm)

±0.2

Height(mm)

12.7

Deviation Angle(degree)

180°±10 arc seconds

Roof Angle Tolerance(arcsec)

<5

Flatness

λ/10@633nm

Surface Quality

40/20

Clear Aperture

>80%

Chamfer

0.5mmx45°

Wavefront Distortion

<λ/4@633nm





Notes:

Diameter (mm)

Coating


Search Reset
Compare Model Drawings & Specs Coating Diameter (mm) Height (mm) Deviation Angle (arcsec) Availability Price
(USD)
UVFS-PRP-12.7-12.7-1064
UVFS, Porro Prism, Ø=12.7mm, Height=12.7mm, Coating: R<0.25% @1064nm 		R<0.25% @1064nm12.712.710 In Stock $325.00
UVFS-PRP-12.7-12.7-400-700
UVFS, Porro Prism, Ø=12.7mm, Height=12.7mm, Coating: R<0.5% @400-700nm 		R<0.5% @400-700nm12.712.710 In Stock $325.00
UVFS-PRP-12.7-12.7-532
UVFS, Porro Prism, Ø=12.7mm, Height=12.7mm, Coating: R<0.25% @532nm 		R<0.25% @532nm12.712.710 In Stock $325.00
UVFS-PRP-12.7-12.7-U
UVFS, Porro Prism, Ø=12.7mm, Height=12.7mm, Uncoated 		Uncoated12.712.710 In Stock $212.50

UVFS-PRP-12.7-12.7-U - Parameter

Type
Porro Prism

Material
UVFS

Coating
Uncoated

Diameter (mm)
12.7

Surface Quality
40-20

Clear Aperture
>80%

Chamfer
<0.5mmx45°

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/10@633nm

Roof Angle Tolerance (arcsec)
<5

Height (mm)
12.7

Height Tolerance (mm)
+0/-0.2

Deviation Angle (arcsec)
10

UVFS-PRP-12.7-12.7-532 - Parameter

Type
Porro Prism

Material
UVFS

Coating
R<0.25% @532nm

Diameter (mm)
12.7

Surface Quality
40-20

Clear Aperture
>80%

Chamfer
<0.5mmx45°

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/10@633nm

Roof Angle Tolerance (arcsec)
<5

Height (mm)
12.7

Height Tolerance (mm)
+0/-0.2

Deviation Angle (arcsec)
10

UVFS-PRP-12.7-12.7-400-700 - Parameter

Type
Porro Prism

Material
UVFS

Coating
R<0.5% @400-700nm

Diameter (mm)
12.7

Surface Quality
40-20

Clear Aperture
>80%

Chamfer
<0.5mmx45°

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/10@633nm

Roof Angle Tolerance (arcsec)
<5

Height (mm)
12.7

Height Tolerance (mm)
+0/-0.2

Deviation Angle (arcsec)
10

UVFS-PRP-12.7-12.7-1064 - Parameter

Type
Porro Prism

Material
UVFS

Coating
R<0.25% @1064nm

Diameter (mm)
12.7

Surface Quality
40-20

Clear Aperture
>80%

Chamfer
<0.5mmx45°

Dimensional Tolerance (mm)
+0/-0.2

Flatness
<λ/10@633nm

Roof Angle Tolerance (arcsec)
<5

Height (mm)
12.7

Height Tolerance (mm)
+0/-0.2

Deviation Angle (arcsec)
10

UVFS-PRP-12.7-12.7-U - Download

UVFS-PRP-12.7-12.7-532 - Download

UVFS-PRP-12.7-12.7-400-700 - Download

UVFS-PRP-12.7-12.7-1064 - Download
