Laser Safety Glasses

Our Laser Safety glass is CE Certified, with 4 types of frame designs (frame A-D), the protection wavelength designs for Ultraviolet, Visible, and Infrared LasersNot only are our glasses built in different models for your superior taste, we have different types of material coating to cater to your optical and safety needs. No need to worry about safety or your vision. With Simtrum's latest designs, affordable high-quality glasses or full protection wont be a choice you have to make.


How to choose your safety glasses

1. Pick your frame of choice

2. Use OD Summary Spec. to determin the part number based on prefered O.D and Wavelength

3. Use the filter function to select the part number.



Part #Optical DensityLB Rating
GL1200 - 540nm OD 5+315 - 540nm DIRM LB5
GL2200 - 540nm OD 7+315 - 540nm DIRM LB6
GL3200 - 540nm OD 6+ /   900 -1100nm OD5+ 315 - 540nm DIRM LB5   / 900 -1070nm DIR LB5
GL4585 - 595nm OD   4+ 585 - 595nm DIR LB4
GL5200 - 400nm OD 6+ /   600 - 700nm OD 4+620 - 700nm DIR LB4
GL6200 - 400nm OD 6+ /   600 - 700nm OD 6+620 - 700nm DIR LB5
GL7200 - 400nm OD 6+ /   630 - 660nm OD 3+ / 800 -830nm OD5+ 630 - 660nm DIR LB3 /   800 -830nm DIR LB5
GL8200 - 400nm OD 6+ /   630 - 660nm OD 2+ / 800 -1100nm OD5+ 630 - 660nm DIR LB2 /   800 -1100nm DIR LB5
GL9200 - 400nm OD 6+ /   630 - 660nm OD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+630 - 660nm DIR LB3 /   800 -830nm DIR LB3 / 900 -1100nm DIR LB5
GL10200 - 400nm OD 6+ /   630 - 660nm OD 4+ / 800 -1100nm OD5+ 630 - 660nm DIR LB4 /   800 -1100nm DIR LB5
GL11200 - 400nm OD 6+ / 740 - 850nm OD 5+ / 780 -830nm OD 6+740 - 850nm DIR LB5 /   780 -830nm DIR LB6
GL12200 - 400nm OD 6+ /   740 - 1100nm OD 5+ / 780 -1070nm OD7+740 - 1100nm DIR LB5   / 800 -1070nm IR LB7
GL13200 - 400nm OD 6+ /   800 - 1700nm OD 4+ / 900 -1100nm OD5+800 - 1400nm DIR LB4   / 1400 - 1700nm DI LB3
GL14200 - 400nm OD 6+ /   800 - 1100nm OD 5+ / 1060 - 1070nm OD 7+800 - 1100nm DIR LB5   / 1000 - 1070 IR LB7
GL152700 - 3000nm OD   6+ 2940nm DI LB3
GL169000 - 11000nm OD   6+ 10600nm DI LB3
GL17200-1400nm





GL1

GL2

GL3

GL5

GL6

GL7

GL8

GL9

GL10

GL11

GL12

GL13

GL14

GL15

GL16



Notes:

Transmittance

Frame

Optical Density


Search Reset
Compare Model Drawings & Specs Optical Density LB Rating Transmittance Availability Price

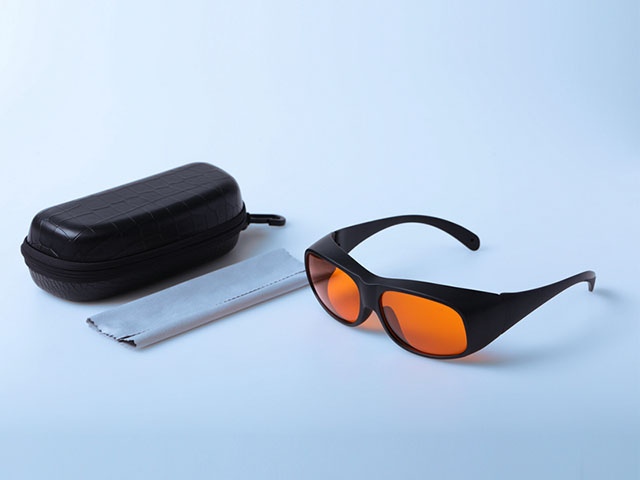

GL1A
Laser Safety Glasses, Visible Light Transmission 50% Frame A
200 -540nm OD 5+315 - 540nmDIRM LB550% In Stock $99.00

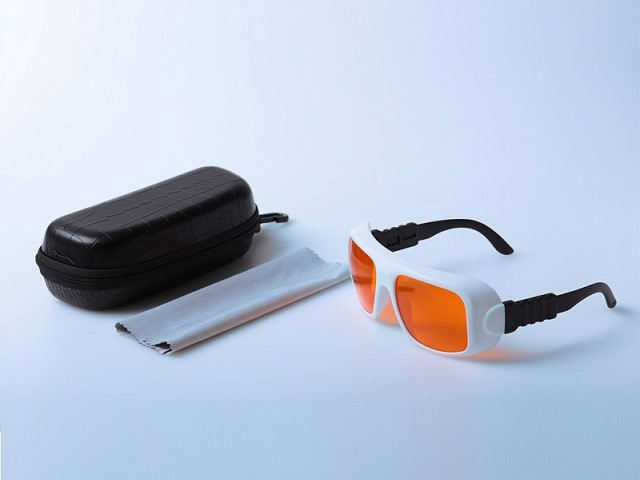

GL1B
Laser Safety Glasses, Visible Light Transmission 50% Frame B
200 -540nm OD 5+315 - 540nmDIRM LB550% In Stock $99.00

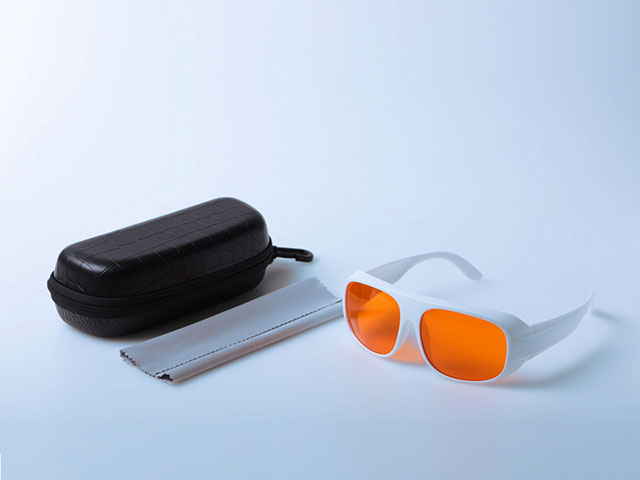

GL1C
Laser Safety Glasses, Visible Light Transmission 50% Frame C
200 -540nm OD 5+315 - 540nmDIRM LB550% In Stock $99.00

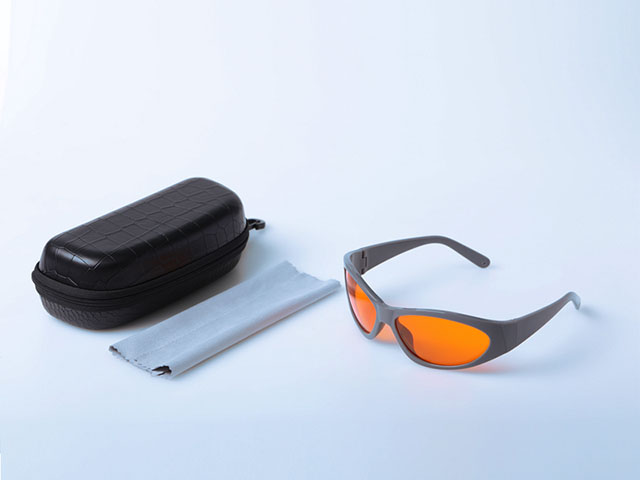

GL1D
Laser Safety Glasses, Visible Light Transmission 50% Frame D
200 -540nm OD 5+315 - 540nmDIRM LB550% In Stock $99.00

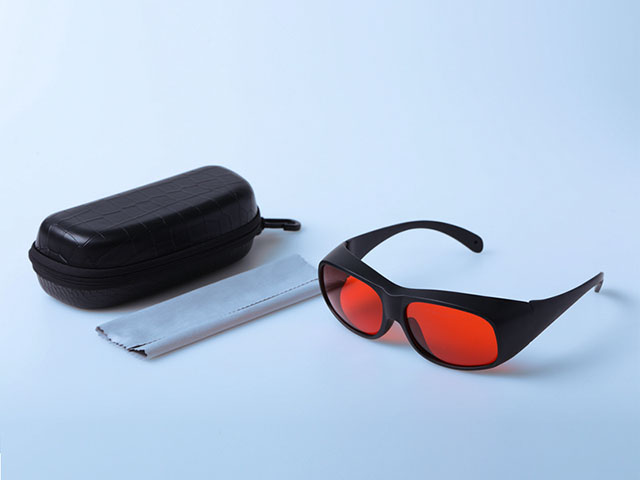

GL2A
Laser Safety Glasses, Visible Light Transmission 30% Frame A
200 - 540nm OD 7+315- 540nmDIRM LB630% In Stock $140.00

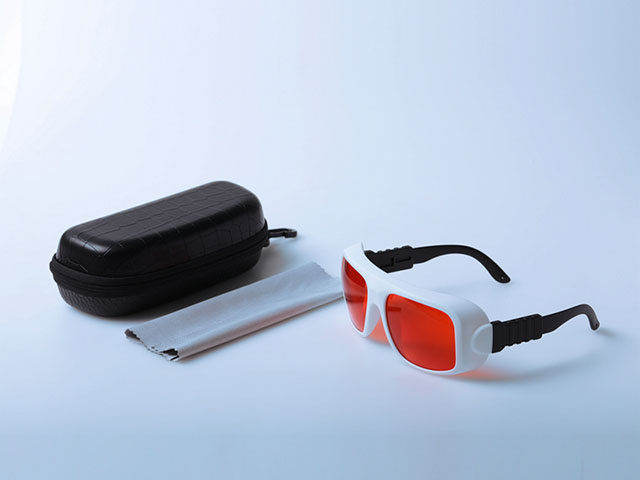

GL2B
Laser Safety Glasses, Visible Light Transmission 30% Frame B
200 - 540nm OD 7+315- 540nmDIRM LB630% In Stock $140.00

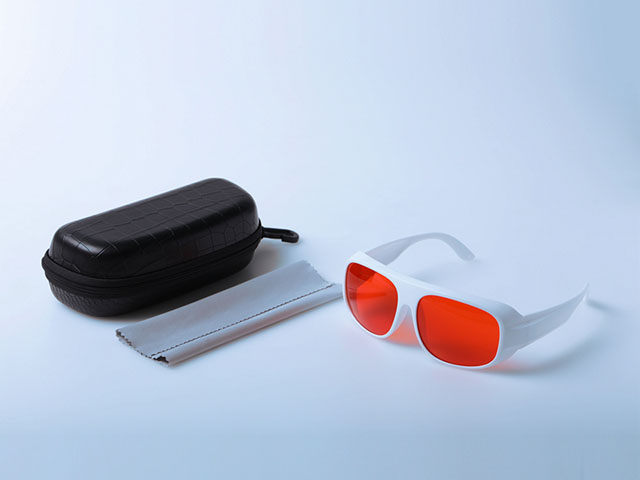

GL2C
Laser Safety Glasses, Visible Light Transmission 30% Frame C
200 - 540nm OD 7+315- 540nmDIRM LB630% In Stock $140.00
GL2D
Laser Safety Glasses, Visible Light Transmission 30% Frame D
200 - 540nm OD 7+315- 540nmDIRM LB630% In Stock $140.00

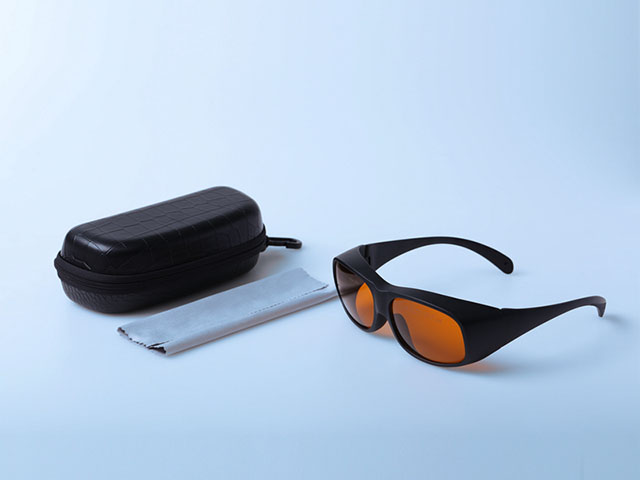

GL3A
Laser Safety Glasses, Visible Light Transmission 30% Frame A
200 - 540nmOD 6+ / 900 -1100nm OD5+ 315- 540nm DIRM LB5 / 900 -1070nm DIR LB530% In Stock $0.00
GL3B
Laser Safety Glasses, Visible Light Transmission 30% Frame B
200 - 540nmOD 6+ / 900 -1100nm OD5+ 315- 540nm DIRM LB5 / 900 -1070nm DIR LB530% In Stock $0.00

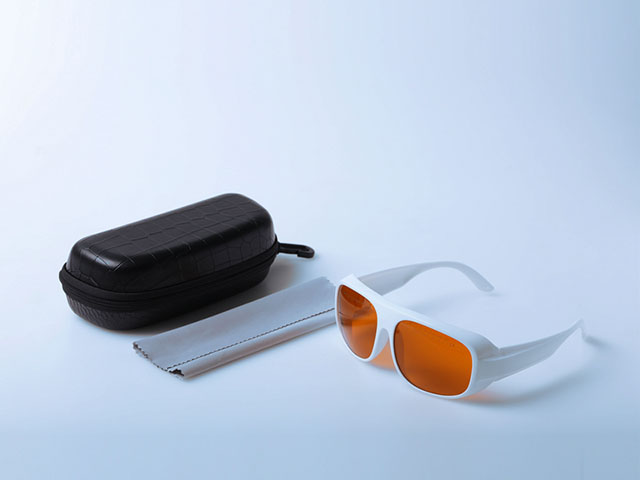

GL3C
Laser Safety Glasses, Visible Light Transmission 30% Frame C
200 - 540nmOD 6+ / 900 -1100nm OD5+ 315- 540nm DIRM LB5 / 900 -1070nm DIR LB530% In Stock $0.00

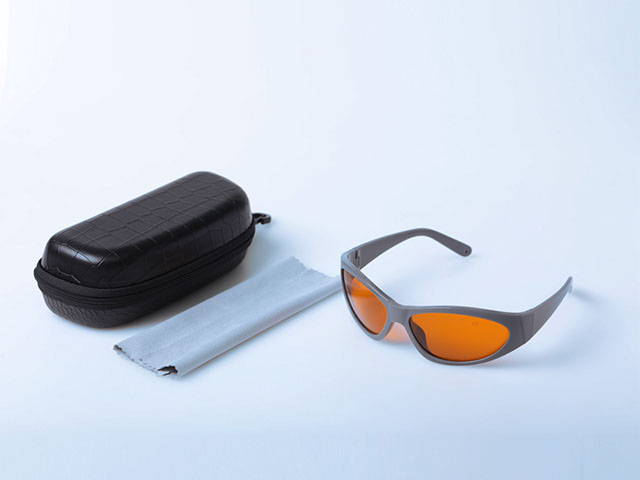

GL3D
Laser Safety Glasses, Visible Light Transmission 30% Frame D
200 - 540nmOD 6+ / 900 -1100nm OD5+ 315- 540nm DIRM LB5 / 900 -1070nm DIR LB530% In Stock $0.00
GL4A
Laser Safety Glasses, Visible Light Transmission 30% Frame A
585 - 595nm OD 4+ 585 - 595nmDIR LB430% In Stock $0.00
GL4B
Laser Safety Glasses, Visible Light Transmission 30% Frame B
585 - 595nm OD 4+ 585 - 595nmDIR LB430% In Stock $0.00
GL4C
Laser Safety Glasses, Visible Light Transmission 30% Frame C
585 - 595nm OD 4+ 585 - 595nmDIR LB430% In Stock $0.00
GL4D
Laser Safety Glasses, Visible Light Transmission 30% Frame D
585 - 595nm OD 4+ 585 - 595nmDIR LB430% In Stock $0.00

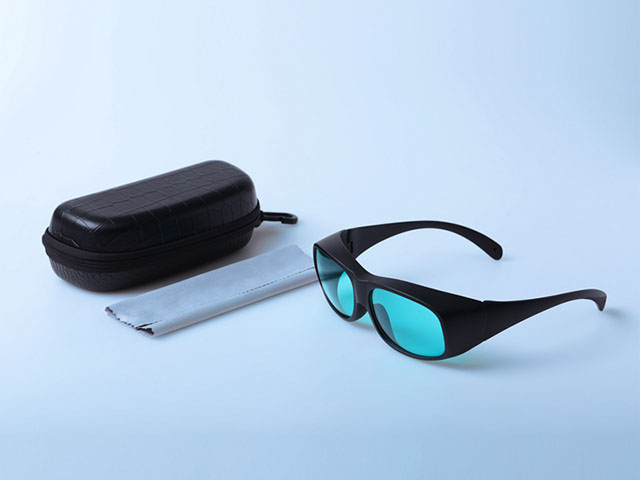

GL5A
Laser Safety Glasses, Visible Light Transmission 50% Frame A
200 - 400nmOD 6+ / 600 - 700nmOD 4+620 - 700nmDIR LB450% In Stock $0.00

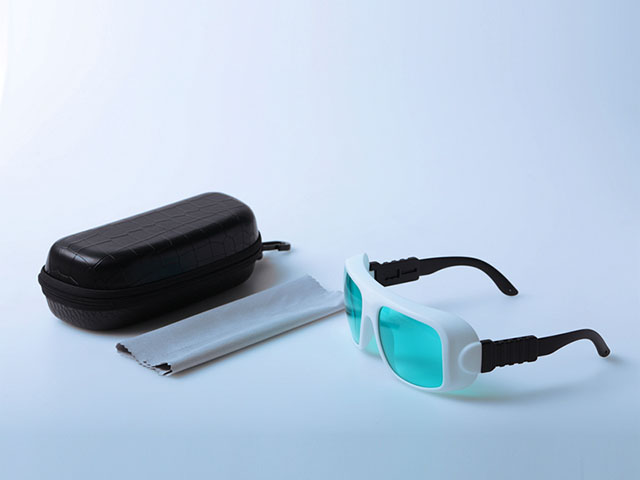

GL5B
Laser Safety Glasses, Visible Light Transmission 50% Frame B
200 - 400nmOD 6+ / 600 - 700nmOD 4+620 - 700nmDIR LB450% In Stock $0.00

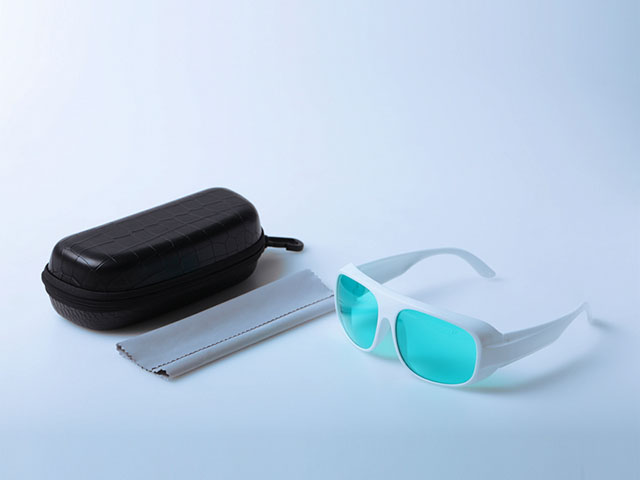

GL5C
Laser Safety Glasses, Visible Light Transmission 50% Frame C
200 - 400nmOD 6+ / 600 - 700nmOD 4+620 - 700nmDIR LB450% In Stock $0.00

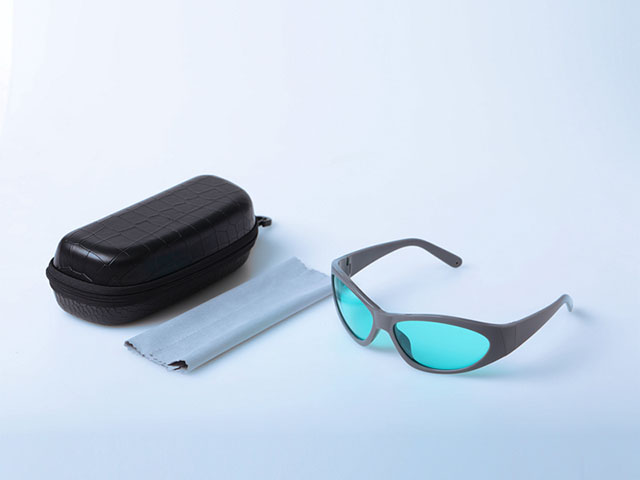

GL5D
Laser Safety Glasses, Visible Light Transmission 50% Frame D
200 - 400nmOD 6+ / 600 - 700nmOD 4+620 - 700nmDIR LB450% In Stock $0.00

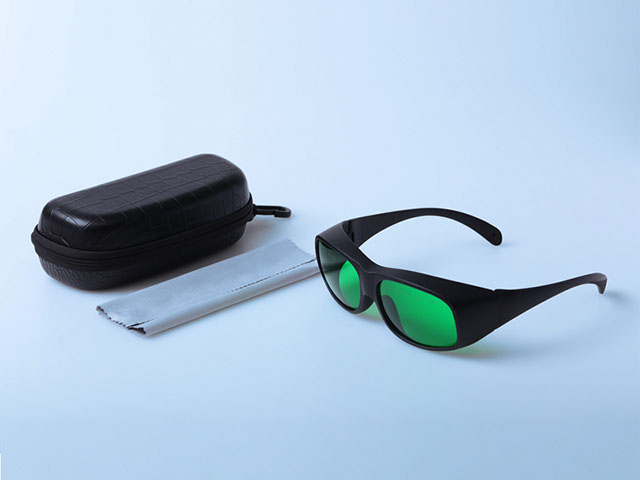

GL6A
Laser Safety Glasses, Visible Light Transmission 30% Frame A
200 - 400nmOD 6+ / 600 - 700nmOD 6+620 - 700nmDIR LB530% In Stock $0.00
GL6B
Laser Safety Glasses, Visible Light Transmission 30% Frame B
200 - 400nmOD 6+ / 600 - 700nmOD 6+620 - 700nmDIR LB530% In Stock $0.00
GL6C
Laser Safety Glasses, Visible Light Transmission 30% Frame C
200 - 400nmOD 6+ / 600 - 700nmOD 6+620 - 700nmDIR LB530% In Stock $0.00

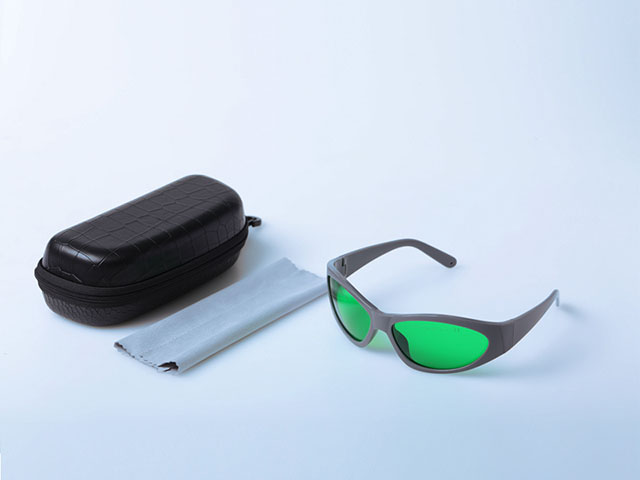

GL6D
Laser Safety Glasses, Visible Light Transmission 30% Frame D
200 - 400nmOD 6+ / 600 - 700nmOD 6+620 - 700nmDIR LB530% In Stock $0.00

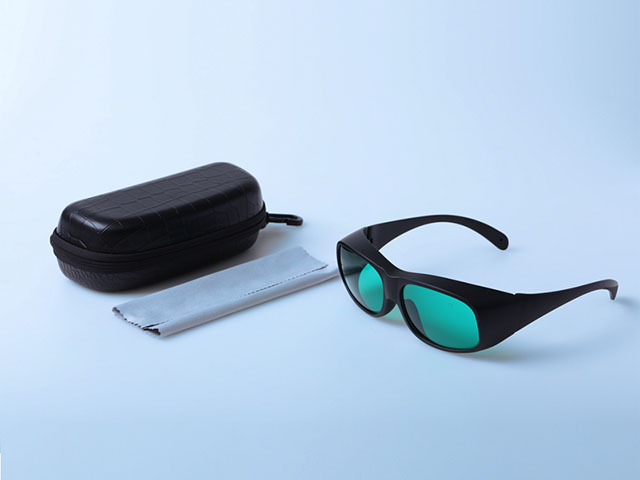

GL7A
Laser Safety Glasses, Visible Light Transmission 30% Frame A
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+ 630 - 660nm DIR LB3 / 800 -830nm DIR LB5 30% In Stock $0.00
GL7B
Laser Safety Glasses, Visible Light Transmission 30% Frame B
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+ 630 - 660nm DIR LB3 / 800 -830nm DIR LB5 30% In Stock $0.00

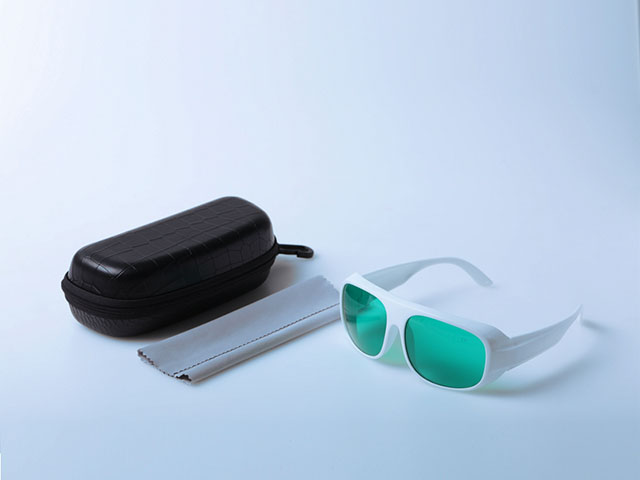

GL7C
Laser Safety Glasses, Visible Light Transmission 30% Frame C
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+ 630 - 660nm DIR LB3 / 800 -830nm DIR LB5 30% In Stock $0.00

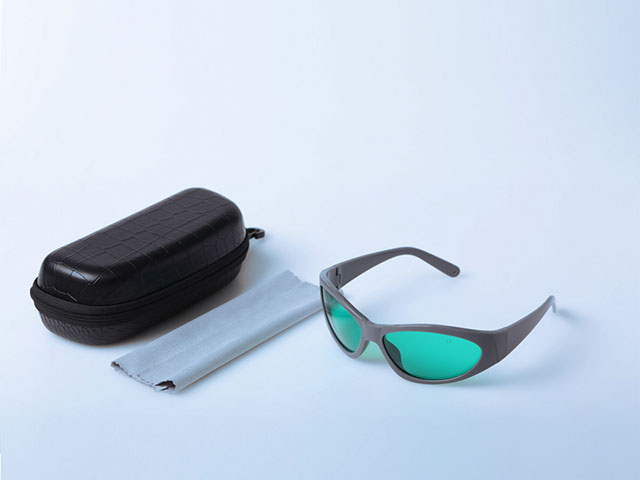

GL7D
Laser Safety Glasses, Visible Light Transmission 30% Frame D
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+ 630 - 660nm DIR LB3 / 800 -830nm DIR LB5 30% In Stock $0.00

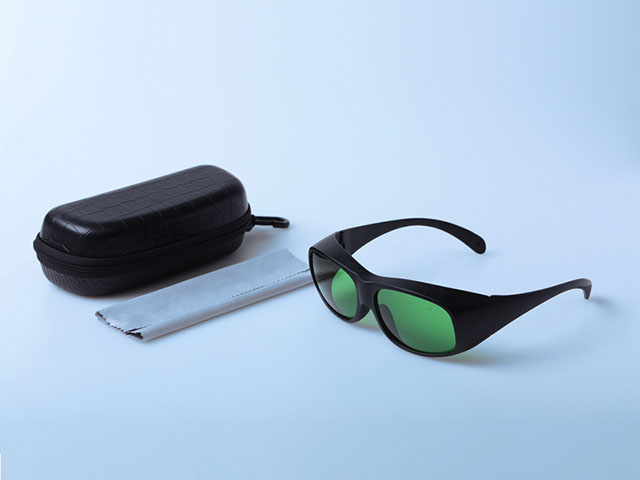

GL8A
Laser Safety Glasses, Visible Light Transmission 35% Frame A
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+ 630- 660nm DIR LB2 / 800 -1100nm DIR LB535% In Stock $0.00

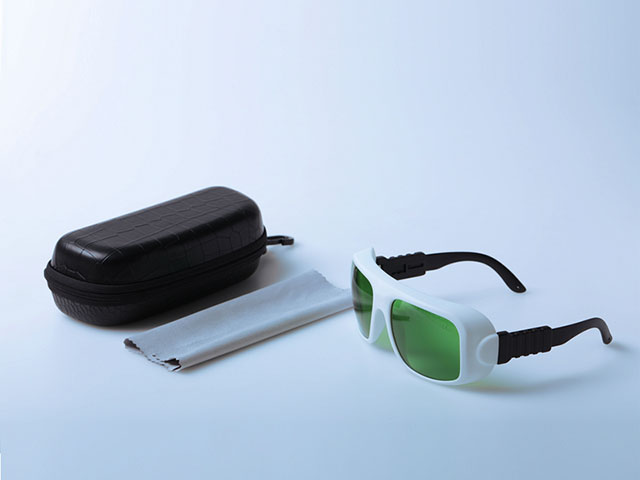

GL8B
Laser Safety Glasses, Visible Light Transmission 35% Frame B
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+ 630- 660nm DIR LB2 / 800 -1100nm DIR LB535% In Stock $0.00

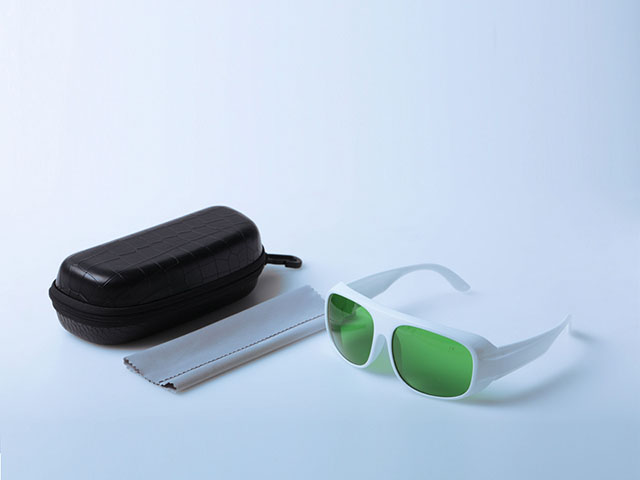

GL8C
Laser Safety Glasses, Visible Light Transmission 35% Frame C
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+ 630- 660nm DIR LB2 / 800 -1100nm DIR LB535% In Stock $0.00

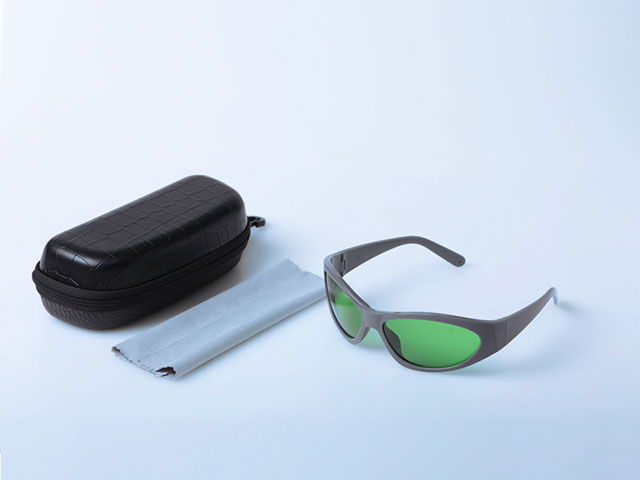

GL8D
Laser Safety Glasses, Visible Light Transmission 35% Frame D
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+ 630- 660nm DIR LB2 / 800 -1100nm DIR LB535% In Stock $0.00

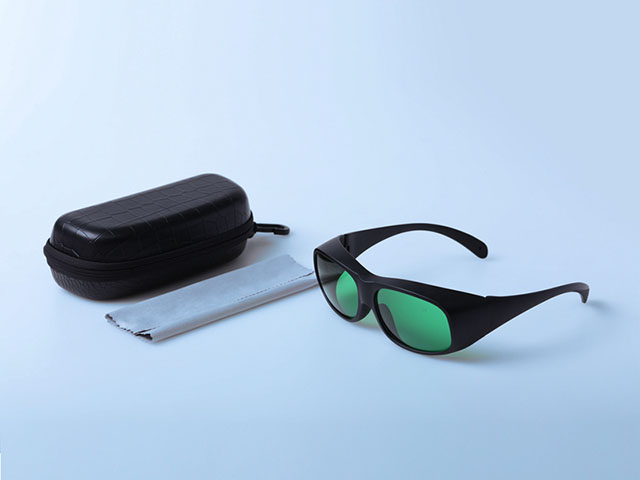

GL9A
Laser Safety Glasses, Visible Light Transmission 37% Frame A
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5 37% In Stock $0.00

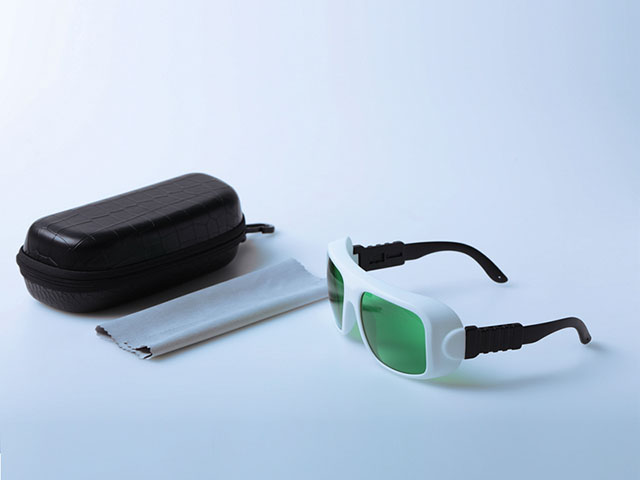

GL9B
Laser Safety Glasses, Visible Light Transmission 37% Frame B
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5 37% In Stock $0.00

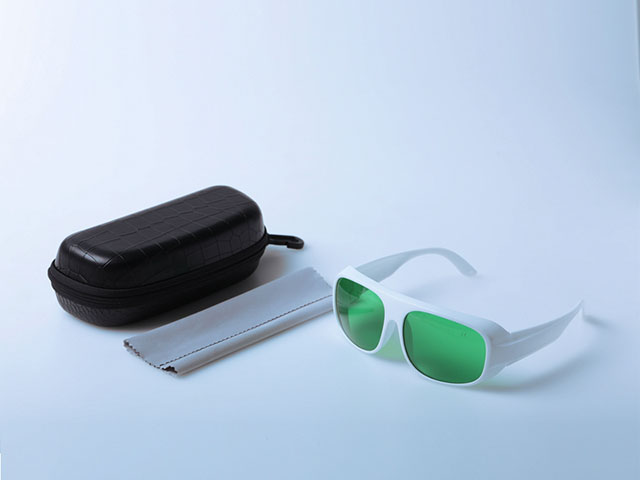

GL9C
Laser Safety Glasses, Visible Light Transmission 37% Frame C
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5 37% In Stock $0.00
GL9D
Laser Safety Glasses, Visible Light Transmission 37% Frame D
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5 37% In Stock $0.00

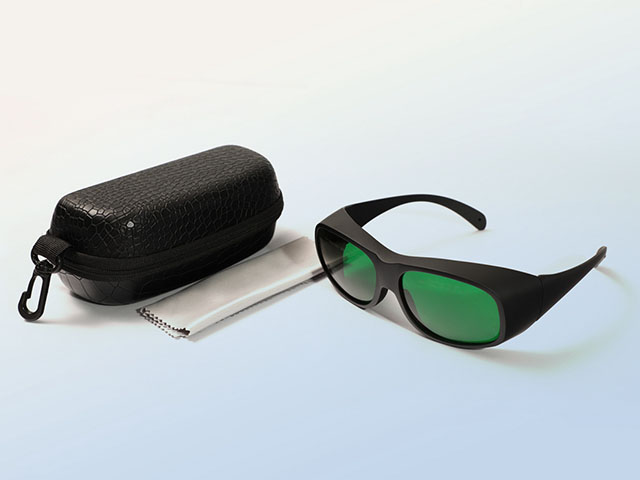

GL10A
Laser Safety Glasses, Visible Light Transmission 20% Frame A
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+ 630 - 660nm DIR LB4 / 800 -1100nm DIR LB5 20% In Stock $0.00

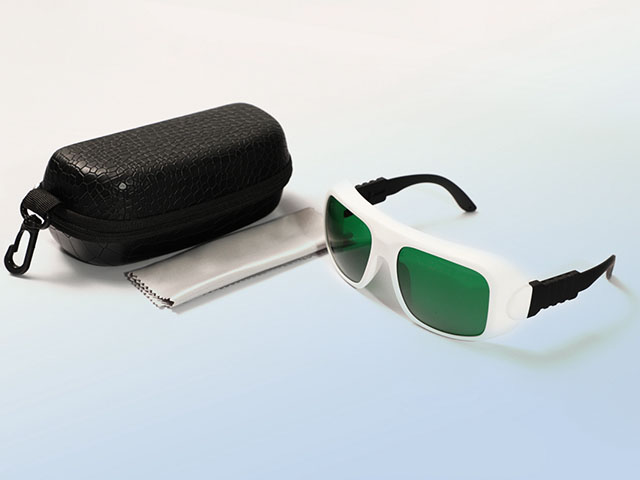

GL10B
Laser Safety Glasses, Visible Light Transmission 20% Frame B
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+ 630 - 660nm DIR LB4 / 800 -1100nm DIR LB5 20% In Stock $0.00

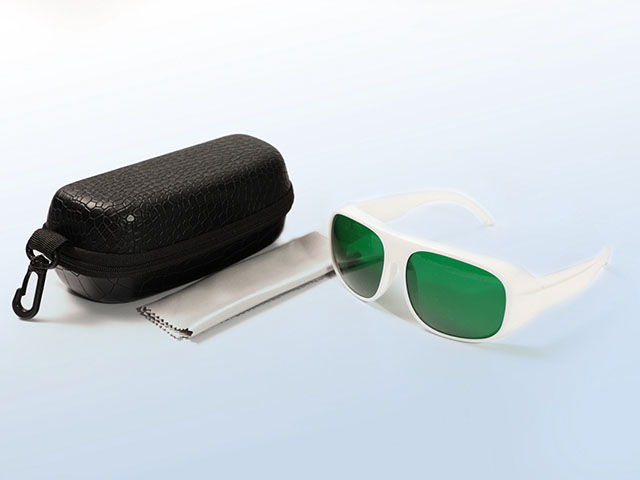

GL10C
Laser Safety Glasses, Visible Light Transmission 20% Frame C
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+ 630 - 660nm DIR LB4 / 800 -1100nm DIR LB5 20% In Stock $0.00

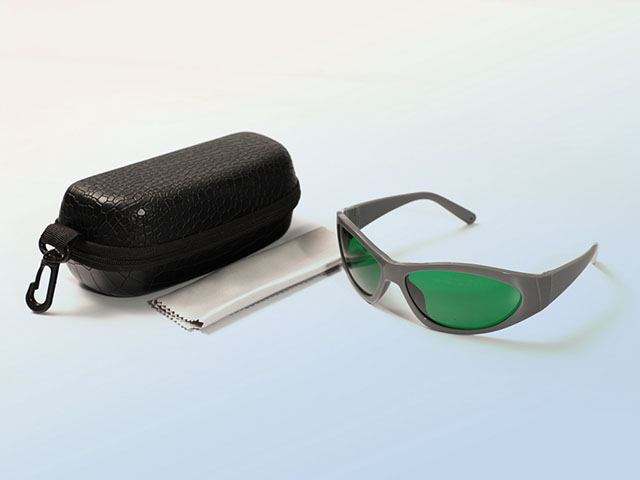

GL10D
Laser Safety Glasses, Visible Light Transmission 20% Frame D
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+ 630 - 660nm DIR LB4 / 800 -1100nm DIR LB5 20% In Stock $0.00

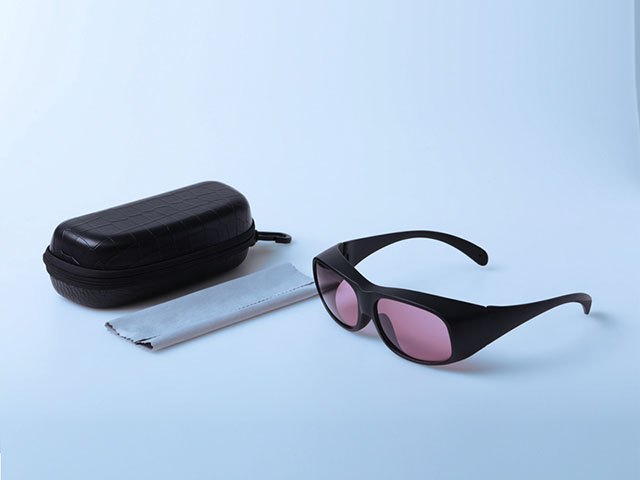

GL11A
Laser Safety Glasses, Visible Light Transmission 45% Frame A
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+740- 850nmDIR LB5 / 780 -830nm DIR LB645% In Stock $0.00

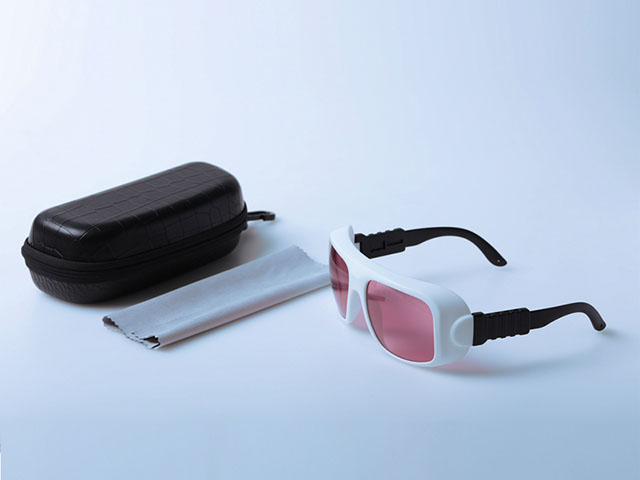

GL11B
Laser Safety Glasses, Visible Light Transmission 45% Frame B
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+740- 850nmDIR LB5 / 780 -830nm DIR LB645% In Stock $0.00

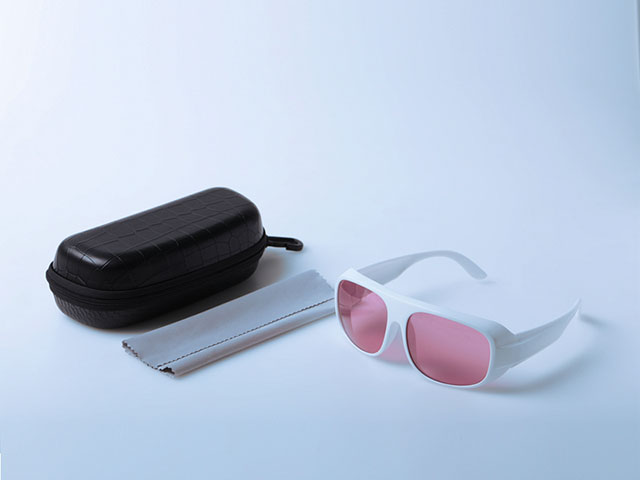

GL11C
Laser Safety Glasses, Visible Light Transmission 45% Frame C
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+740- 850nmDIR LB5 / 780 -830nm DIR LB645% In Stock $0.00

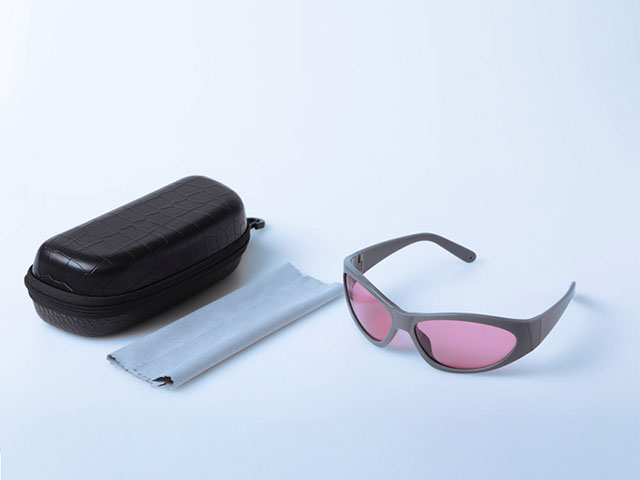

GL11D
Laser Safety Glasses, Visible Light Transmission 45% Frame D
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+740- 850nmDIR LB5 / 780 -830nm DIR LB645% In Stock $0.00

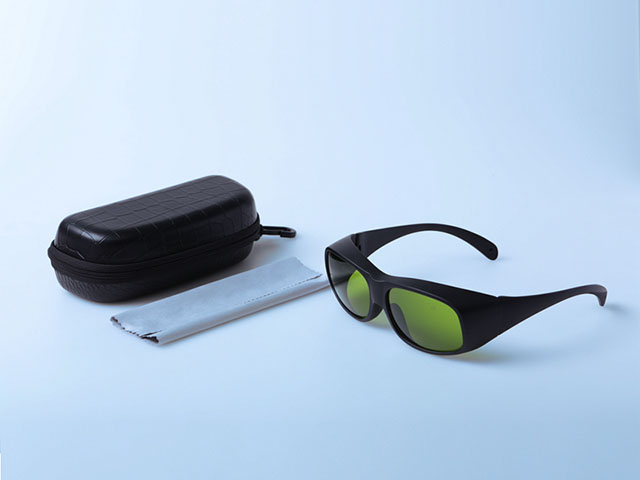

GL12A
Laser Safety Glasses, Visible Light Transmission 40% Frame A
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+740- 1100nm DIR LB5 / 800 -1070nm IRLB7 40% In Stock $123.00
GL12B
Laser Safety Glasses, Visible Light Transmission 40% Frame B
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+740- 1100nm DIR LB5 / 800 -1070nm IRLB7 40% In Stock $123.00

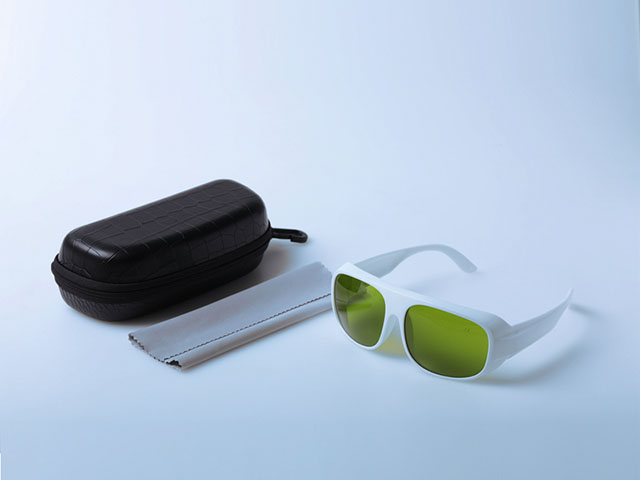

GL12C
Laser Safety Glasses, Visible Light Transmission 40% Frame C
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+740- 1100nm DIR LB5 / 800 -1070nm IRLB7 40% In Stock $123.00
GL12D
Laser Safety Glasses, Visible Light Transmission 40% Frame D
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+740- 1100nm DIR LB5 / 800 -1070nm IRLB7 40% In Stock $123.00
GL13A
Laser Safety Glasses, Visible Light Transmission 40% Frame A
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3 40% In Stock $0.00

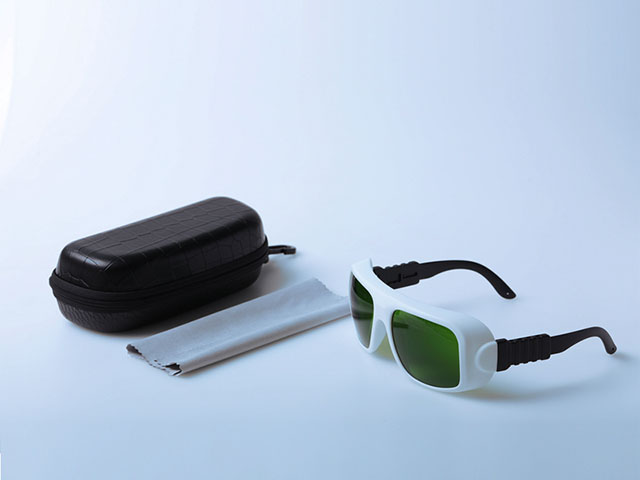

GL13B
Laser Safety Glasses, Visible Light Transmission 40% Frame B
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3 40% In Stock $0.00

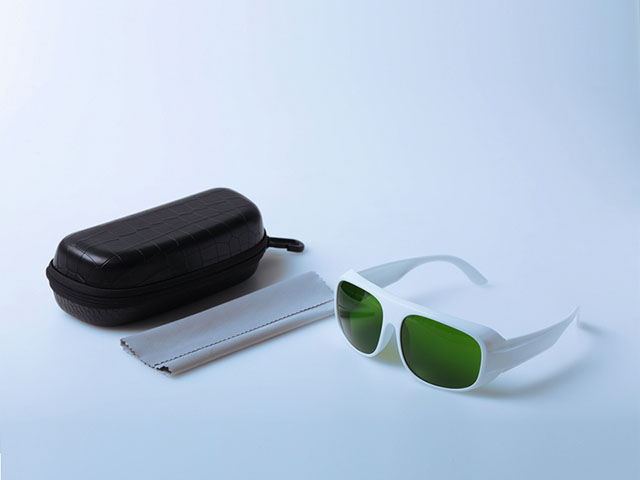

GL13C
Laser Safety Glasses, Visible Light Transmission 40% Frame C
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3 40% In Stock $0.00

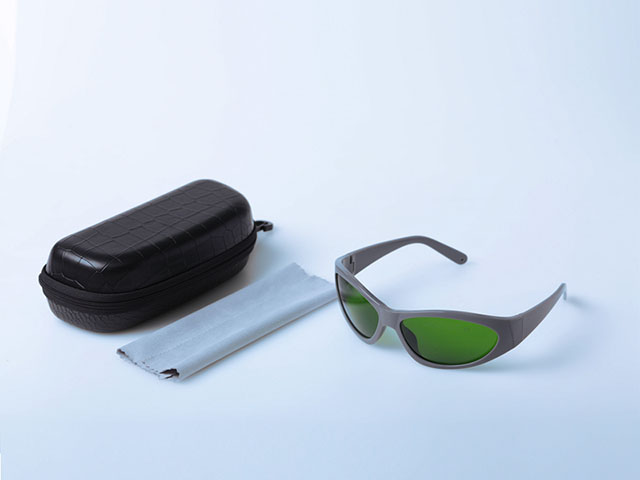

GL13D
Laser Safety Glasses, Visible Light Transmission 40% Frame D
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3 40% In Stock $0.00

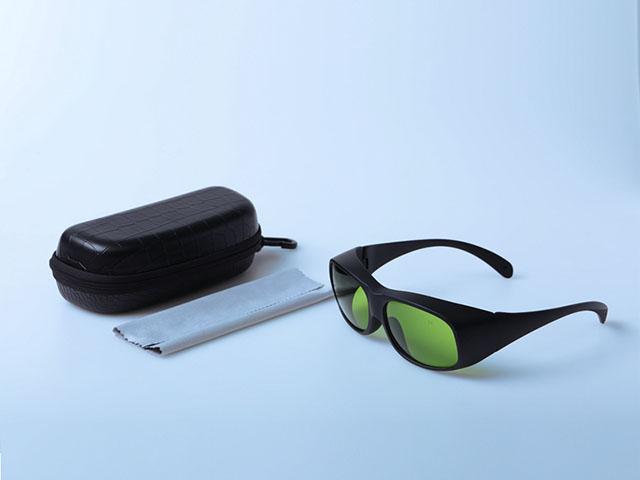

GL14A
Laser Safety Glasses, Visible Light Transmission 60% Frame A
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+800- 1100nmDIR LB5 / 1000 - 1070 IR LB7 60% In Stock $0.00

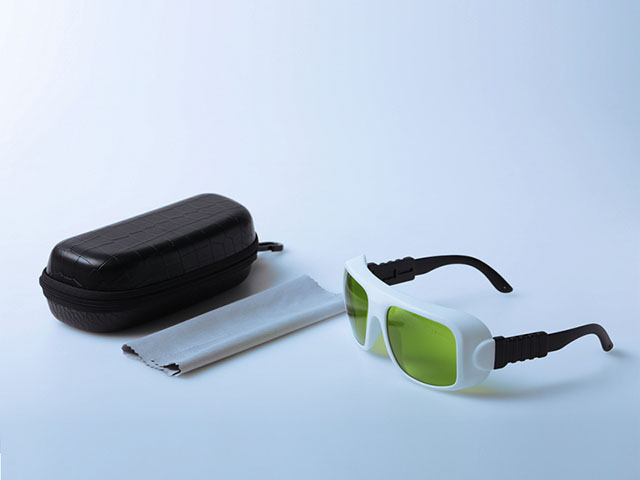

GL14B
Laser Safety Glasses, Visible Light Transmission 60% Frame B
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+800- 1100nmDIR LB5 / 1000 - 1070 IR LB7 60% In Stock $0.00

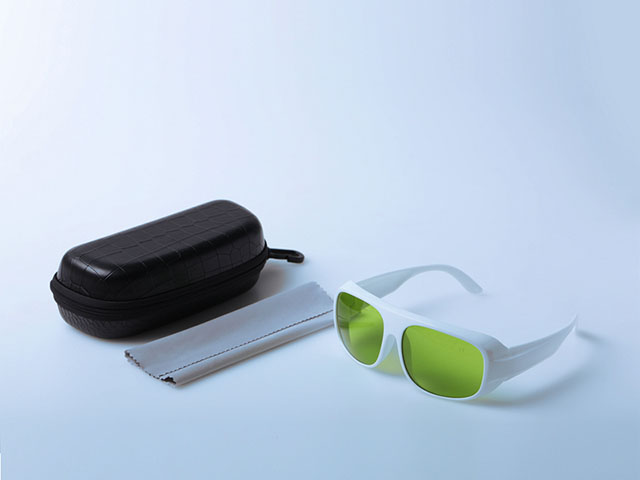

GL14C
Laser Safety Glasses, Visible Light Transmission 60% Frame C
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+800- 1100nmDIR LB5 / 1000 - 1070 IR LB7 60% In Stock $0.00

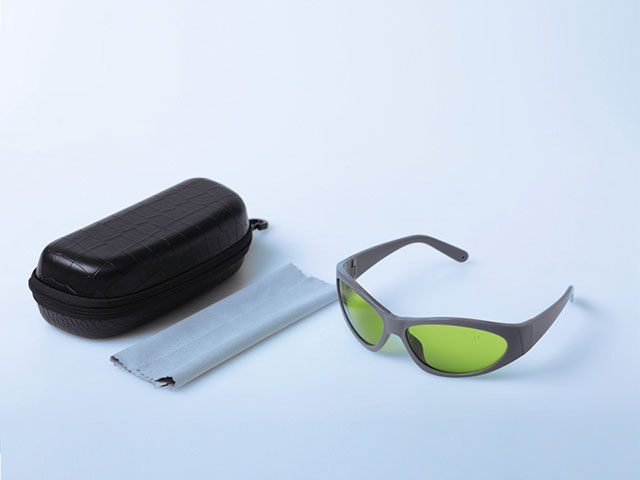

GL14D
Laser Safety Glasses, Visible Light Transmission 60% Frame D
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+800- 1100nmDIR LB5 / 1000 - 1070 IR LB7 60% In Stock $0.00

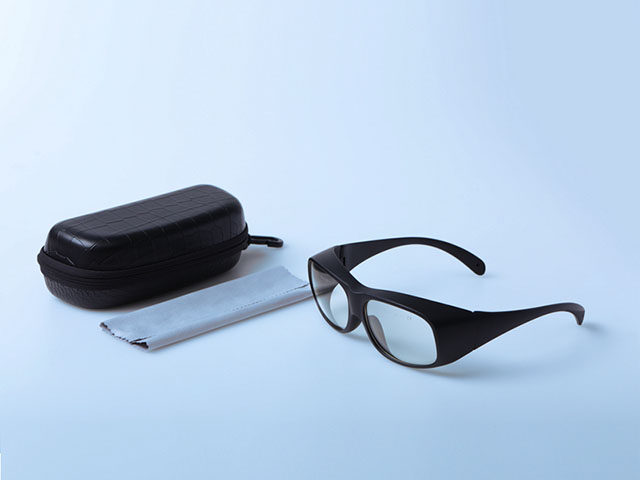

GL15A
Laser Safety Glasses, Visible Light Transmission 80% Frame A
2700 - 3000nm OD 6+ 2940nm DI LB3 80% In Stock $0.00

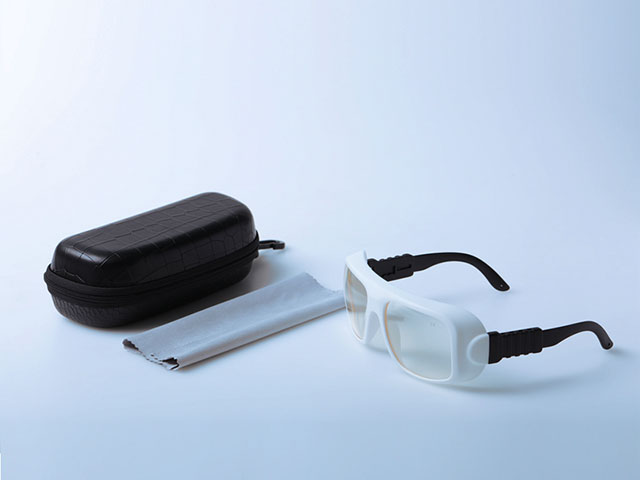

GL15B
Laser Safety Glasses, Visible Light Transmission 80% Frame B
2700 - 3000nm OD 6+ 2940nm DI LB3 80% In Stock $0.00

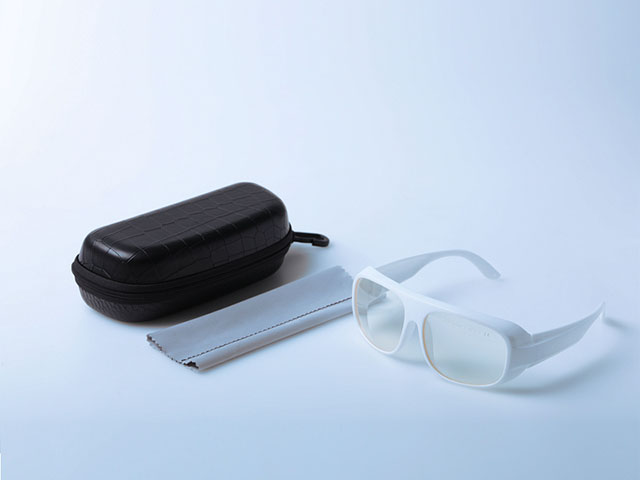

GL15C
Laser Safety Glasses, Visible Light Transmission 80% Frame C
2700 - 3000nm OD 6+ 2940nm DI LB3 80% In Stock $0.00

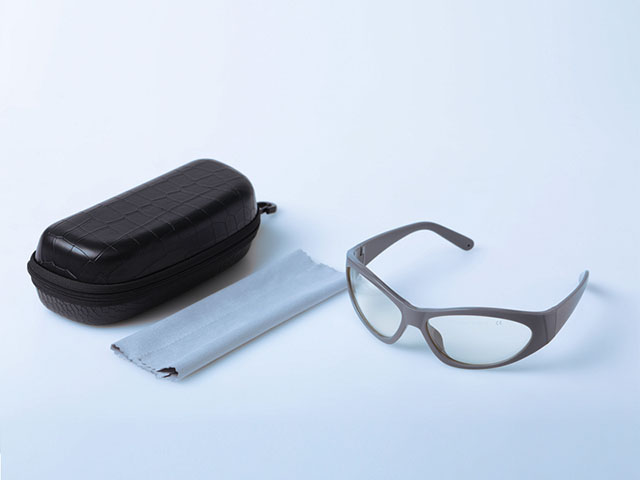

GL15D
Laser Safety Glasses, Visible Light Transmission 80% Frame D
2700 - 3000nm OD 6+ 2940nm DI LB3 In Stock $0.00

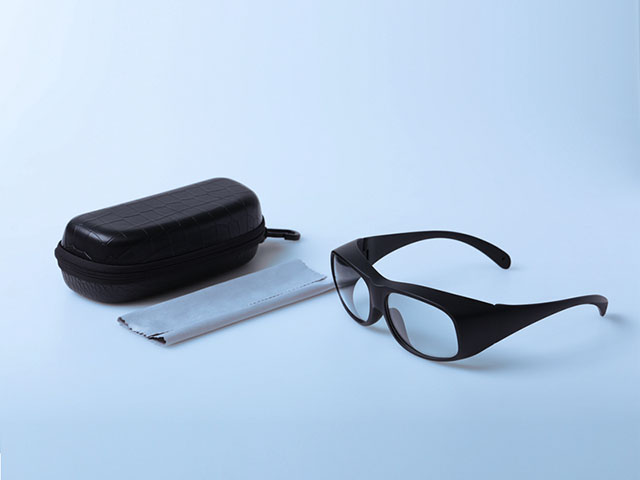

GL16A
Laser Safety Glasses, Visible Light Transmission 90% Frame A
9000 - 11000nm OD 6+ 10600nm DI LB3 90% In Stock $0.00

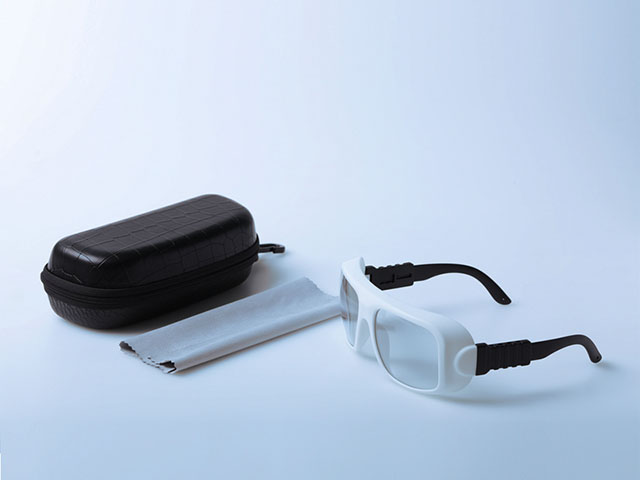

GL16B
Laser Safety Glasses, Visible Light Transmission 90% Frame B
9000 - 11000nm OD 6+ 10600nm DI LB3 90% In Stock $0.00

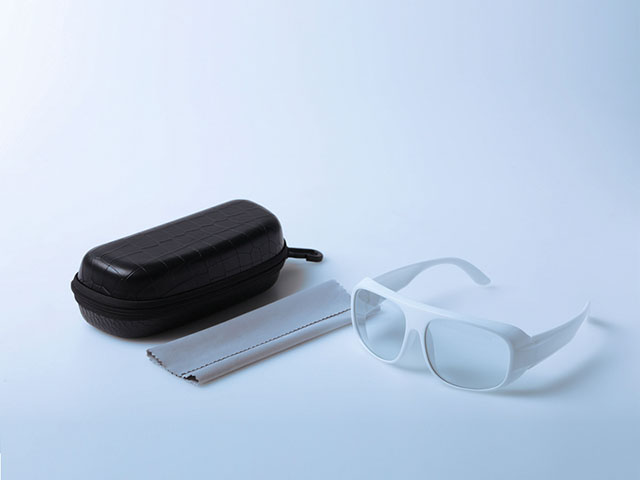

GL16C
Laser Safety Glasses, Visible Light Transmission 90% Frame C
9000 - 11000nm OD 6+ 10600nm DI LB3 90% In Stock $0.00

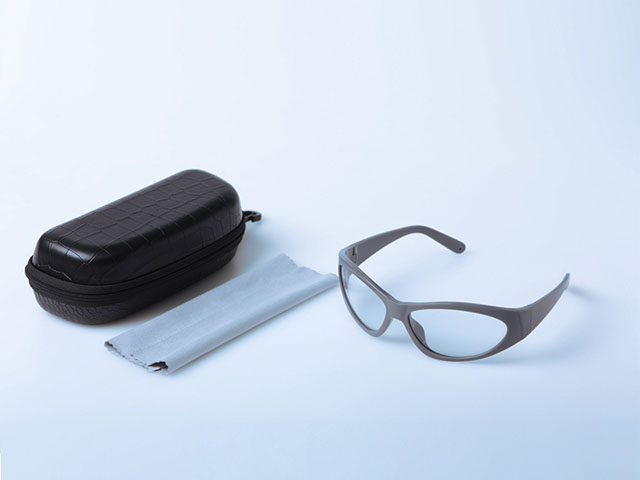

GL16D
Laser Safety Glasses, Visible Light Transmission 90% Frame D
9000 - 11000nm OD 6+ 10600nm DI LB3 90% In Stock $0.00

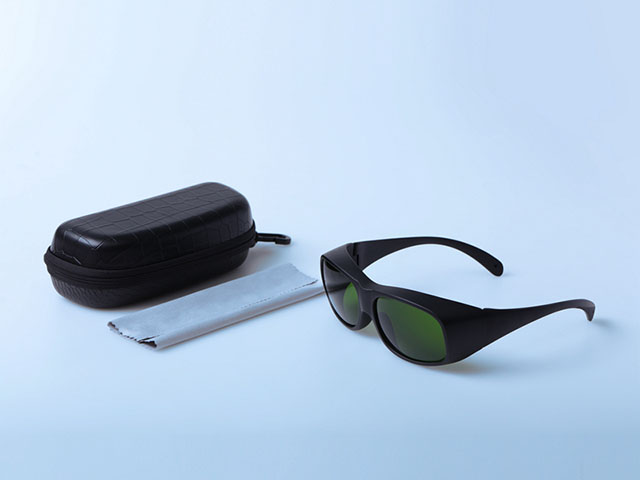

GL17A
Laser Safety Glasses, Visible Light Transmission 10% Frame A
200-1400nm10% In Stock $0.00

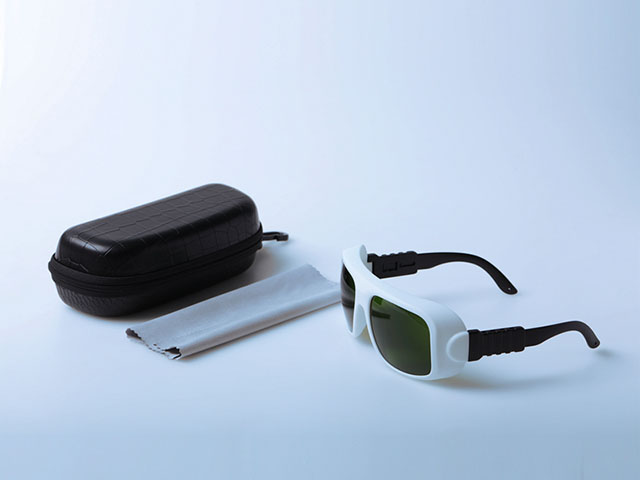

GL17B
Laser Safety Glasses, Visible Light Transmission 10% Frame B
200-1400nm10% In Stock $0.00

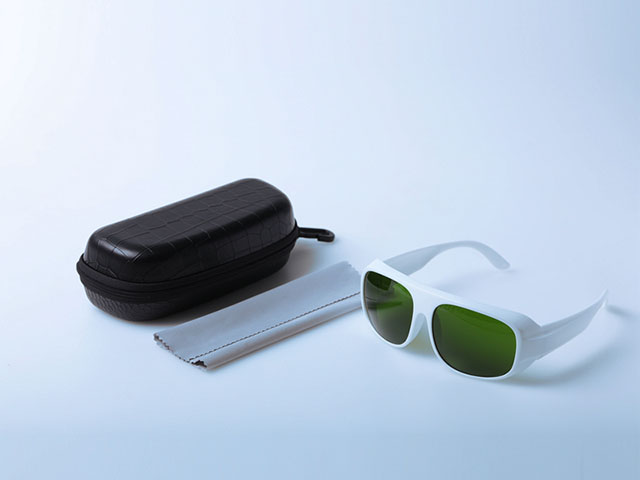

GL17C
Laser Safety Glasses, Visible Light Transmission 10% Frame C
200-1400nm10% In Stock $0.00

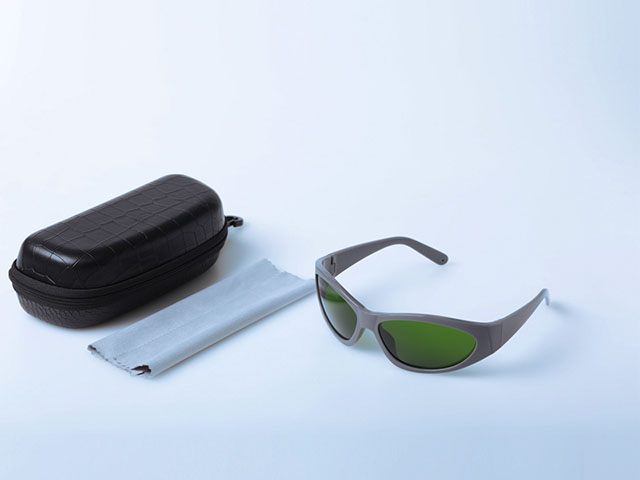

GL17D
Laser Safety Glasses, Visible Light Transmission 10% Frame D
200-1400nm10% In Stock $0.00

GL17D - Parameter

Optical Density
200-1400nm

Frame
D

LB Rating

Transmittance
10%

GL17C - Parameter

Optical Density
200-1400nm

Frame
C

LB Rating

Transmittance
10%

GL17B - Parameter

Optical Density
200-1400nm

Frame
B

LB Rating

Transmittance
10%

GL17A - Parameter

Optical Density
200-1400nm

Frame
A

LB Rating

Transmittance
10%

GL16D - Parameter

Optical Density
9000 - 11000nm OD 6+

Frame
D

LB Rating
10600nm DI LB3

Transmittance
90%

According
CE EN207

GL16C - Parameter

Optical Density
9000 - 11000nm OD 6+

Frame
C

LB Rating
10600nm DI LB3

Transmittance
90%

According
CE EN207

GL16B - Parameter

Optical Density
9000 - 11000nm OD 6+

Frame
B

LB Rating
10600nm DI LB3

Transmittance
90%

According
CE EN207

GL16A - Parameter

Optical Density
9000 - 11000nm OD 6+

Frame
A

LB Rating
10600nm DI LB3

Transmittance
90%

According
CE EN207

GL15D - Parameter

Optical Density
2700 - 3000nm OD 6+

Frame
D

LB Rating
2940nm DI LB3

Transmittance

According
CE EN207

GL15C - Parameter

Optical Density
2700 - 3000nm OD 6+

Frame
C

LB Rating
2940nm DI LB3

Transmittance
80%

According
CE EN207

GL15B - Parameter

Optical Density
2700 - 3000nm OD 6+

Frame
B

LB Rating
2940nm DI LB3

Transmittance
80%

According
CE EN207

GL15A - Parameter

Optical Density
2700 - 3000nm OD 6+

Frame
A

LB Rating
2940nm DI LB3

Transmittance
80%

According
CE EN207

GL14D - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+

Frame
D

LB Rating
800- 1100nmDIR LB5 / 1000 - 1070 IR LB7

Transmittance
60%

According
CE EN207

GL14C - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+

Frame
C

LB Rating
800- 1100nmDIR LB5 / 1000 - 1070 IR LB7

Transmittance
60%

According
CE EN207

GL14B - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+

Frame
B

LB Rating
800- 1100nmDIR LB5 / 1000 - 1070 IR LB7

Transmittance
60%

According
CE EN207

GL14A - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1100nmOD 5+ / 1060 - 1070nmOD 7+

Frame
A

LB Rating
800- 1100nmDIR LB5 / 1000 - 1070 IR LB7

Transmittance
60%

According
CE EN207

GL13D - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+

Frame
D

LB Rating
800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3

Transmittance
40%

According
CE EN207

GL13C - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+

Frame
C

LB Rating
800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3

Transmittance
40%

According
CE EN207

GL13B - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+

Frame
B

LB Rating
800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3

Transmittance
40%

According
CE EN207

GL13A - Parameter

Optical Density
200 - 400nmOD 6+ / 800 - 1700nmOD 4+ / 900 -1100nm OD5+

Frame
A

LB Rating
800- 1400nmDIR LB4 / 1400 - 1700nmDI LB3

Transmittance
40%

According
CE EN207

GL12D - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+

Frame
D

LB Rating
740- 1100nm DIR LB5 / 800 -1070nm IRLB7

Transmittance
40%

According
CE EN207

GL12C - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+

Frame
C

LB Rating
740- 1100nm DIR LB5 / 800 -1070nm IRLB7

Transmittance
40%

According
CE EN207

GL12B - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+

Frame
B

LB Rating
740- 1100nm DIR LB5 / 800 -1070nm IRLB7

Transmittance
40%

According
CE EN207

GL12A - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 1100nmOD 5+ / 780 -1070nm OD7+

Frame
A

LB Rating
740- 1100nm DIR LB5 / 800 -1070nm IRLB7

Transmittance
40%

According
CE EN207

GL11D - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+

Frame
D

LB Rating
740- 850nmDIR LB5 / 780 -830nm DIR LB6

Transmittance
45%

According
CE EN207

GL11C - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+

Frame
C

LB Rating
740- 850nmDIR LB5 / 780 -830nm DIR LB6

Transmittance
45%

According
CE EN207

GL11B - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+

Frame
B

LB Rating
740- 850nmDIR LB5 / 780 -830nm DIR LB6

Transmittance
45%

According
CE EN207

GL11A - Parameter

Optical Density
200 - 400nmOD 6+ / 740 - 850nmOD 5+ / 780 -830nm OD 6+

Frame
A

LB Rating
740- 850nmDIR LB5 / 780 -830nm DIR LB6

Transmittance
45%

According
CE EN207

GL10D - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+

Frame
D

LB Rating
630 - 660nm DIR LB4 / 800 -1100nm DIR LB5

Transmittance
20%

According
CE EN207

GL10C - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+

Frame
C

LB Rating
630 - 660nm DIR LB4 / 800 -1100nm DIR LB5

Transmittance
20%

According
CE EN207

GL10B - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+

Frame
B

LB Rating
630 - 660nm DIR LB4 / 800 -1100nm DIR LB5

Transmittance
20%

According
CE EN207

GL10A - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 4+ / 800 -1100nm OD5+

Frame
A

LB Rating
630 - 660nm DIR LB4 / 800 -1100nm DIR LB5

Transmittance
20%

According
CE EN207

GL9D - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+

Frame
D

LB Rating
630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5

Transmittance
37%

According
CE EN207

GL9C - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+

Frame
C

LB Rating
630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5

Transmittance
37%

According
CE EN207

GL9B - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+

Frame
B

LB Rating
630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5

Transmittance
37%

According
CE EN207

GL9A - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD 3+ / 900 -1100nm OD5+

Frame
A

LB Rating
630- 660nm DIR LB3 / 800 -830nm DIR LB3 / 900 -1100nm DIR LB5

Transmittance
37%

According
CE EN207

GL8D - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+

Frame
D

LB Rating
630- 660nm DIR LB2 / 800 -1100nm DIR LB5

Transmittance
35%

According
CE EN207

GL8C - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+

Frame
C

LB Rating
630- 660nm DIR LB2 / 800 -1100nm DIR LB5

Transmittance
35%

According
CE EN207

GL8B - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+

Frame
B

LB Rating
630- 660nm DIR LB2 / 800 -1100nm DIR LB5

Transmittance
35%

According
CE EN207

GL8A - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 2+ / 800 -1100nm OD5+

Frame
A

LB Rating
630- 660nm DIR LB2 / 800 -1100nm DIR LB5

Transmittance
35%

According
CE EN207

GL7D - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+

Frame
D

LB Rating
630 - 660nm DIR LB3 / 800 -830nm DIR LB5

Transmittance
30%

According
CE EN207

GL7C - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+

Frame
C

LB Rating
630 - 660nm DIR LB3 / 800 -830nm DIR LB5

Transmittance
30%

According
CE EN207

GL7B - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+

Frame
B

LB Rating
630 - 660nm DIR LB3 / 800 -830nm DIR LB5

Transmittance
30%

According
CE EN207

GL7A - Parameter

Optical Density
200 - 400nmOD 6+ / 630 - 660nmOD 3+ / 800 -830nm OD5+

Frame
A

LB Rating
630 - 660nm DIR LB3 / 800 -830nm DIR LB5

Transmittance
30%

According
CE EN207

GL6D - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 6+

Frame
D

LB Rating
620 - 700nmDIR LB5

Transmittance
30%

According
CE EN207

GL6C - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 6+

Frame
C

LB Rating
620 - 700nmDIR LB5

Transmittance
30%

According
CE EN207

GL6B - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 6+

Frame
B

LB Rating
620 - 700nmDIR LB5

Transmittance
30%

According
CE EN207

GL6A - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 6+

Frame
A

LB Rating
620 - 700nmDIR LB5

Transmittance
30%

According
CE EN207

GL5D - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 4+

Frame
D

LB Rating
620 - 700nmDIR LB4

Transmittance
50%

According
CE EN207

GL5C - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 4+

Frame
C

LB Rating
620 - 700nmDIR LB4

Transmittance
50%

According
CE EN207

GL5B - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 4+

Frame
B

LB Rating
620 - 700nmDIR LB4

Transmittance
50%

According
CE EN207

GL5A - Parameter

Optical Density
200 - 400nmOD 6+ / 600 - 700nmOD 4+

Frame
A

LB Rating
620 - 700nmDIR LB4

Transmittance
50%

According
CE EN207

GL4D - Parameter

Optical Density
585 - 595nm OD 4+

Frame
D

LB Rating
585 - 595nmDIR LB4

Transmittance
30%

According
CE EN207

GL4C - Parameter

Optical Density
585 - 595nm OD 4+

Frame
C

LB Rating
585 - 595nmDIR LB4

Transmittance
30%

According
CE EN207

GL4B - Parameter

Optical Density
585 - 595nm OD 4+

Frame
B

LB Rating
585 - 595nmDIR LB4

Transmittance
30%

According
CE EN207

GL4A - Parameter

Optical Density
585 - 595nm OD 4+

Frame
A

LB Rating
585 - 595nmDIR LB4

Transmittance
30%

According
CE EN207

GL3D - Parameter

Optical Density
200 - 540nmOD 6+ / 900 -1100nm OD5+

Frame
D

LB Rating
315- 540nm DIRM LB5 / 900 -1070nm DIR LB5

Transmittance
30%

According
CE EN207

GL3C - Parameter

Optical Density
200 - 540nmOD 6+ / 900 -1100nm OD5+

Frame
C

LB Rating
315- 540nm DIRM LB5 / 900 -1070nm DIR LB5

Transmittance
30%

According
CE EN207

GL3B - Parameter

Optical Density
200 - 540nmOD 6+ / 900 -1100nm OD5+

Frame
B

LB Rating
315- 540nm DIRM LB5 / 900 -1070nm DIR LB5

Transmittance
30%

According
CE EN207

GL3A - Parameter

Optical Density
200 - 540nmOD 6+ / 900 -1100nm OD5+

Frame
A

LB Rating
315- 540nm DIRM LB5 / 900 -1070nm DIR LB5

Transmittance
30%

According
CE EN207

GL2D - Parameter

Optical Density
200 - 540nm OD 7+

Frame
D

LB Rating
315- 540nmDIRM LB6

Transmittance
30%

According
CE EN207

GL2C - Parameter

Optical Density
200 - 540nm OD 7+

Frame
C

LB Rating
315- 540nmDIRM LB6

Transmittance
30%

According
CE EN207

GL2B - Parameter

Optical Density
200 - 540nm OD 7+

Frame
B

LB Rating
315- 540nmDIRM LB6

Transmittance
30%

According
CE EN207

GL2A - Parameter

Optical Density
200 - 540nm OD 7+

Frame
A

LB Rating
315- 540nmDIRM LB6

Transmittance
30%

According
CE EN207

GL1D - Parameter

Optical Density
200 -540nm OD 5+

Frame
D

LB Rating
315 - 540nmDIRM LB5

Transmittance
50%

According
CE EN207

GL1C - Parameter

Optical Density
200 -540nm OD 5+

Frame
C

LB Rating
315 - 540nmDIRM LB5

Transmittance
50%

According
CE EN207

GL1B - Parameter

Optical Density
200 -540nm OD 5+

Frame
B

LB Rating
315 - 540nmDIRM LB5

Transmittance
50%

According
CE EN207

GL1A - Parameter

Optical Density
200 -540nm OD 5+

Frame
A

LB Rating
315 - 540nmDIRM LB5

Transmittance
50%

According
CE EN207

GL17D - Download

GL17C - Download

GL17B - Download

GL17A - Download

GL16D - Download

GL16C - Download

GL16B - Download

GL16A - Download

GL15D - Download

GL15C - Download

GL15B - Download

GL15A - Download

GL14D - Download

GL14C - Download

GL14B - Download

GL14A - Download

GL13D - Download

GL13C - Download

GL13B - Download

GL13A - Download

GL12D - Download

GL12C - Download

GL12B - Download

GL12A - Download

GL11D - Download

GL11C - Download

GL11B - Download

GL11A - Download

GL10D - Download

GL10C - Download

GL10B - Download

GL10A - Download

GL9D - Download

GL9C - Download

GL9B - Download

GL9A - Download

GL8D - Download

GL8C - Download

GL8B - Download

GL8A - Download

GL7D - Download

GL7C - Download

GL7B - Download

GL7A - Download

GL6D - Download

GL6C - Download

GL6B - Download

GL6A - Download

GL5D - Download

GL5C - Download

GL5B - Download

GL5A - Download

GL4D - Download

GL4C - Download

GL4B - Download

GL4A - Download

GL3D - Download

GL3C - Download

GL3B - Download

GL3A - Download

GL2D - Download

GL2C - Download

GL2B - Download

GL2A - Download

GL1D - Download

GL1C - Download

GL1B - Download

GL1A - Download

Accessories

Motorized Actuator Adapters

Compare Model Drawings & Specs Availability Price
