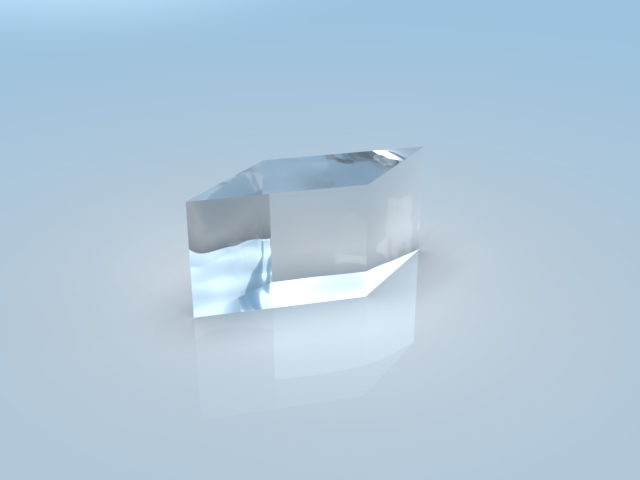

Rhomboid Prism

Overview Graphics Calculator Demo

General Specifications
Shape	Rhomboid Prism
Material	BK7
Coating	Uncoated
Dimensional Tolerance(mm)	±0.2
Beam Deviation(arcsec)	<30
Angle Tolerance(mm)	±0.1
Flatness	λ/4@633nm
Surface Quality	40/20
Clear Aperture	>90%

Notes:

Dimension C (mm)

Dimension A (mm)

Search Reset

Compare	Model		Drawings & Specs	Angle Tolerance	Dimension A (mm)	Dimension C (mm)	Thickness B (mm)	Availability	Price
		BK7-RBP-5-5-7.1-U BK7, Rhomboid Prism, A=5mm, B=5mm, C=7.1mm, Uncoated		<5 arcsec	5	7.1	5	In Stock	$70.00
		BK7-RBP-10-10-14.1-U BK7, Rhomboid Prism, A=10mm, B=10mm, C=14.1mm, Uncoated		<5 arcsec	10	14.1	10	In Stock	$70.00
		BK7-RBP-12.7-12.7-18-U BK7, Rhomboid Prism, A=12.7mm, B=12.7mm, C=18mm, Uncoated		<5 arcsec	12.7	18	12.7	In Stock	$75.00
		BK7-RBP-20-20-28.3-U BK7, Rhomboid Prism, A=20mm, B=20mm, C=28.3mm, Uncoated		<5 arcsec	20	28.3	20	In Stock	$112.50
		BK7-RBP-25.4-25.4-35.9-U BK7, Rhomboid Prism, A=25.4mm, B=25.4mm, C=35.9mm, Uncoated		<5 arcsec	25.4	35.9	25.4	In Stock	$137.50
		BK7-RBP-3.5-5-7.1-U BK7, Rhomboid Prism, A=3.5mm, B=5mm, C=7.1mm, Uncoated		<5 arcsec	3.5	7.1	5	In Stock	$70.00
		BK7-RBP-7.1-10-14.1-U BK7, Rhomboid Prism, A=7.1mm, B=10mm, C=14.1mm, Uncoated		<5 arcsec	7.1	14.1	10	In Stock	$70.00
		BK7-RBP-9-12.7-18-U BK7, Rhomboid Prism, A=9mm, B=12.7mm, C=18mm, Uncoated		<5 arcsec	9	18	12.7	In Stock	$70.00
		BK7-RBP-14.1-20-28.3-U BK7, Rhomboid Prism, A=14.1mm, B=20mm, C=28.3mm, Uncoated		<5 arcsec	14.1	28.3	20	In Stock	$112.50
		BK7-RBP-18-25.4-35.9-U BK7, Rhomboid Prism, A=18mm, B=25.4mm, C=35.9mm, Uncoated		<5 arcsec	18	35.9	25.4	In Stock	$137.50

BK7-RBP-18-25.4-35.9-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

18

Dimension C (mm)

35.9

Thickness B (mm)

25.4

BK7-RBP-14.1-20-28.3-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

14.1

Dimension C (mm)

28.3

Thickness B (mm)

20

BK7-RBP-9-12.7-18-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

9

Dimension C (mm)

18

Thickness B (mm)

12.7

BK7-RBP-7.1-10-14.1-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

7.1

Dimension C (mm)

14.1

Thickness B (mm)

10

BK7-RBP-3.5-5-7.1-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

3.5

Dimension C (mm)

7.1

Thickness B (mm)

5

BK7-RBP-25.4-25.4-35.9-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

25.4

Dimension C (mm)

35.9

Thickness B (mm)

25.4

BK7-RBP-20-20-28.3-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

20

Dimension C (mm)

28.3

Thickness B (mm)

20

BK7-RBP-12.7-12.7-18-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

12.7

Dimension C (mm)

18

Thickness B (mm)

12.7

BK7-RBP-10-10-14.1-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

10

Dimension C (mm)

14.1

Thickness B (mm)

10

BK7-RBP-5-5-7.1-U - Parameter

Type

Rhomboid Prism

Material

BK7

Coating

Uncoated

Surface Quality

40/20

Clear Aperture

>90%

Dimensional Tolerance (mm)

± 0.2

Flatness

<4λ@633nm

Beam Deviation (arcsec)

<30

Angle Tolerance

<5 arcsec

Dimension A (mm)

5

Dimension C (mm)

7.1

Thickness B (mm)

5

BK7-RBP-18-25.4-35.9-U - Download

BK7-RBP-14.1-20-28.3-U - Download

BK7-RBP-9-12.7-18-U - Download

BK7-RBP-7.1-10-14.1-U - Download

BK7-RBP-3.5-5-7.1-U - Download

BK7-RBP-25.4-25.4-35.9-U - Download

BK7-RBP-20-20-28.3-U - Download

BK7-RBP-12.7-12.7-18-U - Download

BK7-RBP-10-10-14.1-U - Download

BK7-RBP-5-5-7.1-U - Download
